Product Overview
The 3 Ply Corrugated Cardboard Production Line, also known as a 3 Layer Corrugated Board Production Line or Single Wall Corrugator Line, is designed for the continuous production of 3-ply corrugated board.
A standard 3-ply corrugated board consists of one outer liner, one corrugated medium, and one inner liner. It is widely used for manufacturing corrugated cartons for food, beverages, consumer goods, e-commerce packaging, and many other applications.
The production line integrates paper feeding, preheating, corrugating, gluing, laminating, drying, slitting, cross cutting, and stacking into one continuous process. Different configurations are available to meet various production capacities, board specifications, and automation requirements.
According to production speed and customer requirements, the line can be configured as ordinary, medium-speed, or high-speed models with working widths ranging from 1400 mm to 2500 mm.
Key Features
- The production line is designed for continuous manufacturing of 3-ply corrugated board, helping improve production efficiency and maintain stable board quality.
- Working widths from 1400 mm to 2500 mm are available to suit different production requirements and factory layouts.
- The line can be configured as ordinary, medium-speed, or high-speed models depending on the required production capacity.
- The production line can produce various flute types, including A, B, C, and E flute, depending on the selected corrugating rolls.
- Each production line can be configured according to customer requirements, including different paper stands, single facers, heating systems, slitter scorers, cut-off machines, and stackers.
- The production process can be controlled through an integrated control system, helping coordinate each section of the production line.
- The conveying system transports corrugated board smoothly between different production sections to maintain stable operation.
- The line is designed for continuous production under normal operating conditions, making it suitable for board plants and carton manufacturers.

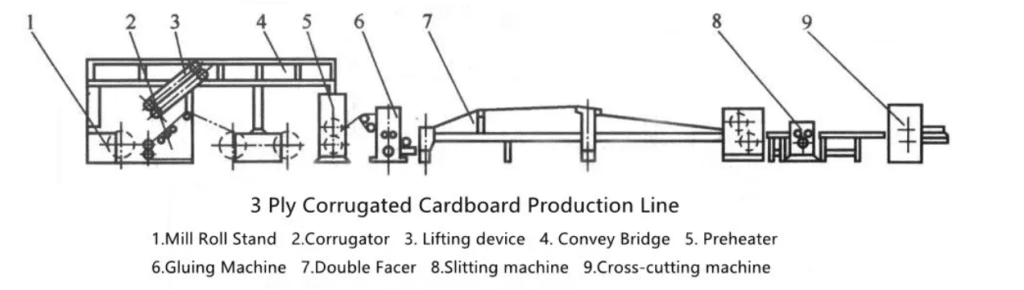

Main Configuration
A typical 3 Ply Corrugated Cardboard Production Line may include the following equipment:
| Equipment | Function |
|---|---|
| Mill Roll Stand | Supports and unwinds paper rolls |
| Preheater | Preheats liner paper and medium paper |
| Single Facer | Forms the corrugated flute and bonds the first liner |
| Bridge Conveyor | Transfers single-face corrugated board |
| Glue Machine | Applies adhesive before laminating |
| Double Facer | Bonds the second liner to form 3-ply board |
| NC Thin Blade Slitter Scorer | Slits and scores the board |
| NC Cut Off Machine | Cuts the board into preset sheet lengths |
| Stacker | Collects and stacks finished sheets |
The final configuration may vary according to customer requirements.
Technical Parameters
Working Width:
1400mm, 1600mm, 1800mm, 2000mm, 2200mm, 2500mm (optional)
Design Speed:
– Ordinary type: 60–100 m/min
– Medium-speed type: 120–150 m/min
– High-speed type: 180–250 m/min
Base Paper Specifications:
– Face paper & inner paper: 100–250 g/m²
– Corrugated medium: 80–180 g/m²
Air Supply Pressure: ≥ 0.5 MPa
Steam Supply Pressure: 0.8–1.3 MPa
Power Consumption: Approximately 200–350 kW (varies by configuration)
Floor Space: Approximately 45–80 meters in length (varies by machine type)
Supported Flute Types
The 3 ply corrugated cardboard production line can be configured to produce different flute profiles according to market requirements.
A Flute
Provides good cushioning performance and is commonly used for protective packaging.
B Flute
Offers a relatively flat surface and is suitable for cartons requiring good printing quality.
C Flute
Balances compression strength and cushioning performance, making it one of the most commonly used flute types.
E Flute
Features a thinner profile and is often used for retail packaging, printed cartons, and lightweight packaging.
Suitable Materials
The production line is suitable for processing various paper grades used in corrugated board manufacturing, including:
- Kraft liner paper
- Test liner
- White top liner
- Corrugating medium paper
- Recycled paper (depending on production requirements)
Paper specifications should be selected according to the required board strength and product application.
Applications
The 3 Ply Corrugated Board Production Line is suitable for manufacturers producing single-wall corrugated board for a wide range of packaging applications.
Typical users include:
- Corrugated board plants
- Carton box manufacturers
- Packaging companies
- Printing and packaging factories
Typical products include:
- Fruit boxes
- Vegetable cartons
- Pizza boxes
- Beverage cartons
- Food packaging cartons
- E-commerce shipping boxes
- Consumer goods packaging
- Electronic product cartons
- General corrugated packaging
The actual board specification should be selected according to the required product strength and transportation conditions.
Working Process
The production process typically includes the following steps:
- Paper rolls are loaded onto the mill roll stand.
- The liner paper and medium paper are preheated.
- The single facer forms the corrugated flute and bonds the first liner.
- The board passes through the bridge conveyor.
- Adhesive is applied before laminating.
- The double facer bonds the second liner to produce 3-ply corrugated board.
- The board is slit and scored to the required dimensions.
- The NC cut-off machine cuts the board into preset sheet lengths.
- Finished sheets are stacked for the next converting process.
Why Choose This 3 ply Corrugated Cardboard Production Line
This production line provides a practical solution for manufacturers producing 3-ply corrugated board.
Features include:
- Continuous board production
- Configurable working widths
- Multiple production speed options
- Support for different flute profiles
- Flexible machine configuration
- Stable production process
- Suitable for different production capacities
Machine configuration can be customized according to customer requirements, available workshop space, and production targets.
Recommended Industries
This production line is commonly used by:
- Corrugated board manufacturers
- Carton box factories
- Food packaging manufacturers
- Beverage packaging companies
- Consumer goods packaging manufacturers
- Agricultural packaging suppliers
- E-commerce packaging manufacturers
Frequently Asked Questions
What is a 3 Ply Corrugated Board Production Line?
It is a production line used to manufacture 3-ply corrugated board consisting of one outer liner, one corrugated medium, and one inner liner.
What flute types can the line produce?
The line can be configured to produce A, B, C, or E flute corrugated board, depending on the corrugating rolls installed.
What working widths are available?
Standard working widths range from 1400 mm to 2500 mm. Other configurations can be discussed according to production requirements.
Can the production speed be customized?
Yes. Ordinary, medium-speed, and high-speed configurations are available according to production capacity requirements.
What paper materials can be used?
The production line can process various liner papers and corrugating medium papers commonly used in corrugated board manufacturing.
Is the machine configuration customizable?
Yes. The production line can be configured according to production speed, working width, flute type, factory layout, and automation requirements.
Do you provide installation and technical support?
Yes. We provide installation guidance, commissioning support, operator training, and after-sales technical service.
