Product Overview

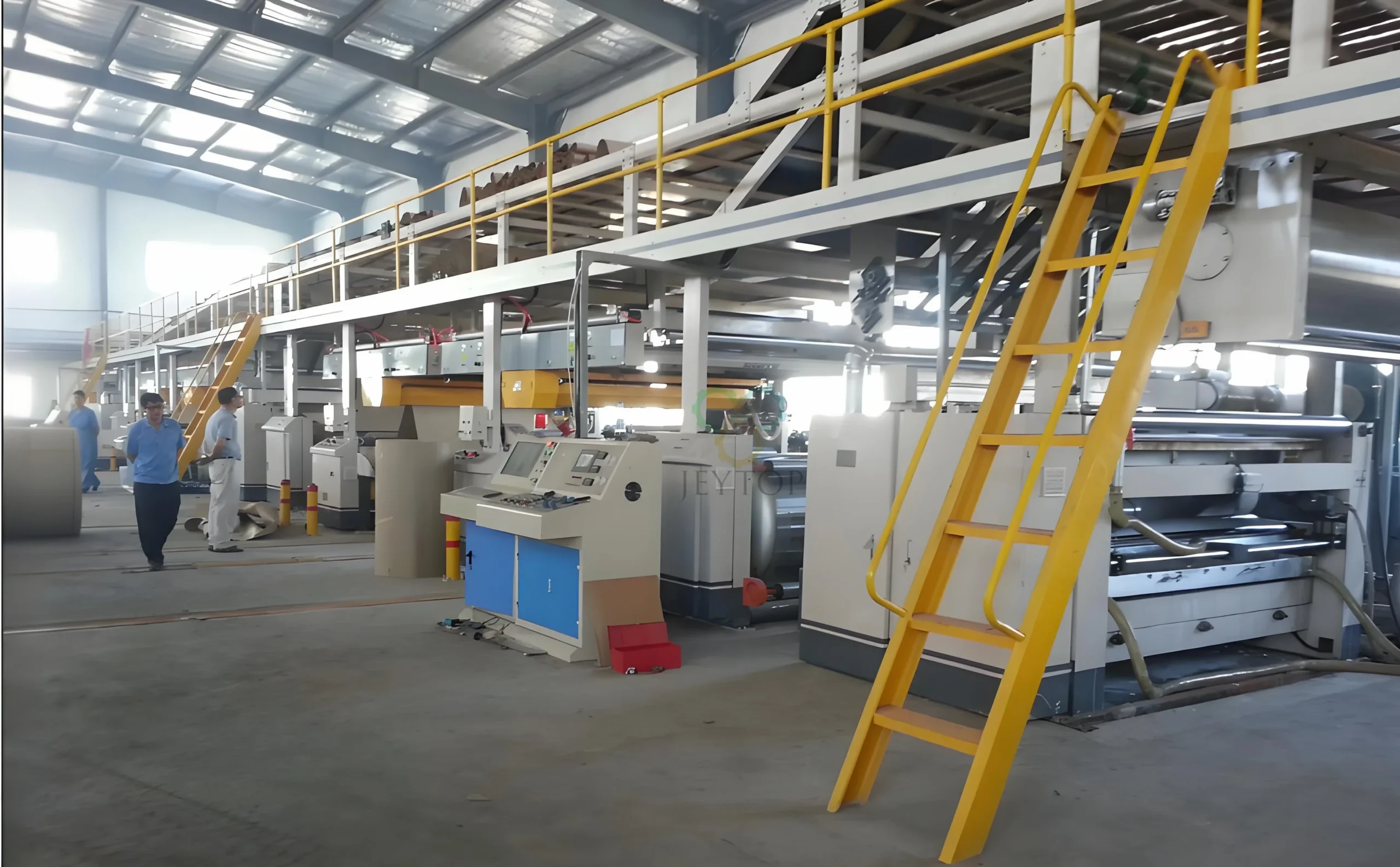

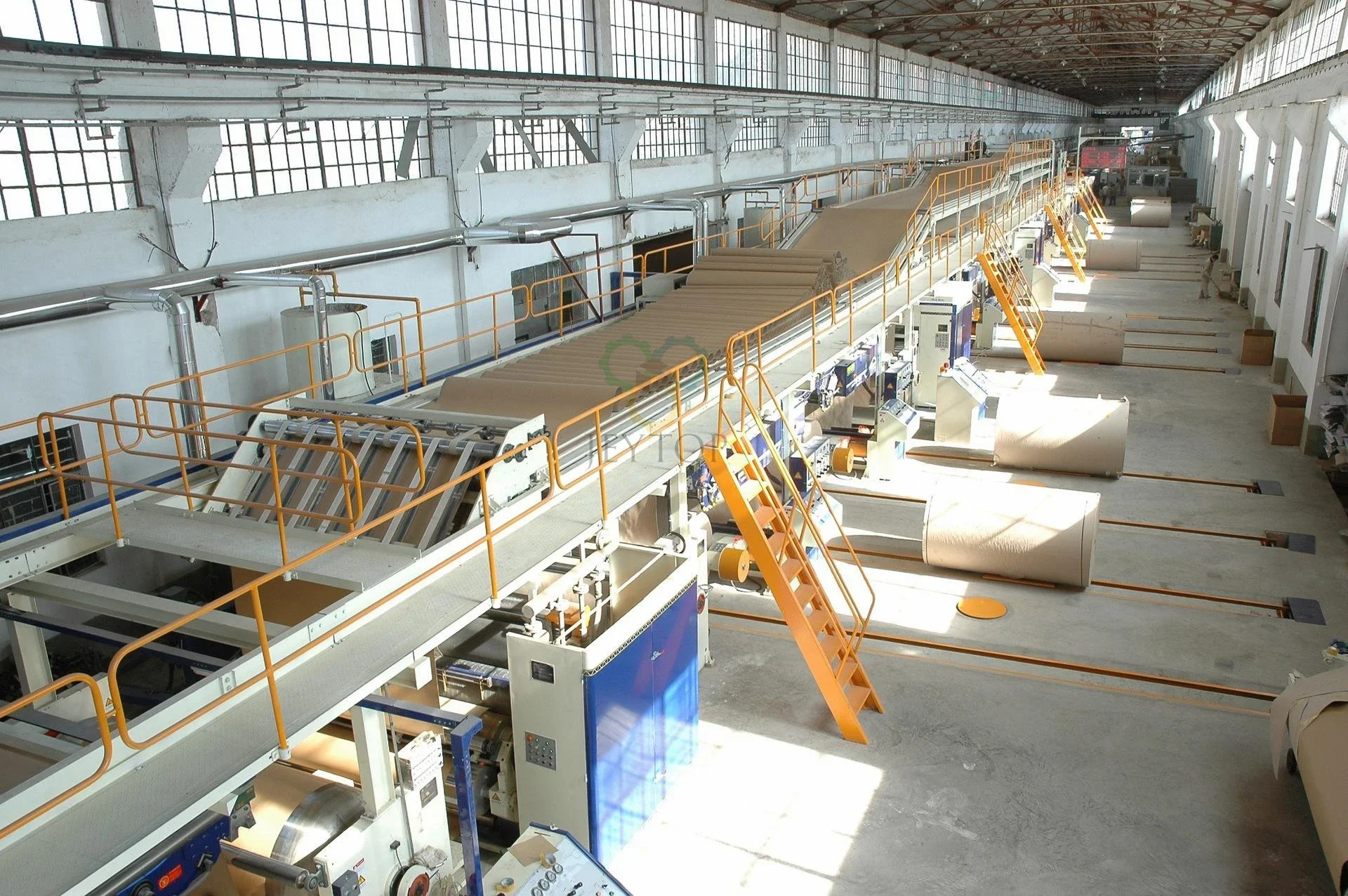

The Overhead Corrugator Bridge is an auxiliary section of a corrugated board production line. It is designed to convey single-faced corrugated board smoothly and maintain stable board movement during the production process.
The equipment consists of a steel frame structure, lifting belt system, conveyor belt system, vacuum adsorption device, and width adjustment mechanism. It provides stable transportation and adjustable conveying conditions according to different corrugated board production requirements.
Key Features
- The bridge frame is constructed with heavy-duty steel profiles to provide a stable supporting structure for the complete equipment.
- The paper lifting system adopts a PVC conveyor belt for lifting and transferring single-faced corrugated board smoothly.
- The paperboard conveying section uses a rubber conveyor belt to provide stable transportation of single-faced corrugated board.
- The vacuum adsorption system is equipped with a variable frequency fan, allowing adjustment of suction airflow according to operating requirements.
- The paper width adjustment system adopts a reducer structure to adjust the conveying width according to different board specifications.
- The lifting system uses a variable frequency motor to provide stable power and flexible operation control.
- The conveyor rollers, lifting rollers, and guide rollers are manufactured from seamless steel pipes to ensure smooth board transportation.
- The equipment adopts a heavy-duty steel structure and modular design for convenient integration into different corrugated board production lines.
Structural Composition
The Overhead Corrugator Bridge mainly consists of the following components:
| Main Parts | Description |
|---|---|
| Bridge Main Frame | Constructed with channel steel, I-beam steel, angle steel, and square steel profiles to provide a stable supporting structure. |
| Guardrail | Steel pipe guardrail used for operator safety during equipment operation and maintenance. |
| Paper Lifting Belt | PVC conveyor belt used for lifting and transferring single-faced corrugated board. |
| Paperboard Conveyor Belt | Rubber conveyor belt used for stable transportation of single-faced corrugated board. |
| Variable Frequency Vacuum Fan | Provides adjustable suction airflow for the vacuum adsorption system. |
| Inverter | Controls motor speed adjustment according to operating requirements. |
| Paper Width Adjustment Reducer | Used for adjusting conveying width according to different board specifications. |
| Paper Lifting Motor | Variable frequency motor providing power for lifting operation. |
| Conveyor Rollers | Includes conveyor rollers, lifting rollers, and guide rollers for smooth board transportation. |
| Bearings and Bearing Housings | Support roller operation and maintain stable rotation. |
| Electrical Control Components | Includes contactors, buttons, and related electrical components for equipment operation control. |
Technical Parameters
| Item | Specification |
| Applicable Web Type | Single-faced corrugated board (flute A, B, C, E, F) |
| Max. Web Width | 1800–2500 mm (customizable) |
| Conveying Method | High-strength PVC belt |
| Drive System | Independent frequency-controlled motor (VFD) |
| Tension Control | Vacuum suction tension control with 5-inch air pipe and stepless adjustable damper |
| Roller Surface | Precision ground and hard chrome-plated |
| Alignment System | 2 sets of electric web guide units with double-guide pillars and screw drive positioning |
| Alignment Range | ±75 mm (typical) |
| Max. Conveying Speed | 150–250 m/min (depending on line configuration) |
| Bridge Structure Height | Typically 2.5–4 meters above ground (adjustable) |
| Safety Access | Walkway with anti-slip grating and handrails |
| Control Mode | Integrated with main corrugator PLC / touch screen optional |
| Installation Type | Floor-mounted steel frame with anchor bolts |
| Optional Features | Web break detection, splice detection, web storage loop |
Suitable Materials
Suitable for conveying:
- Single-faced Corrugated Board
Applications
The Overhead Corrugator Bridge is suitable for:
- Corrugated Board Plants
- Carton Manufacturing Factories
- Packaging Companies
- Paper Packaging Manufacturers
It is used for conveying single-faced corrugated board during corrugated board production.
Working Process
Single-faced Corrugated Board Feeding
↓
Paper Lifting
↓
Board Conveying
↓
Width Adjustment
↓
Vacuum Adsorption Control
↓
Continuous Transfer
Why Choose This Machine
- Heavy-duty steel frame structure
- PVC lifting belt for stable board transfer
- Rubber conveyor belt for continuous conveying
- Variable frequency vacuum fan for adjustable suction control
- Width adjustment system for different board specifications
- Stable roller conveying structure
- Variable frequency motor control
FAQ
What is an Overhead Corrugator Bridge?
An Overhead Corrugator Bridge is auxiliary equipment used in corrugated board production lines to convey single-faced corrugated board during production.
What material does the bridge convey?
The bridge is designed to convey single-faced corrugated board, not raw paper materials such as kraft liner or corrugating medium.
What is the function of the vacuum adsorption fan?
The vacuum adsorption fan provides adjustable suction airflow to support stable board conveying.
What type of belt is used on the bridge?
The equipment uses a PVC conveyor belt for paper lifting and a rubber conveyor belt for board conveying.
What are the main structural components of the bridge?
The main components include the steel frame, lifting belt, conveyor belt, vacuum fan, adjustment mechanism, rollers, bearings, and electrical control components.
