Product Overview

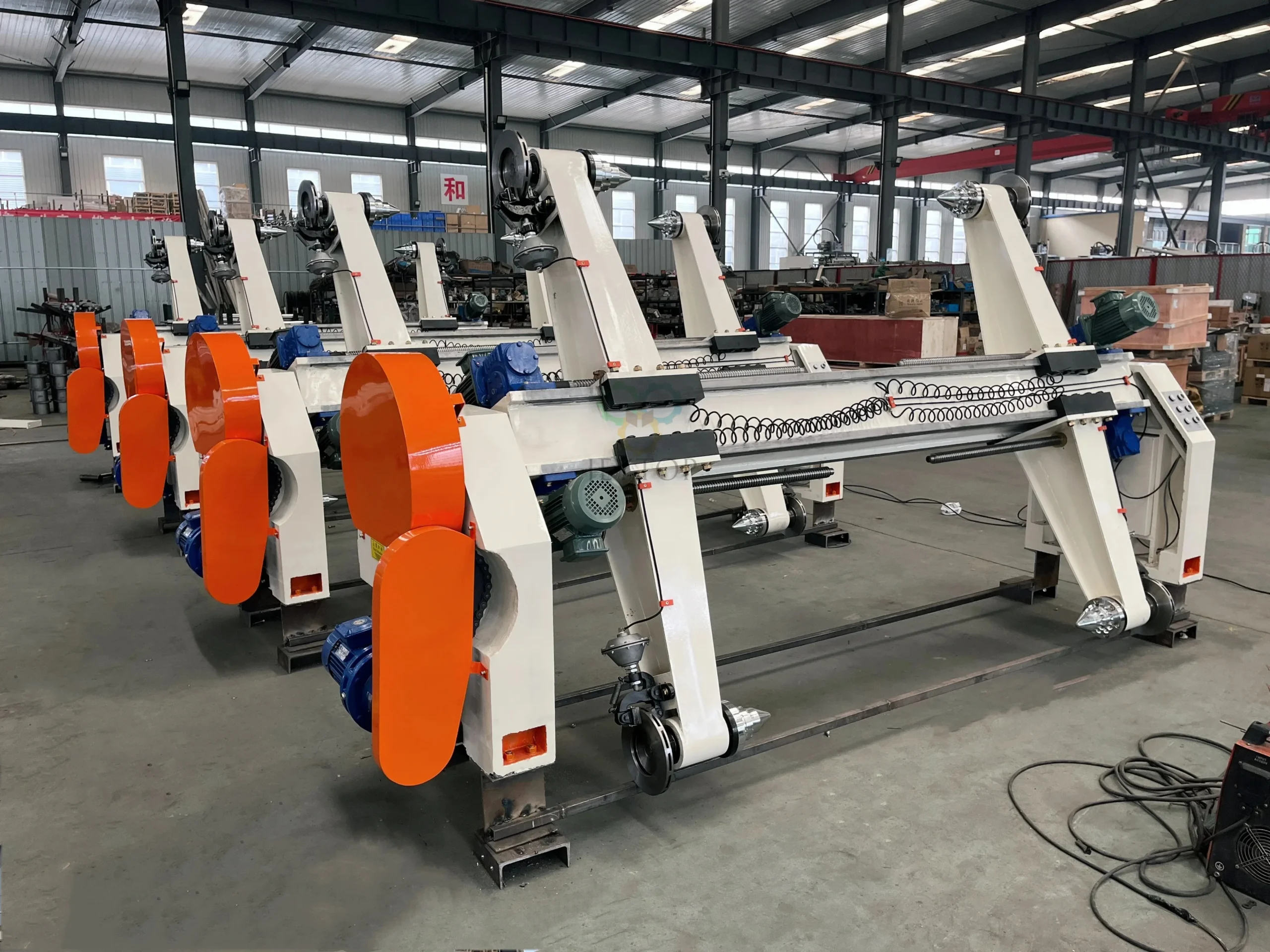

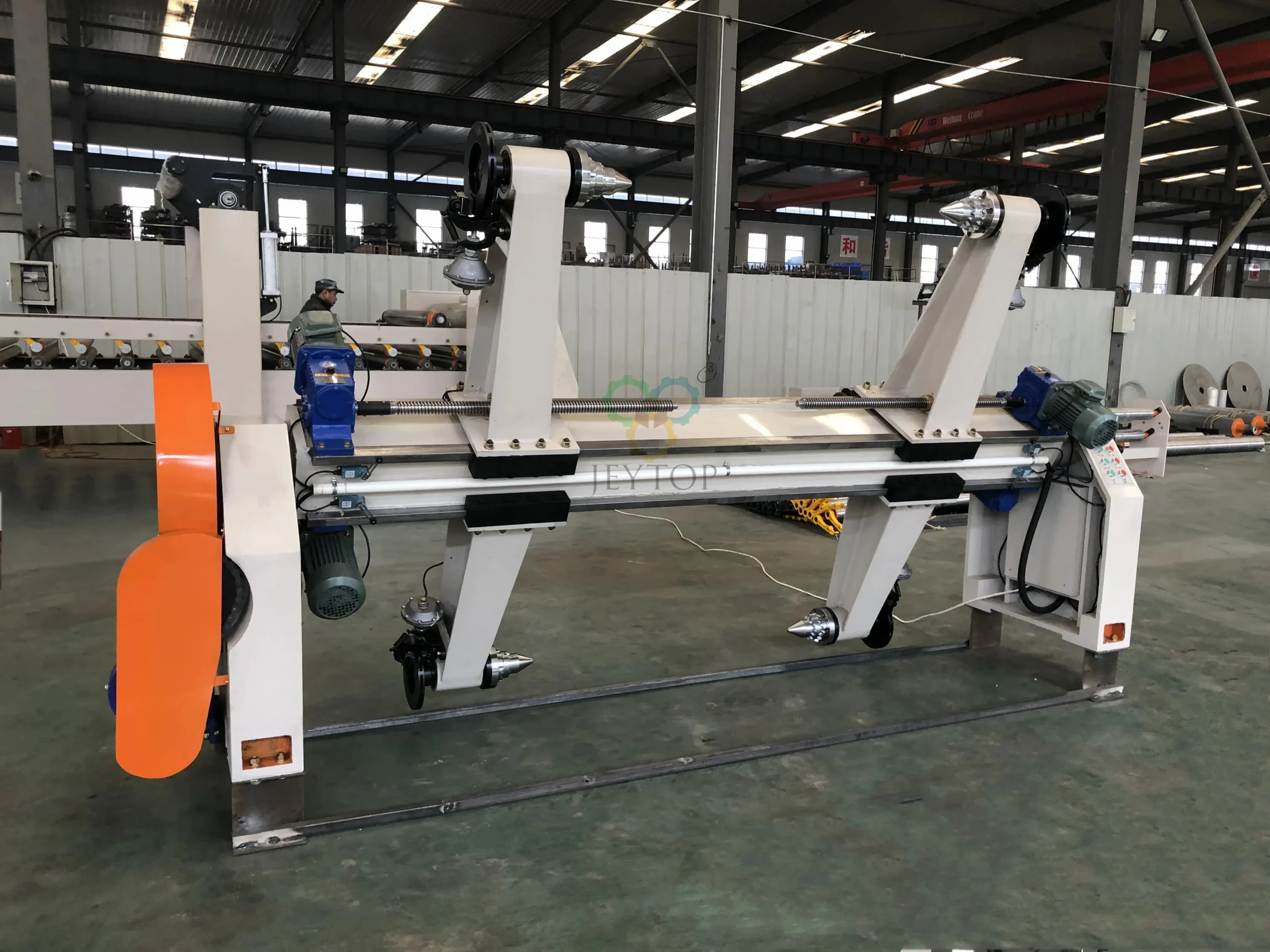

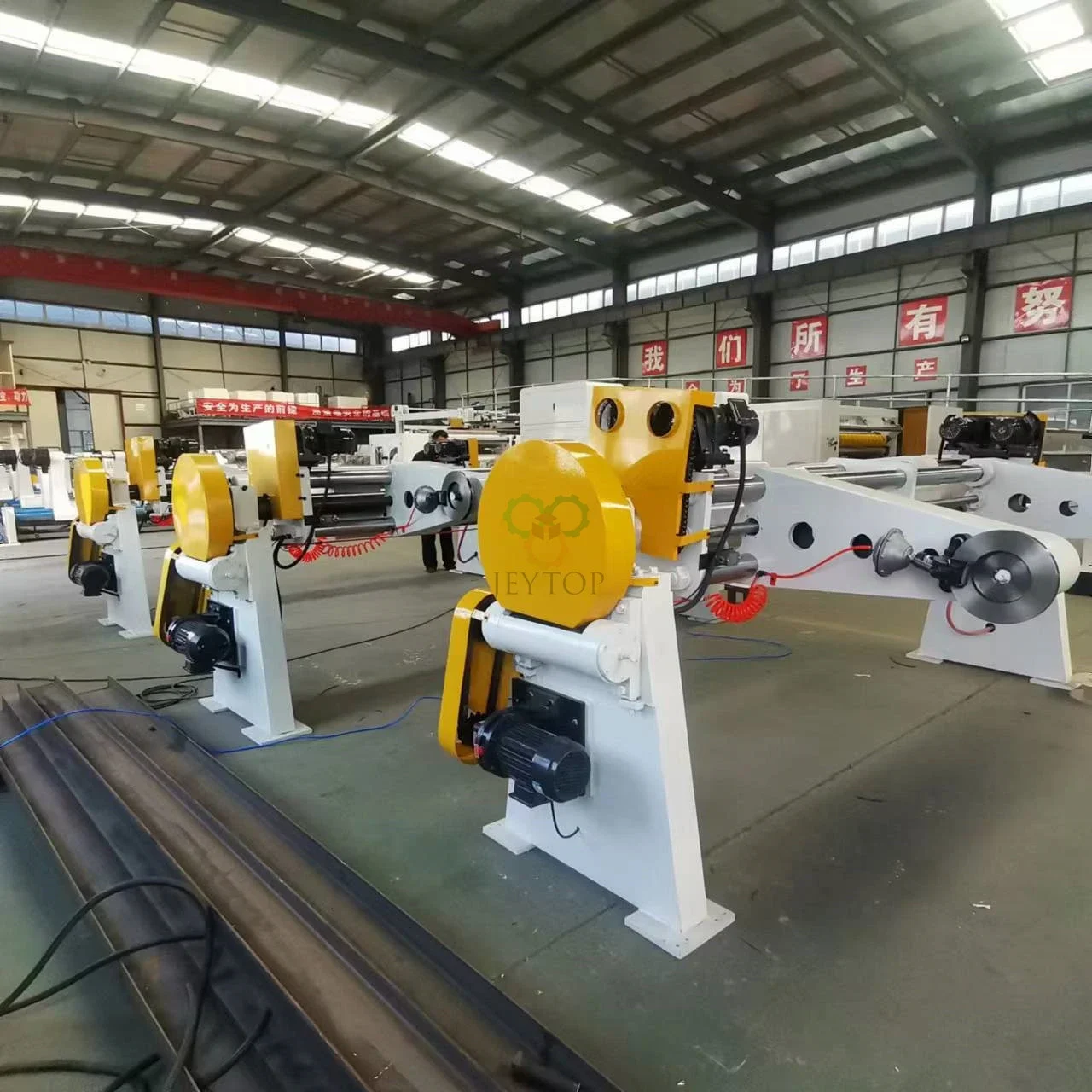

The Electrical Shaftless Mill Roll Stand is installed at the beginning of a corrugated cardboard production line to support and unwind base paper rolls. Its shaftless design allows convenient paper loading and replacement while maintaining stable paper feeding during production.
The machine uses an electric lifting system with overload protection and provides functions including lifting, clamping, lateral movement and centering of paper rolls. It is suitable for various paper grades used in corrugated board production.
Key Features
- Structure: The electrical shaftless mill roll stand adopts a symmetrical structure, allowing two rolls of base paper to be installed simultaneously for continuous paper changing during production.
- Lifting System: Base paper lifting is driven by an electric system equipped with an overload protection device.
- Functions: Lifting and lowering, clamping and loosening, left-right movement, and paper roll centering.
- Paper Width: 400–1800 mm.
- Maximum Paper Roll Diameter: 1400 mm. Minimum Paper Roll Diameter: Φ400 mm.
- Maximum Supporting Weight: 2 tons.
- Clamping & Rotating Mechanism: The supporting arms are equipped with a constant torque clutch for stable operation.
- Tension Adjustment: A pneumatic brake or manual brake is available for paper tension control.
- Paper Positioning: Tapered centers or expanding centers are available according to production requirements.
- Brake Type: Disc brake.
- Chuck: Automatic dual-expanding chuck.
- Feeding Components: Each stand is equipped with two paper feeding rails and two paper loading trolleys.
- The trolleys are fitted with guide wheels for smooth paper loading.
- The feeding rails are manufactured from No.12 channel steel welded to guide columns.
- The paper loading trolleys are fabricated from 12 mm welded steel plate.
- Feeding Rail Length: 4500 mm.
Technical Parameters
| Width | 400-1800 mm |
| Paper roll dia. | Φ400-φ1400 mm |
| Single side hold weight | 2000 kg |
| Pressure | 0.6-0.9 Mpa |
| Total power | 4.0 kw |
| Voltage | 3 Ph 380 V 50 Hz |
| Max sheet size | 1300*1250 mm |
Remarks: If you need hydraulic mill roll stand, pls check: Hydraulic Mill Roll Stand
Suitable Materials
Suitable for:
- Kraft Liner
- Testliner
- White Top Liner
- Corrugating Medium
Applications
Suitable for:
- Corrugated Cardboard Production Lines
- Corrugated Board Plants
- Carton Box Factories
- Packaging Manufacturers
Applicable to:
- Base Paper Feeding
- Paper Roll Unwinding
- Corrugated Board Production
Working Process
Paper Roll Loading
↓
Electric Lifting
↓
Paper Roll Clamping
↓
Paper Roll Centering
↓
Paper Unwinding
↓
Paper Feeding to the Production Line
Why Choose This Machine
- Shaftless paper roll support
- Electric lifting system with overload protection
- Stable paper unwinding
- Convenient paper roll replacement
- Compatible with various base paper grades
- Suitable for corrugated cardboard production lines
Recommended Industries
Suitable for:
- Corrugated Board Manufacturers
- Carton Box Manufacturers
- Packaging Companies
- Paper Converting Plants
FAQ
What is an Electrical Shaftless Mill Roll Stand?
It is used to support, lift and unwind paper rolls at the beginning of a corrugated cardboard production line.
What paper widths are supported?
The JYPT-1800 model supports paper widths from 400 mm to 1800 mm.
How is the paper roll lifted?
The paper roll is lifted by an electric system equipped with overload protection.
What types of paper can be used?
It is suitable for kraft liner, testliner, white top liner and corrugating medium.
How is paper tension controlled?
Paper tension can be controlled using either a pneumatic brake or a manual brake.
Does the machine support different voltage requirements?
Yes. The machine can be customized to meet different voltage and frequency requirements according to the customer’s country and local electrical standards.
