Product Overview

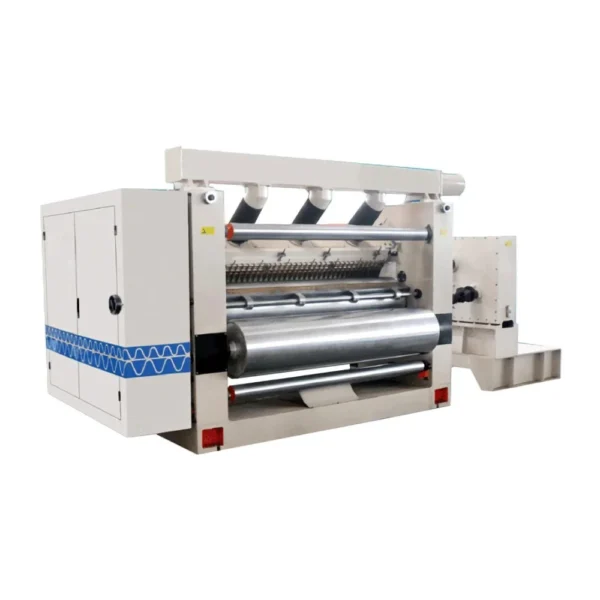

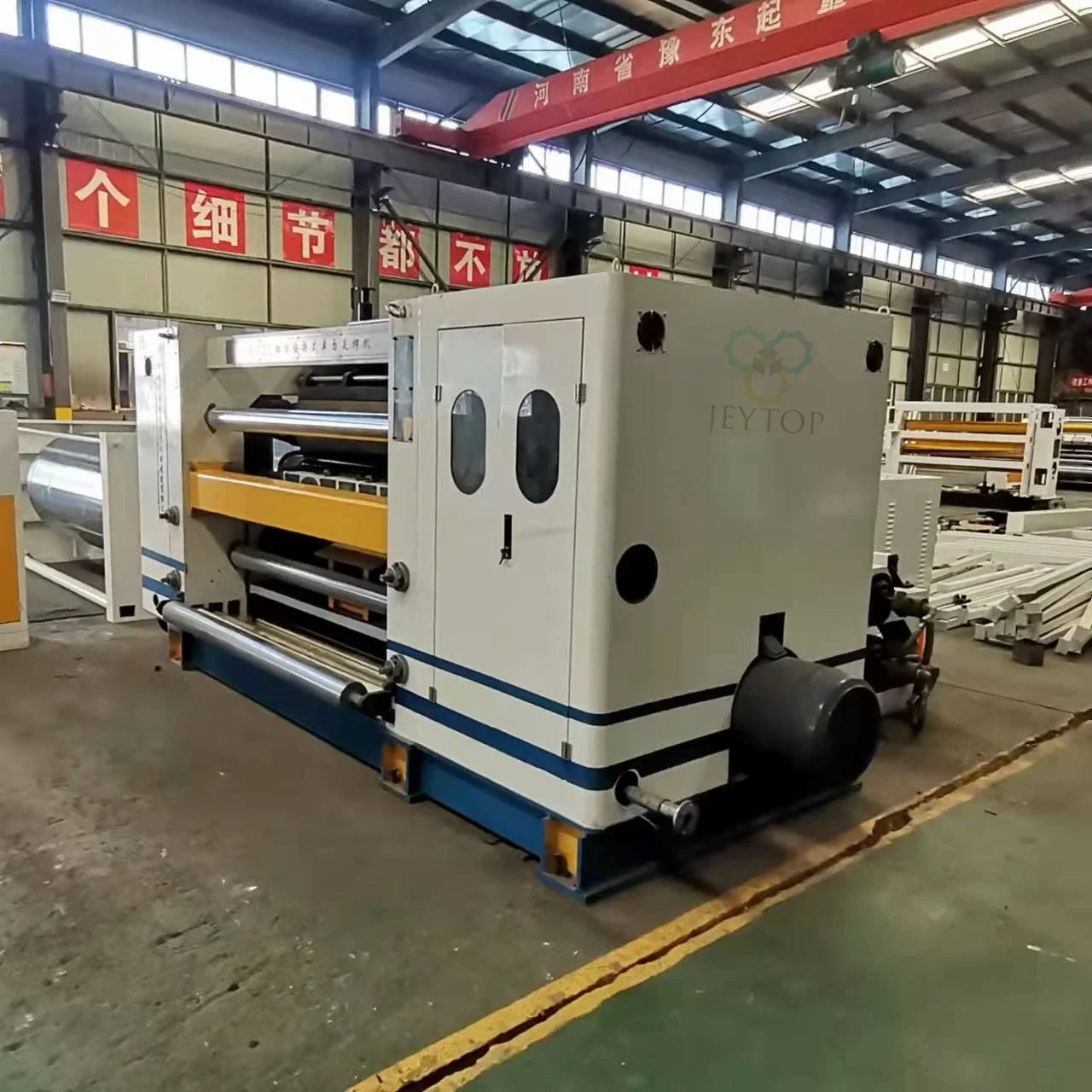

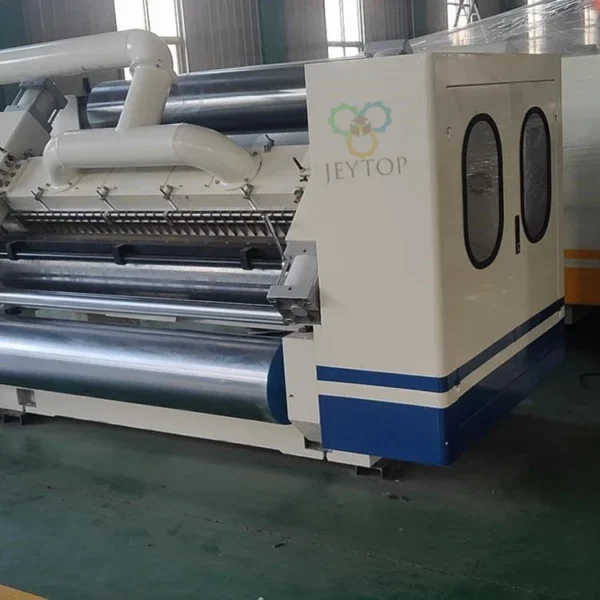

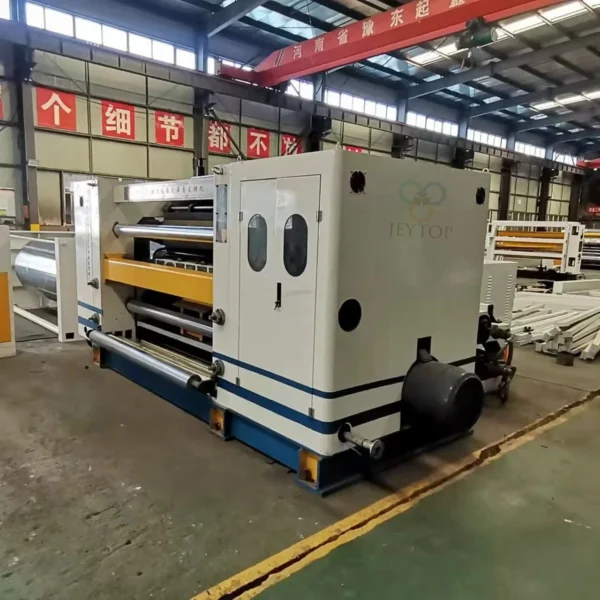

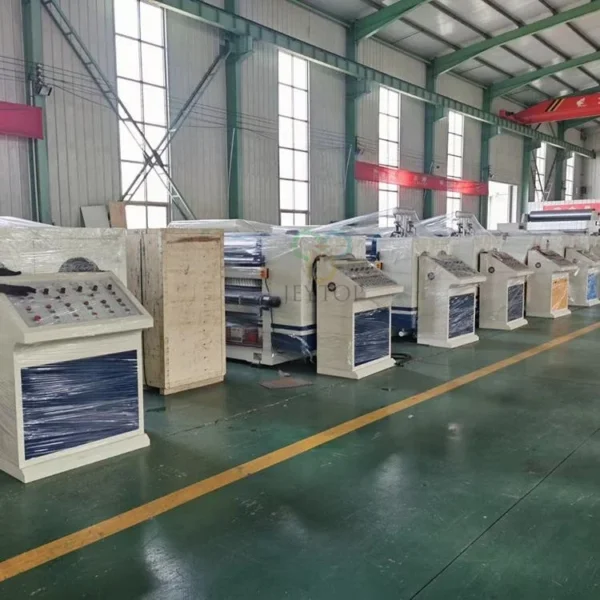

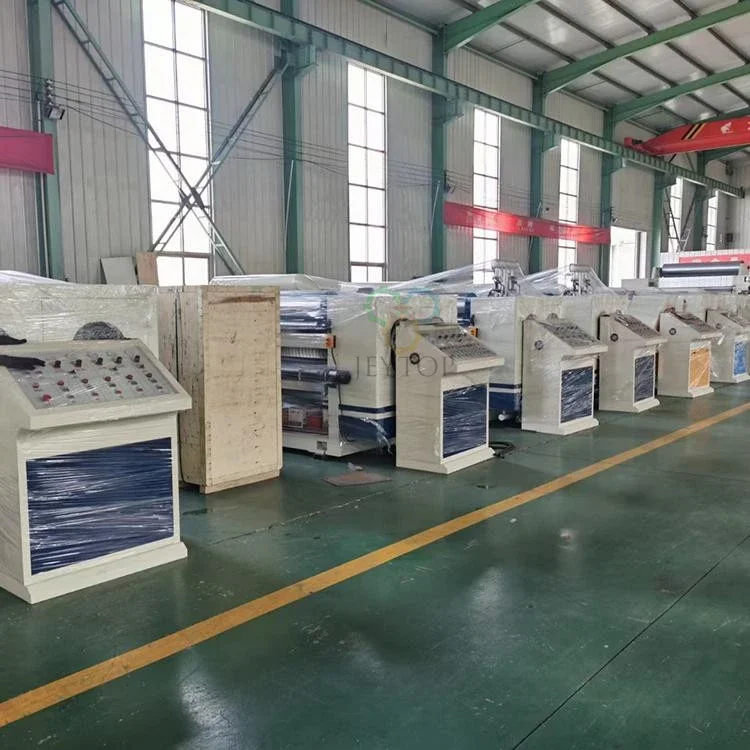

The Fixed Adsorption Type Single Facer is one of the core machines in a corrugated board production line. It is designed to produce single-face corrugated board by bonding corrugated medium to liner paper through a vacuum adsorption forming system.
This machine adopts a fixed vacuum adsorption structure to provide stable paper guidance during corrugating. It is suitable for continuous production of various flute profiles and can be integrated with complete 3-ply, 5-ply, or 7-ply corrugated board production lines.
Available in SF320, SF360, and SF380 models, the machine can be selected according to different production capacity and line speed requirements.
Key Features：
- The machine adopts a vacuum adsorption corrugating system to provide stable paper guidance during corrugating and ensure consistent flute formation.
- The upper and lower corrugating rollers are manufactured from 48CrMo alloy steel. After heat treatment, the roller hardness reaches HRC58–60. The roller surfaces are precision ground and chrome plated for improved wear resistance and long service life.
- The electric gluing unit can operate independently when the main machine stops, helping prevent the adhesive from drying. The glue amount can be adjusted either through a digital display or manually.
- The upper and lower corrugating roller assemblies are designed as separate units, allowing the complete roller set to be lifted and replaced conveniently when changing flute profiles.
- The bearings of the upper and lower corrugating rollers and the pressure roller are lubricated with high-temperature grease to ensure smooth operation and extend bearing service life.
- The upper and lower corrugating rollers, pressure roller, and glue roller are all pneumatically controlled.
- The main drive is powered by a variable frequency motor with an independent gearbox and three-shaft transmission. The inverter controls acceleration and deceleration for stable operation and reduced energy consumption, while a communication interface is reserved for future production management systems.
- The enclosed gear transmission operates in an oil bath to reduce operating noise, provide smooth power transmission, and extend gear service life.
- The glue roller and glue doctor roller are mounted on guide rails and can be removed as a complete assembly, making maintenance easier and reducing downtime.
- The machine is equipped with a liner paper preheating roller and a steam spray conditioning device for the corrugating medium to help maintain suitable paper conditions before corrugating.
Technical Parameters
| Speed | Φ320:100-150 m/min Φ360:150-180 m/min Φ380:200 m/min |
| Width of Paper | 1400,1600,1800,2000,2200,2500mm |
| Diameter of Corrugated Roller | Φ320mm /360mm/380mm Optional |
| Material of upper-lower Corrugating roller | 48CrMo high quality alloy steel,rigidity HRC58°-60° |
| Processing | The surface of upper and lower rollers is precision ground and hard chrome plated after quenching heat treatment |
| Style of Transmit cardboard | Vacuum adsorption type with adjustable air volume |
| Transmission | Gimbal Drive Type |
| Style of Control Roller | Pneumatic control the upper roller, pressure roller and glue roller |
| Lubrication | The bearings of the corrugated rolls and pressure rolls are lubricated with high-temperature grease, and the gearbox is oil-bath lubricated |
| Type of Corrugated Roller | (U/V) A/C/B/E/F |
| About gear | Close style gear transmission oiliness lubricated, long use life of gear |
| Style of adjusting glue quantity | Electrically adjust the figure show quantity or manually adjust |
Glue roller assembly is installed on grouped guide rails for quick disassembly and assembly | |
Suitable Materials
Suitable for processing:
- Kraft Liner
- Testliner
- White Top Liner
- Corrugating Medium
Suitable flute profiles include:
- A Flute
- C Flute
- B Flute
- E Flute
- Other flute profiles according to roller configuration
Applications
The Fixed Adsorption Type Single Facer is suitable for:
- Corrugated Board Manufacturers
- Carton Box Factories
- Packaging Companies
- Integrated Corrugated Board Production Plants
Typical finished products include:
- E-commerce Cartons
- Food Packaging Boxes
- Fruit & Vegetable Boxes
- Industrial Packaging
- Export Cartons
- Consumer Goods Packaging
Working Process
Raw Paper Feeding
↓
Paper Preheating
↓
Steam Conditioning
↓
Vacuum Corrugating
↓
Glue Application
↓
Liner Bonding
↓
Single-Face Corrugated Board Output
Recommended Industries
Suitable for:
- Corrugated Board Plants
- Carton Box Manufacturers
- Packaging Material Producers
- Industrial Packaging Suppliers
- Export Packaging Manufacturers
FAQ
What is a Fixed Adsorption Type Single Facer?
It is a corrugated board production machine that uses a vacuum adsorption system to form corrugated medium and bond it with liner paper, producing single-face corrugated board.
What materials can this machine process?
The machine is suitable for kraft liner, testliner, white top liner, and corrugating medium commonly used in corrugated board production.
Which flute profiles are supported?
The supported flute profiles depend on the installed corrugating rollers and can include A, B, C, and E flutes.
How is glue quantity adjusted?
The glue amount can be adjusted through a digital display control or manually according to production requirements.
Is the machine easy to maintain?
Yes. The sliding glue roller assembly and separate corrugating roller carriage simplify maintenance and reduce replacement time.
Can this machine be integrated into a complete production line?
Yes. The machine can be integrated into complete corrugated board production lines according to production requirements.
