Product Overview
The Pre-heater Machine is used in corrugated cardboard production lines to preheat base paper and single-face corrugated paper before the bonding process. By increasing paper temperature and helping control moisture, it provides suitable conditions for stable gluing and corrugated board forming.
The machine uses a heated cylinder with adjustable wrapping angle, allowing the preheating area to be adjusted according to different paper grades, flute types and production requirements. Single, double, triple and multi-layer configurations are available.
Key Features of the Pre-heater Machine
- The pre-heater machine, also called a preheating cylinder, complies with national pressure vessel standards and is supplied with pressure vessel and inspection certificates.
- The roller surface is precision machined, finely ground and hard chrome plated. The smooth surface reduces friction and provides wear resistance during operation.
- The wrapping angle can be adjusted electrically within 360°, allowing adjustment of the paper preheating contact area.
- Butterfly-head or flat-head cylinder designs are available to provide uniform heating of base paper.
- The machine can be configured as a single preheater, double preheater, triple preheater or multi-layer preheating system according to production requirements.
- The preheating cylinder uses a reduction motor for constant-speed rotation, helping maintain stable paper movement and reducing the risk of paper breakage.
- It is used for preheating single-face corrugated paper and liner paper in corrugated board production lines to increase paper temperature, assist bonding, control moisture and improve board forming conditions.
Technical Parameters
| Item | Specification |
|---|---|
| Machine Type | Pre-heater Machine |
| Application | Corrugated Cardboard Production Line |
| Preheater Roller Diameter | Φ400 mm / Φ600 mm / Φ800 mm / Φ900 mm / Φ1000 mm / Φ1100 mm |
| Effective Working Width | 1400–2800 mm |
| Angle Adjustment Method | Electric |
| Wrapping Angle Adjustment Range | 60°–360° |

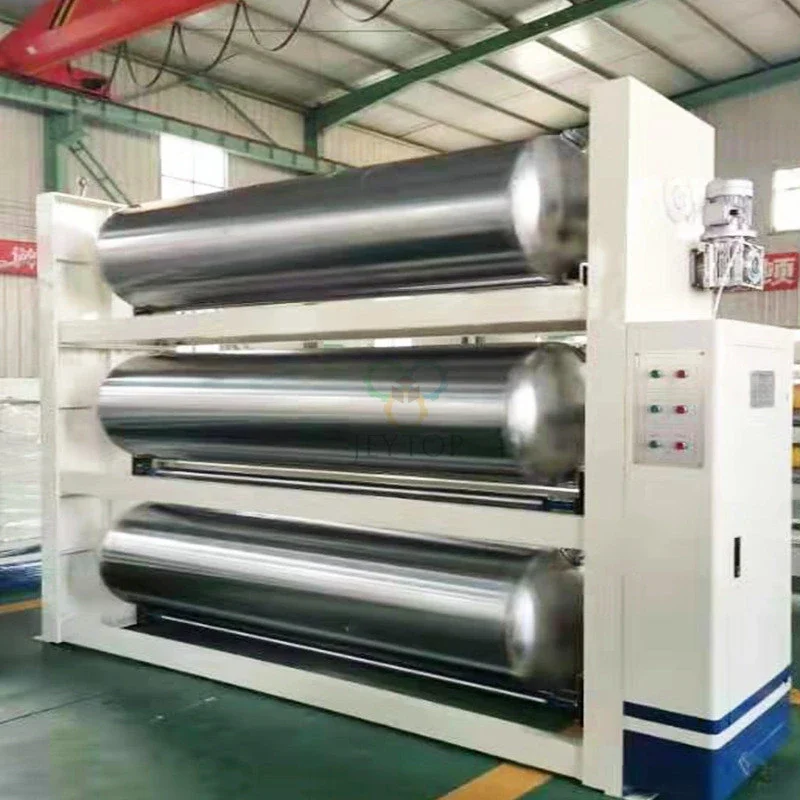

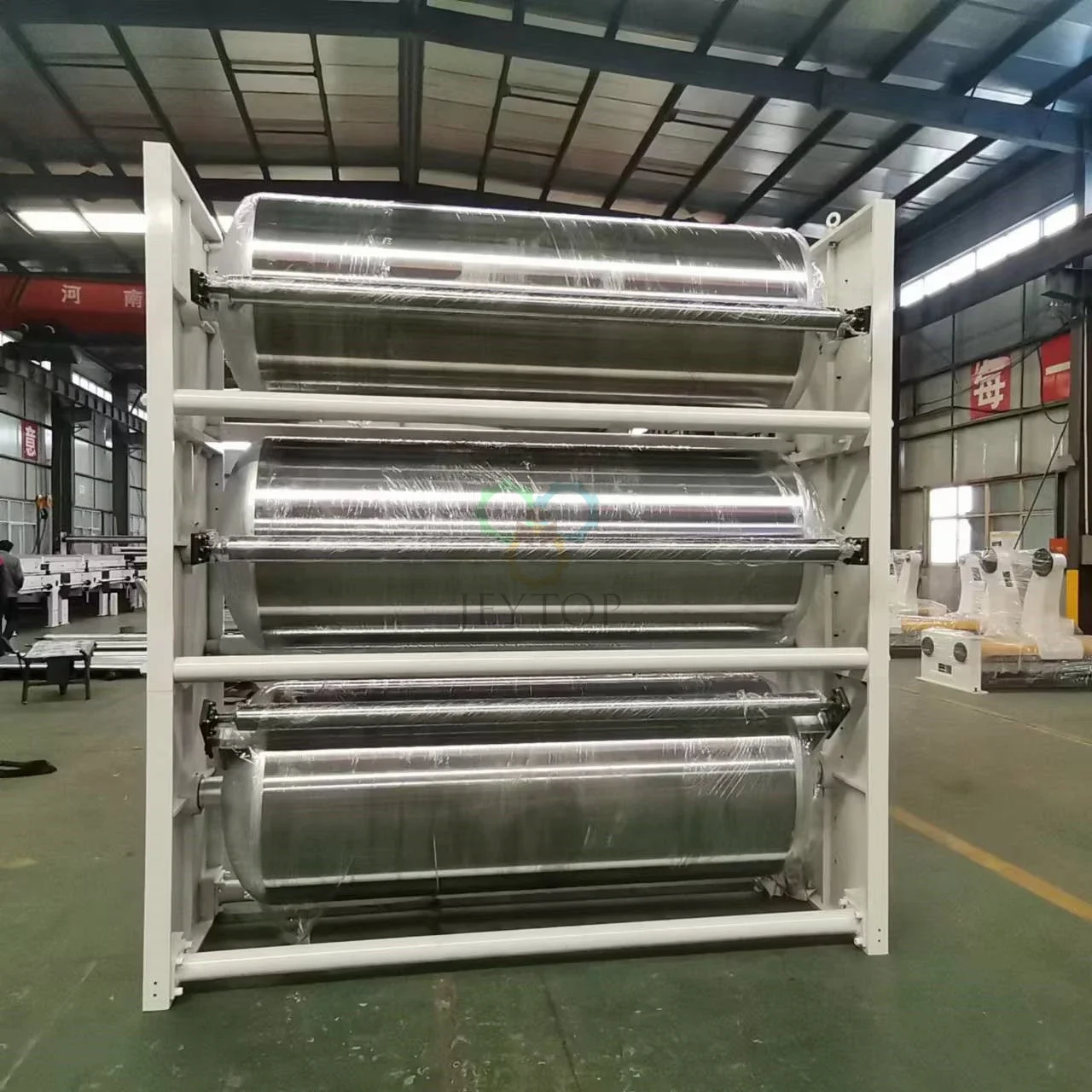

| Configuration | Single / Double / Triple / Quadruple Preheater |
Available Models
| Configuration | Description |
|---|---|

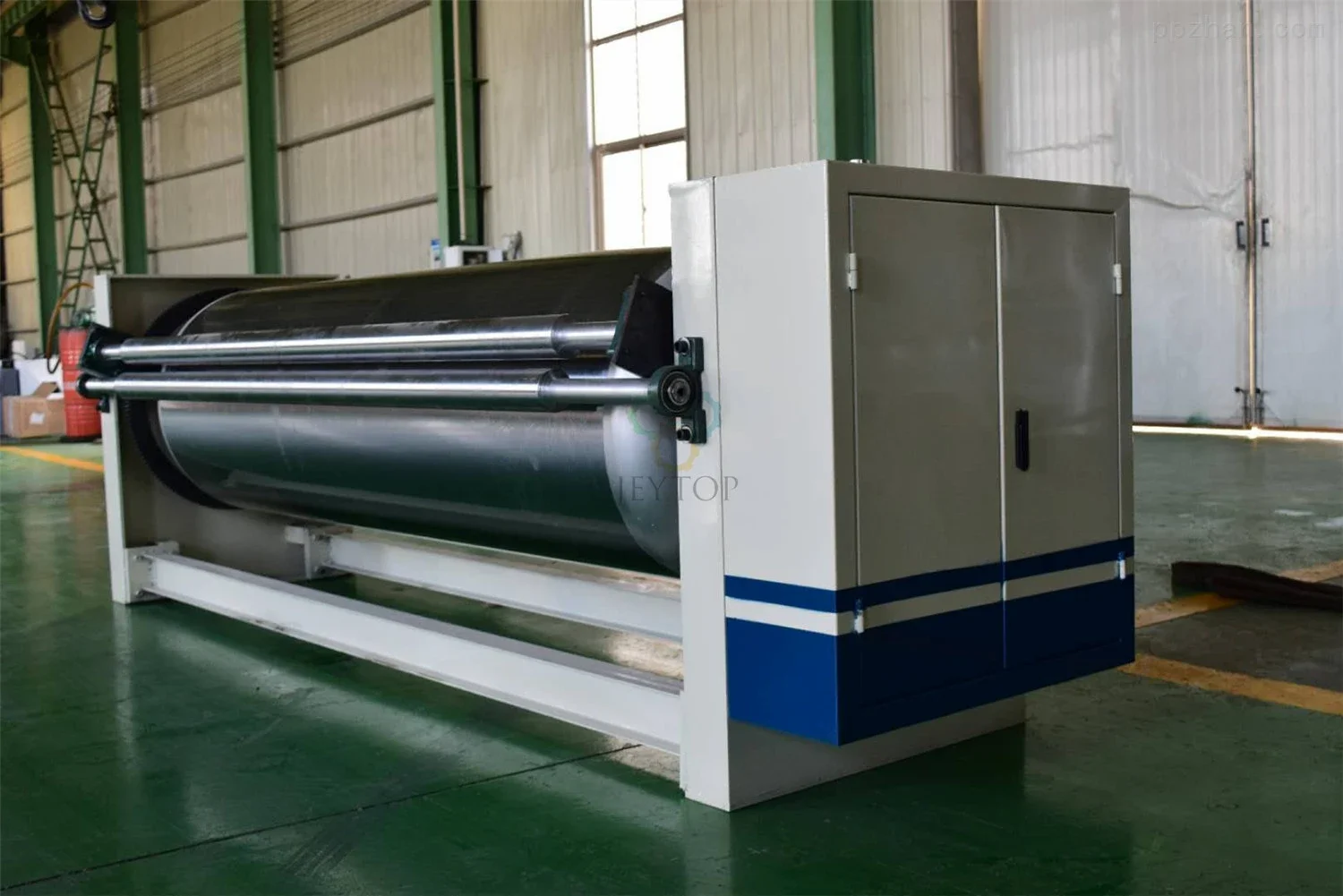

| Single Preheater | Single heating cylinder configuration |
| Double Preheater | Two-cylinder preheating configuration |
| Triple Preheater | Three-cylinder preheating configuration |
| Multi-layer Preheater | Multiple cylinder configuration according to production requirements |
Suitable Materials
Suitable for:
- Kraft Liner
- Testliner
- White Top Liner
- Corrugating Medium
- Single Face Corrugated Paper
Applications
Suitable for:
- Corrugated Board Plants
- Carton Box Manufacturers
- Packaging Companies
- Paper Converting Plants
Applicable processes:
- Base paper preheating
- Single-face corrugated paper preheating
- Moisture control before bonding
- Corrugated board forming preparation
Working Process
Base Paper Feeding
↓
Paper Contact with Preheating Cylinder
↓
Heating and Moisture Adjustment
↓
Adjustable Preheating Area Control
↓
Paper Feeding to Bonding Process
↓
Corrugated Board Forming
Why Choose This Machine
- Adjustable preheating contact area
- Uniform paper heating
- Available in multiple roller diameters
- Supports different preheater configurations
- Suitable for different paper grades
- Designed for stable operation in corrugated board production lines
Recommended Industries
Suitable for:
- Corrugated Board Manufacturers
- Carton Manufacturers
- Packaging Companies
- Paper Processing Plants
FAQ
What is a pre-heater machine used for?
A pre-heater machine is used to heat base paper and single-face corrugated paper before bonding in a corrugated cardboard production process.
Why does corrugated paper need preheating?
Preheating helps increase paper temperature, control moisture and provide suitable conditions for gluing and corrugated board forming.
What roller diameters are available?
The machine is available with preheating cylinder diameters from Φ400 mm to Φ1100 mm.
Can the preheating area be adjusted?
Yes. The wrapping angle can be electrically adjusted within 60°–360° according to production requirements.
What configurations are available?
Single, double, triple and multi-layer preheater configurations are available.
Does the machine comply with pressure vessel requirements?
Yes. The preheating cylinder is manufactured according to applicable pressure vessel standards and can be supplied with relevant certificates.
