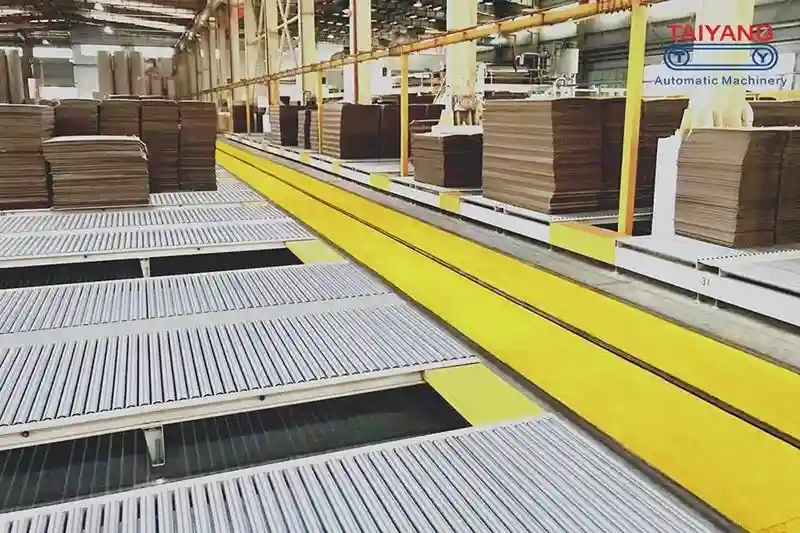

Comprehensive Guide to Selecting Paper Processing Systems for Corrugated Board Production Lines

— From Equipment Analysis to Global Adaptation

内容 隐藏

I. In-Depth Analysis of Core Modules in Paper Processing Systems

In corrugated board production, the paper processing system serves as the "starting point" of the production line, directly influencing the stability of subsequent processes and the quality of finished products. According to industry statistics, 38% of board defects and 25% of downtime losses originate from improper raw paper pretreatment. The following detailed analysis of four core modules combines cutting-edge technical parameters and practical applications to provide a full-dimensional selection reference.

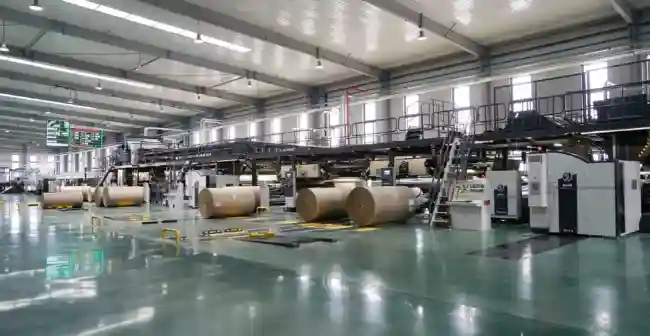

(A) Reel Stand Systems: The Technical Balance of Dynamic Load-Bearing and Tension Control

1. Mechanical Flip Reel Stands — Cost-Effective Solution for Basic Capacity

Technical Specifications:

  • Suitable reel specifications: Φ76/Φ152mm cores, single reel load 2–3 tons (20% safety margin design)
  • Drive system: Four-bar mechanism + worm gear drive, positioning accuracy ±2mm
  • Tension control: Mechanical damping adjustment, fluctuation range ≤±5% (requires regular manual calibration)
  • Reel change efficiency: Manual switching within 3–5 minutes, annual maintenance cost ~US$2,500 (including N32 engine oil replacement and rail lubrication)

Application Scenarios:Suitable for small- to medium-sized packaging plants with daily production of 30,000–80,000 sqm, typical of general transport packaging lines in Southeast Asia. An Indonesian carton factory using this solution achieved 24/7 continuous paper supply with dual-position mechanical stands. While reel change efficiency is lower than automatic systems, initial equipment investment is 40% lower than smart models—ideal for capacity ramp-up with limited budgets.

2. Hydraulic Lifting Reel Stands — Stable Choice for Medium-Speed Lines

Technical Upgrades:

  • Power system: Dual hydraulic cylinder drive (pressure sensor accuracy ±0.1MPa), lifting speed 0.1–0.3m/s
  • Intelligent linkage: Supports 3–5 reel interlocking, with overheat protection (automatic shutdown at oil temperature >60°C)
  • Tension closed-loop: Magnetic powder brake primary closed-loop control, response time ≤100ms, tension fluctuation ≤±3%

Practical Case:A Vietnamese home appliance packaging factory (serving Samsung and LG) that frequently switches 150–300g/m² basis weight raw paper adopted hydraulic lifting reel stands. By presetting lifting parameters for different basis weights via PLC, the system automatically matches tension thresholds during reel changes, achieving equipment failure rate <4% and reducing manual intervention by 20% compared to traditional mechanical stands.

3. Smart Shaftless Reel Stands — Industrial 4.0 Standard for High-Speed Lines

Technical Highlights:

  • Full digital control: Magnetic powder brake + servo motor combination, tension control range 100–500N (accuracy ±2%)
  • Reel change technology: Ultrasonic edge guiding (accuracy ±0.5mm) + automatic splicing pre-positioning, reel change time ≤45 seconds
  • Data connectivity: Supports OPC UA protocol, real-time upload of reel remaining quantity and tension curves to MES system

ROI Analysis:A leading European packaging enterprise implementing smart shaftless reel stands achieved 1.2% annual raw paper waste reduction (equivalent to 30 tons/year for a medium-sized line producing 2,500 tons/year of raw paper), with 18% lower labor costs. The magnetic powder brake's energy recovery technology reduces single-shift energy consumption by 25% compared to hydraulic models, recouping the equipment cost difference within 2 years.

(B) Preheating Systems: The Dual Challenge of Moisture Regulation and Energy Optimization

1. Steam Preheating Systems — Enhanced Classic Technology

Core Configuration:

  • Preheating cylinder: Φ610mm stainless steel (8mm thickness), surface temperature uniformity ±3°C
  • Energy-saving design: Spiral condensate recovery pipe (recovery rate ≥98%), steam consumption 350–450kg/ton board (calculated for 150g/m² kraft liner)
  • Maintenance key: Maintain siphon gap at 0.3–0.8mm; recommend scale monitoring sensor (alarm threshold 0.5mm)

Application Scenarios:Logistics packaging lines (e.g., Amazon fulfillment centers). A Middle Eastern packaging factory adjusted raw paper moisture from 8% to 9.5% via steam preheating, achieving 12% higher board burst strength to meet long-haul transport impact resistance requirements.

2. Infrared Closed-Loop Preheating Systems — Precision Choice for High-End Packaging

Technical Breakthroughs:

  • Detection module: 8–14μm wavelength infrared sensor (detection range 5%–15%, response time ≤0.3s)
  • Intelligent algorithm: AI prediction model adjusts preheating temperature dynamically based on raw paper basis weight and line speed, reducing energy consumption by 18% compared to traditional steam
  • Quality control: Moisture regulation accuracy ±0.5%, combined with static elimination device (surface resistance ≤10⁹Ω), suitable for high-precision applications like pre-printed color boxes

International Case:A German luxury packaging factory using infrared preheating + steam auxiliary system for 250g/m² coated kraft paper achieved print registration error ≤0.1mm, reducing the scrap rate from 3% to 0.8%. This solution has become the standard for EU high-end packaging lines.

(C) Automatic Splicing Systems: The Precise Balance of Efficiency and Waste

1. Economical Dual-Position Splicers — Efficiency Assurance for Small- to Medium-Sized Orders

Technical Parameters:

  • Splicing method: Cross-type tape pasting (X-shaped), servo motor acceleration (0.5g acceleration)
  • Suitable web width: 1.2–2.5m, tension synchronization accuracy ±5%, splicing time ≤1 second
  • Waste control: Web break loss ≤1m, annual downtime savings from manual splicing ~120 hours

Operation Tips:Recommend an edge detection device to monitor reel skew in real-time (threshold ±2mm). A Mexican SME packaging factory reduced the manual splicing waste rate from 5% to 2% with this equipment, saving over US$10,000 annually in raw paper costs with 20 daily reel changes.

2. High-Speed Intelligent Splicing Systems — Core Hub for Continuous Production

Upgraded Configuration:

  • Laser alignment: Accuracy ±0.2mm, automatic blade sharpening (blade life ≥150,000 cycles)
  • Tension compensation: Dynamic buffer roller group (stroke ±100mm), tension fluctuation ≤±3% during splicing
  • Data tracking: Records tension curves and splicing positions, generates equipment maintenance alerts

Benchmark Application:A Southeast Asian packaging enterprise (30 million sqm annual output, adapting 150–250g/m² raw paper) saw splicing success rate rise from 92% to 98% with high-speed splicers. Combined with an MES system for waste traceability, the residual reel rate (diameter <15cm) decreased by 60%, generating over US$50,000 in annual savings per line.

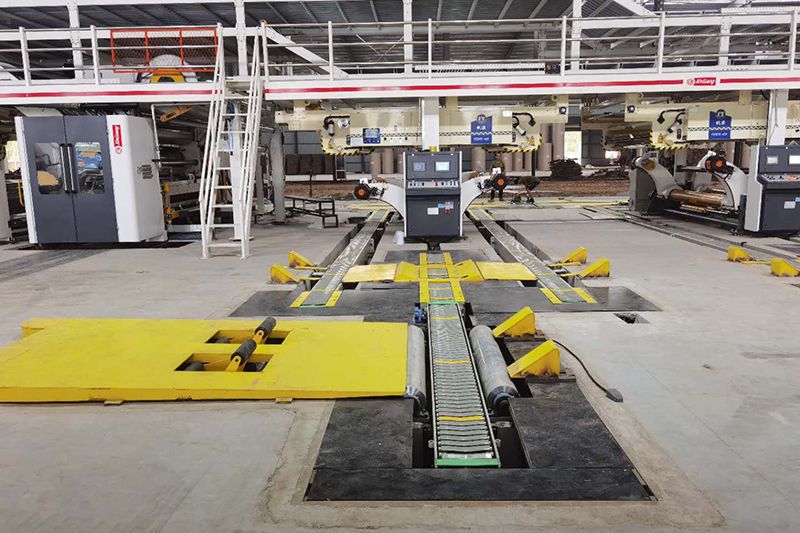

(D) Reel Handling Systems: Intelligent Link Between Warehousing and Production

1. Hydraulic Lifting Carts — Practical Choice for Small- to Medium-Sized Warehouses

Basic Parameters:

  • Load capacity: 2 tons (peak 2.5 tons), lifting height 0–1.5m (accuracy ±10mm)
  • Safety design: Anti-fall braking device (response time ≤0.2s), noise ≤65dB
  • Cost advantage: 70% lower investment than AGV, suitable for raw material warehouses <500m²

Usage Recommendation:Integrate with RFID tagging for digital reel location management. A Thai food packaging factory reduced reel retrieval time from 15 to 5 minutes on average, improving warehouse efficiency by 60%.

2. Smart Logistics Systems — Unmanned Standard for Large-Scale Production

Technical Architecture:

  • Hardware layer: AGV robots (5-ton load, positioning accuracy ±10mm) + shelf recognition system (RFID + visual fusion)
  • Software layer: WMS integration (inventory management accuracy ±1 reel), supports wave planning automatic scheduling
  • Energy solution: Lithium battery power (8-hour runtime, 30-minute fast charge to 80%), 40% lower energy consumption than traditional forklifts

Typical Case:A US smart factory using AGV + automated storage and retrieval system achieved 30% reduction in raw material warehouse space, enabling 24/7 unmanned inventory management. Integrated with ERP, the system automatically schedules reel delivery based on production plans, reducing material waiting downtime by 15%.

II. Full-Scenario Configuration Solutions and Investment Benefit Analysis

(A) Capacity Expansion Configuration — For Growing Enterprises

Package: Mechanical flip reel stands + steam preheater + economical splicer + hydraulic cart

Investment Cost: US200,000–US250,000

Performance Parameters:

  • Suitable line speed: 80–150m/min, raw paper waste rate ≤3%
  • Automation level: Semi-automatic (manual reel change, manual parameter adjustment)
  • Energy index: Power consumption 60–120kW/h, steam consumption 400kg/ton board

Adaptation Scenarios:Ideal for start-up packaging plants in Southeast Asia, Latin America, and the Middle East (configurable for capacity needs). A newly established Vietnamese factory using this configuration achieved 80% of design capacity within 6 months, with an initial ROI of 35%.

(B) Efficiency Optimization Configuration — For Medium-Sized Enterprises

Package: Hydraulic lifting reel stands + infrared closed-loop preheater + intelligent splicer + semi-automatic logistics

Investment Cost:US500,000–US 600,000

Core Advantages:

  • Productivity: 30% higher than basic configuration, line speed up to 200–250m/min
  • Quality control: Moisture accuracy ±0.5%, splicing waste ≤0.8m
  • Energy performance: 15% lower steam consumption, US$15,000+ annual electricity savings

Practical Data:A Turkish packaging company implementing this solution increased board pass rate from 85% to 95%, meeting EU environmental standards (water-based adhesive compatible), and successfully entered high-end home appliance packaging supply chains.

(C) Smart Factory Configuration — For Large Enterprises

Package: Smart shaftless reel stands + infrared-steam composite preheating + high-speed splicer + AGV logistics

Investment Cost: US1,200,000–US1,500,000

Technical Edge:

  • Overall Equipment Effectiveness (OEE): ≥85%, supports 24/7 unmanned operation
  • Data integration: Full ERP/MES/WMS connectivity for real-time raw paper consumption tracking
  • Green manufacturing: Optional photovoltaic power module (subject to local energy policies), 100% VOC emission compliance

Benchmark Effect:A global leading packaging enterprise using this configuration achieved 260,000 sqm daily output, with the residual reel rate controlled below 0.5%. The smart solution was included in the "Global Green Manufacturing Demonstration Project," setting an industry benchmark.

III. Global Market Adaptation Strategies — From Regional Characteristics to Technical Requirements

(A) Emerging Markets (Southeast Asia, Latin America, Middle East)

Market Characteristics: Explosive e-commerce packaging demand (CAGR >15%), focus on initial cost and durabilitySolution Recommendations:

  • Basic configuration upgrade: Mechanical stands with optional automatic lubrication (50% reduced maintenance frequency)
  • Localized service: 3-year warranty + 24/7 remote diagnostics to minimize downtime risks
  • Case reference: An Indonesian e-commerce packaging factory added infrared moisture detection to existing mechanical stands (15% cost increase), reducing board return rate by 40% and rapidly capturing local market share

Technology Trend: Prioritize splicer upgrades (ROI 12–18 months), using servo acceleration to control web break loss within 0.5m, meeting short-order rapid response needs.

(B) Technology-Leading Markets (North America, Western Europe, Japan/Korea)

Market Characteristics: Stringent environmental regulations (e.g., EU CECP), intelligent system penetration >70%, emphasis on data traceabilitySolution Design:

  • Smart factory standard: Add RFID reel management + digital twin commissioning (30% shorter installation cycle)
  • Environmental adaptation: Water-based adhesive preheating system (VOC emission ≤50mg/m³), compliant with REACH Regulations
  • Case reference: A German green packaging company using smart shaftless stands + photovoltaic power won the "European Sustainable Packaging Award," with its experience included in industry whitepapers

Technology Frontier: Deploy AI quality prediction systems modeling 12 parameters like raw paper moisture and tension, providing 2-hour advance defect warnings as a prerequisite for high-end market entry.

IV. Selection Decision Guide — From Pain Point Solutions to Long-Term Value

(A) Core Problem Solutions

Q1: How to balance load capacity and equipment cost?A: Adopt "basic load + safety margin" design (e.g., 2.4-ton equipment for 2-ton reels with 20% margin). Small- to medium-sized enterprises may prefer hydraulic models (1.8 tons/US$10,000 cost-effectiveness), while high-speed lines benefit from smart shaftless stands (5-ton load per group, suitable for wide-width reels).

Q2: When is customized preheating needed?A: Decision based on product type:

  • General corrugated board: Steam preheating (low investment, simple maintenance)
  • Pre-printed color board: Infrared closed-loop (high precision, reduced registration errors)
  • Special requirements (moisture-proof/anti-static): Composite preheating (steam + infrared + coating treatment)

Q3: Key factors for splicing waste control?A: Focus on "tension synchronization + edge alignment":

  • Choose splicers with dynamic buffer rollers (buffer ≥5m)
  • Install laser alignment systems (accuracy ±0.2mm)
  • Regularly calibrate splicing blade angle (recommended 45°±2°)

(B) Technology Trends and Investment Advice

1. Intelligent Upgrade Pathway

  • Short-term (1–2 years): Install IoT sensors (temperature/tension/energy) for real-time equipment monitoring (US$20,000 investment, results within 3 months)
  • Mid-term (3–5 years): Integrate AI algorithms for tension optimization (e.g., magnetic powder brake response speed to 30ms), reducing process fluctuations by 10%
  • Long-term (5+ years): Deploy digital twin systems (40% shorter virtual commissioning time), connect to factory cloud for predictive maintenance

2. Green Manufacturing Transformation

  • Photovoltaic power: Suitable for regions with ≥2000 hours annual sunshine, projected 30%+ electricity savings over 5 years (subject to local policies)
  • Condensate recovery: Mandatory for steam systems, US$5,000 investment achieves 98% water recycling
  • Water-based processes: Compulsory for European and American markets, require preheating system water resistance upgrade (surface tension ≥40mN/m)

V. Worry-Free After-Sales Support — From Equipment Delivery to Continuous Value

(A) Full-Cycle Service System

  • Pre-sales: Free whole-plant layout design (including raw paper warehouse planning, logistics channel simulation)
  • Mid-sales: Engineer on-site commissioning (parameter adaptation within 72 hours)
  • After-sales:

Remote diagnostic system: 90% fault location accuracy, 7×24 rapid response

Localized spare parts support: 12 global service centers ensuring 48-hour delivery of common spares

Customized training: Online operation training + digital technical manuals; on-site guidance for large equipment projects

(B) Quality Commitment and Compliance Assurance

  • Quality guarantee: 2-year warranty for core components, 6-month warranty for consumables, lifetime maintenance consultation
  • Energy transparency: Detailed energy consumption curves at different line speeds (e.g., ≤80kW at 150m/min) provided with equipment
  • International certifications: CE, UL, ISO compliant, complete technical documentation and test reports available

VI. Act Now — Get Your Tailored Solution

As a 15-year global corrugated machinery solutions provider serving 2,000+ customers in 30+ countries, we drive packaging line efficiency through technological innovation:

Full product range

From basic to smart models, supporting customized selection for corrugated board production paper processing systems

R&D strength

5% annual revenue invested in innovation, 27 core patents in paper processing technology

Global service network

Multilingual technical support team, rapid response to APAC, Europe, and Latin America markets

Click below to obtain:

▸ 《Corrugated Board Production Paper Processing System Selection Whitepaper》(including global environmental standard comparison, energy calculator)

▸ Free "Smart Factory Diagnostic" appointment (senior engineer 1-on-1 line assessment)

▸ New customer exclusive: 3-year extended warranty with order (US$15,000 value)

Contact us today to empower your packaging line with professional paper processing systems, achieving dual breakthroughs in efficiency and quality!

Competition in corrugated board production is essentially a battle of supply chain efficiency and quality stability. As the "first mile," paper processing system selection impacts not only equipment investment but also the upper limit of subsequent processes. Through in-depth technical analysis, global market adaptation, and worry-free service support, we help customers build differentiated advantages to lead in the global packaging market.
