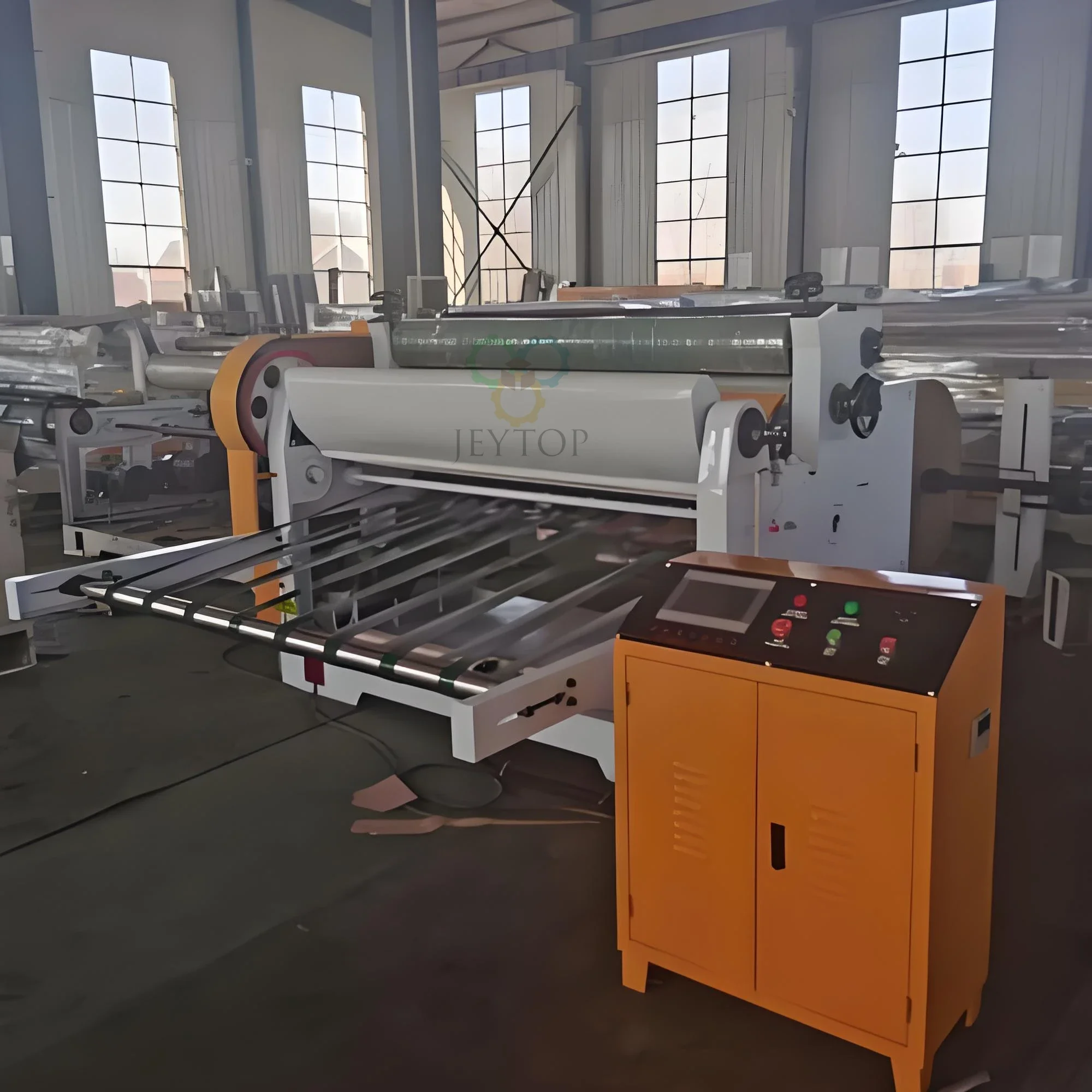

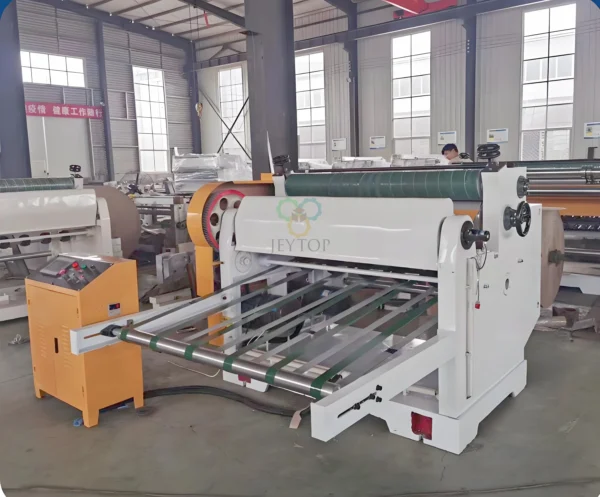

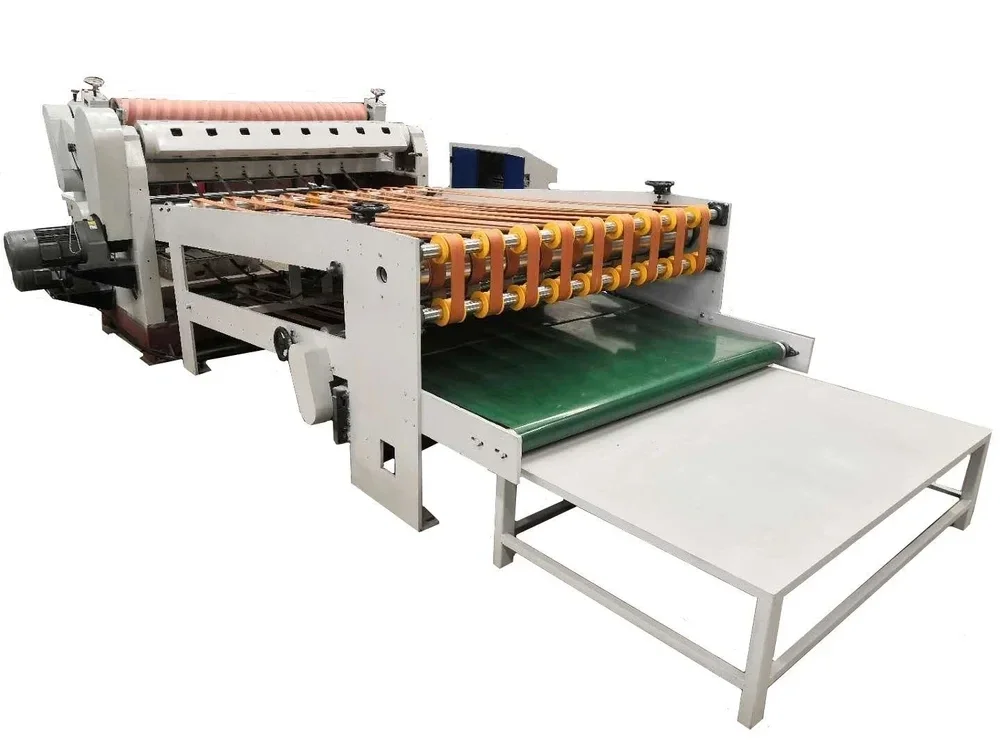

2 Ply NC Sheet Cutter with Collector for Single Facer Line

Product Overview：

The 2 Ply NC Sheet Cutter With Collector, also known as a single facer sheet cutter or corrugated board sheet cutter, is designed for 2-ply single-face corrugated board production lines.

Installed after the single facer, the machine cuts the continuous corrugated web into preset sheet lengths and automatically counts, aligns, stacks, and collects the finished sheets for the next production process.

This system combines an NC sheet cutter and an automatic collector in one compact machine, making it suitable for corrugated sheet plants, carton factories, and packaging manufacturers producing single-face corrugated board.

It supports automatic length adjustment, continuous cutting, counting, stacking, and conveying, helping reduce manual handling while maintaining stable sheet production.

Key Features ：

2 Ply NC Sheet Cutter:

1. Can store more than 200 order groups, allowing rapid size adjustment without stopping the machine. It can also be connected to a computer system for more efficient production management.
2. The servo-driven control system ensures high cutting accuracy and stable operation.
3. The cutting knife is made from high-quality materials, ensuring durability and a long service life.
4. The feeding roller is covered with anti-slip material, providing excellent wear resistance and accurate board feeding.
5. Equipped with a servo control motor and a 5.7-inch color touchscreen for easy operation and real-time production monitoring.

Cardboard Collector：

1. Designed with a maximum conveying speed of 100 m/min.
2. Suitable for sheet lengths ranging from 400 mm to 1200 mm.
3. Capable of collecting and stacking up to 5 sheets simultaneously.
4. Features automatic counting, automatic stacking, automatic batch discharge, and continuous counting without interrupting production.
5. The maximum stack height can reach 100 mm per batch.
6. Equipped with a unique front-edge alignment system to ensure neat and accurate stacking.
7. Featuring a compact design, small footprint, and reduced labor requirements, making it an ideal choice for medium-speed corrugated board production lines.

Technical Parameters of the 2 Ply NC Sheet Cutter With Collector

Suitable Materials

The machine is suitable for cutting and collecting:

• 2-ply corrugated board
• Single-face corrugated board
• Continuous corrugated web from a single facer line

Different flute profiles can be processed depending on the single facer configuration, such as B flute, C flute, E flute, and other flute types.

Applications

This 2 Ply NC Sheet Cutter with Collector is commonly used in:

• Single facer corrugated board production lines
• Corrugated sheet plants
• Corrugated box factories
• Packaging material manufacturers
• Paper converting factories
• Producers of 2-ply corrugated sheets

Typical products include single-face corrugated sheets used for laminating, packaging materials, and further carton converting processes.

Working Process

1. The continuous corrugated web exits the single facer.
2. The NC controller automatically adjusts the preset sheet length.
3. The servo cutter cuts the board to the required size.
4. Finished sheets enter the collector.
5. The collector counts, aligns, and stacks the sheets automatically.
6. Completed stacks are discharged for the next production process.

Why Choose This Machine

Compared with manual sheet cutting and stacking, this machine provides several practical advantages:

• Accurate sheet length control
• Automatic counting and stacking
• Reduced manual handling
• Stable sheet feeding
• Fast order change
• Compact machine layout
• Continuous production operation
• Convenient touchscreen operation

Recommended Industries

• Corrugated box manufacturers
• Corrugated sheet plants
• Packaging material factories
• Paper converting companies
• Carton production factories

Frequently Asked Questions

1. What is a 2 Ply NC Sheet Cutter with Collector?

It is a machine used in single facer corrugated board production lines to cut continuous 2-ply corrugated board into sheets and automatically count, stack, and collect the finished sheets.

2. What is the machine used for?

It is used for cutting and stacking single-face corrugated board after the single facer, helping improve production efficiency and reduce manual handling.

3. What types of corrugated board can it process?

The machine is designed for 2-ply single-face corrugated board and can work with different flute profiles depending on the production line configuration.

4. What are the advantages of an NC sheet cutter?

An NC sheet cutter provides automatic length adjustment, fast order changes, stable operation, and accurate sheet cutting.

5. Can the machine be connected to a production management system?

Yes. It can store multiple production orders and can be connected to a computer-based production management system.

6. Is the machine easy to operate?

Yes. The machine is equipped with a touchscreen control system that allows operators to set parameters and monitor production status.

7. Can the machine be customized?

Yes. Working width and other specifications can be customized according to production requirements.

8. Do you provide installation and technical support?

Yes. We provide installation guidance, operator training, technical support, and after-sales service.
