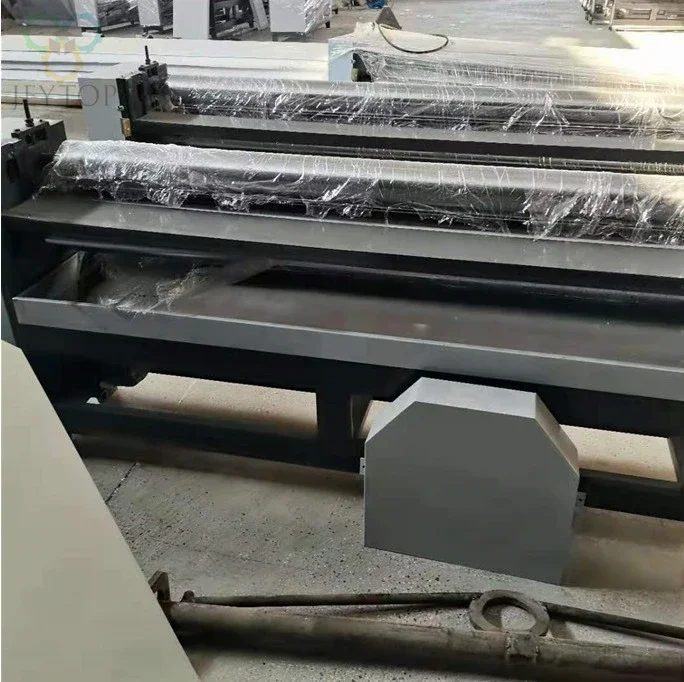

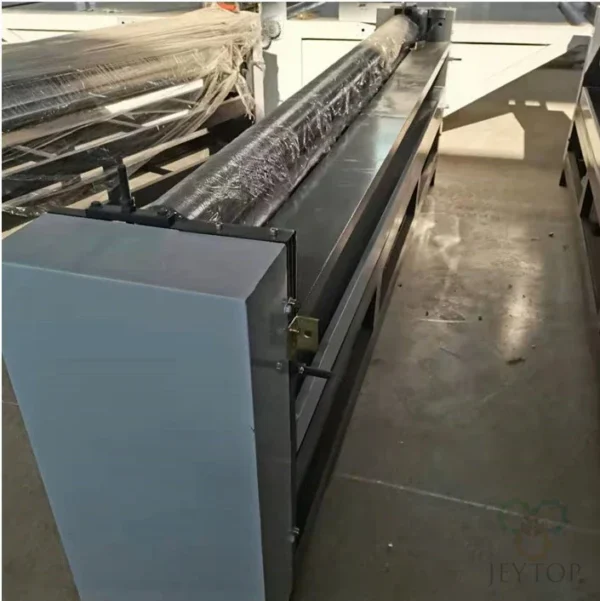

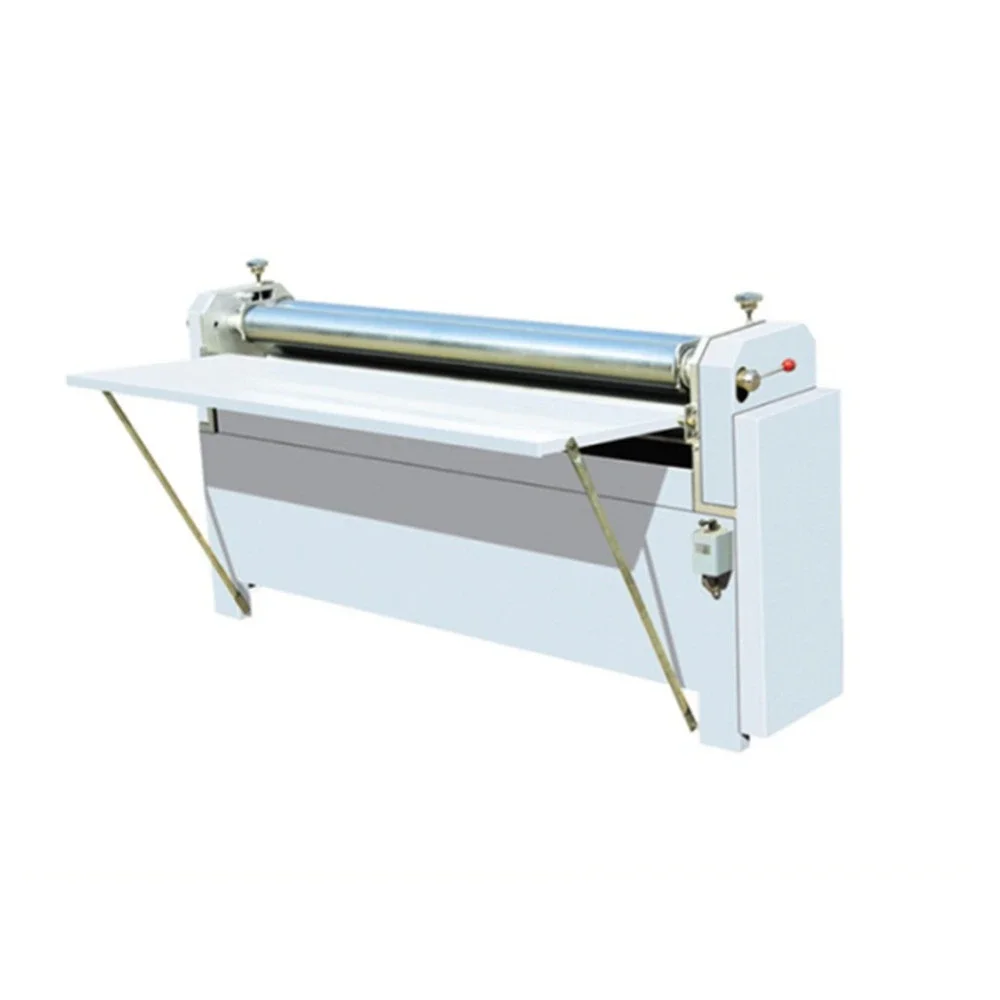

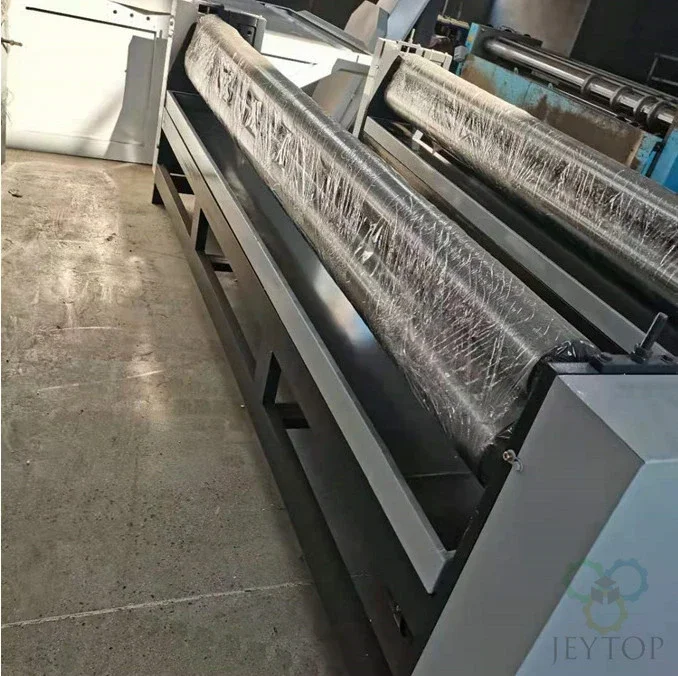

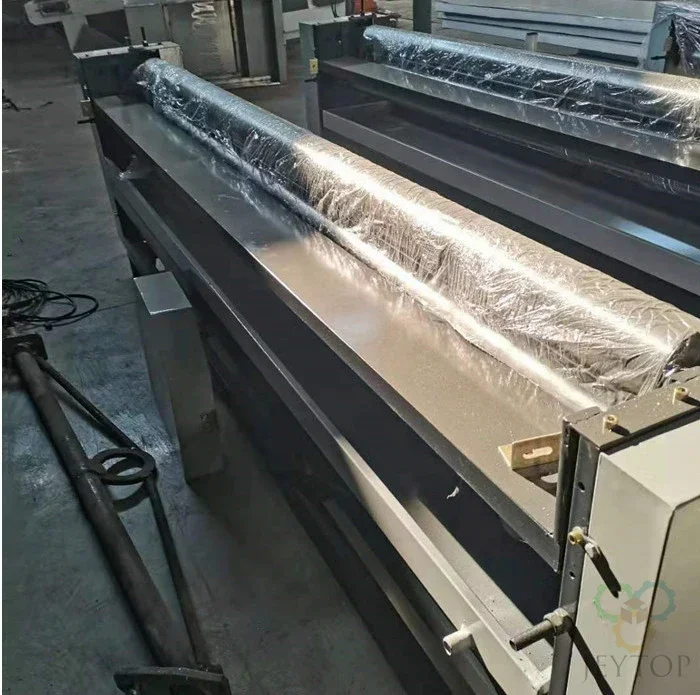

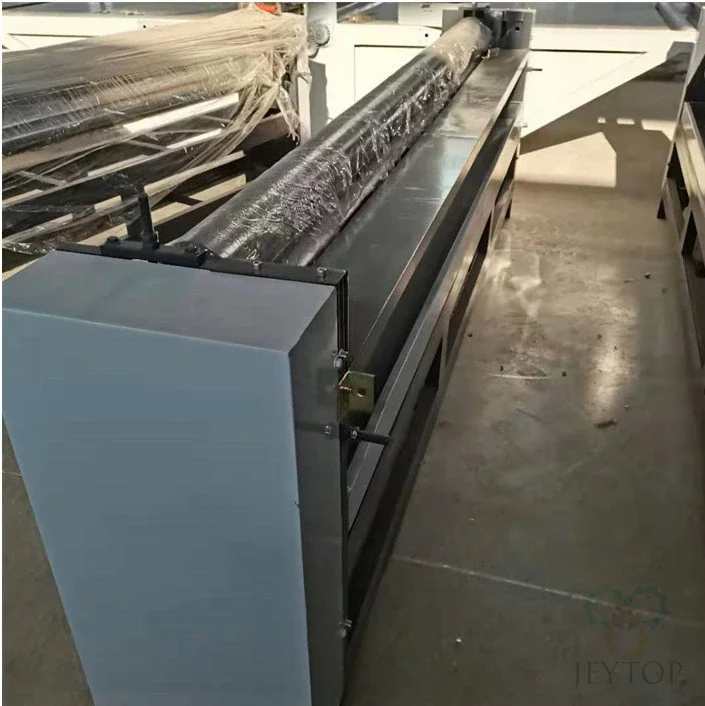

Product Overview

The Manual Corrugated Sheet Pasting Machine is used in semi-automatic corrugated board production lines to apply glue and laminate corrugated sheets with liner paper for the production of corrugated cardboard.

The machine is suitable for manufacturing 3-ply, 5-ply and 7-ply corrugated cardboard. It is commonly used together with a pressing machine to complete the laminating process before slitting and scoring.

Key Features

1. The Manual Corrugated Sheet Pasting Machine is designed for producing various types of corrugated cardboard, including 3-ply, 5-ply and 7-ply boards. It works together with a pressing machine and is mainly used in semi-automatic corrugated board production lines.
2. The machine applies glue to one side or both sides of the corrugated sheet and laminates it with liner paper to produce corrugated cardboard.
3. The glue roller is manufactured from high-quality seamless steel pipe, offering good wear resistance, stable operation, responsive transmission and low operating noise. The machine is suitable for corrugated board laminating applications in the packaging, printing and paper products industries.
4. Typical process for a semi-automatic corrugated board production line:

Mill Roll Stand

↓

Single Facer (2-ply corrugated board)

↓

Manual Corrugated Sheet Pasting Machine (3-ply / 5-ply / 7-ply board laminating)

↓

Pressing Machine

↓

Thin Blade Slitter Scorer

↓

Finished Corrugated Board

Technical parameter

Suitable Materials

Suitable for:

• Kraft Liner
• Testliner
• White Top Liner
• Corrugating Medium
• Single Face Corrugated Board

Applications

Suitable for:

• Corrugated Board Plants
• Carton Box Factories
• Packaging Manufacturers
• Paper Product Manufacturers

Applicable Products:

• Corrugated Sheets
• Corrugated Boxes
• Industrial Packaging
• Food Packaging
• E-commerce Packaging

Working Process

Single Face Corrugated Board

↓

Glue Application

↓

Laminating

↓

Pressing

↓

Slitting & Scoring

↓

Finished Corrugated Board

Why Choose This Machine

• Suitable for semi-automatic production lines
• Uniform glue application
• Supports single-side or double-side gluing
• Durable seamless steel glue roller
• Suitable for producing 3-ply, 5-ply and 7-ply corrugated board
• Easy operation and maintenance

Recommended Industries

Suitable for:

• Corrugated Board Manufacturers
• Carton Box Manufacturers
• Packaging Companies
• Paper Converting Plants

FAQ

What is a Manual Corrugated Sheet Pasting Machine?

It is a laminating machine used in semi-automatic corrugated board production lines to bond corrugated sheets with liner paper.

What types of corrugated board can it produce?

The machine is suitable for producing 3-ply, 5-ply and 7-ply corrugated cardboard.

Can glue be applied to both sides?

Yes. The machine can apply glue to one side or both sides according to production requirements.

What materials can be processed?

It is suitable for kraft liner, testliner, white top liner and single face corrugated board.

Is it suitable for a complete corrugated board production line?

Yes. It is commonly used together with a mill roll stand, single facer, pressing machine and thin blade slitter scorer in a semi-automatic production line.

Do you provide installation and technical support?

Yes. Installation guidance, technical support and after-sales service are available after delivery.
