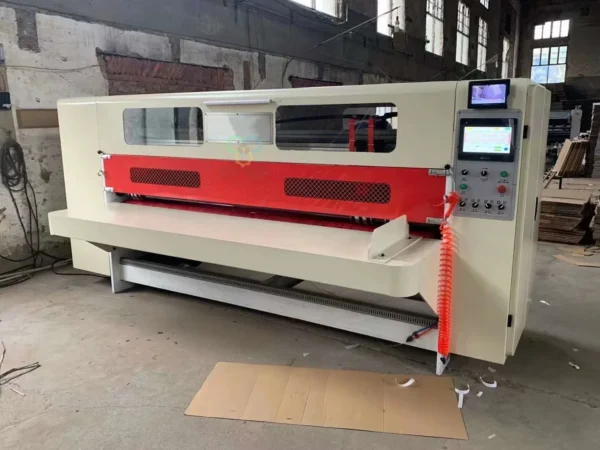

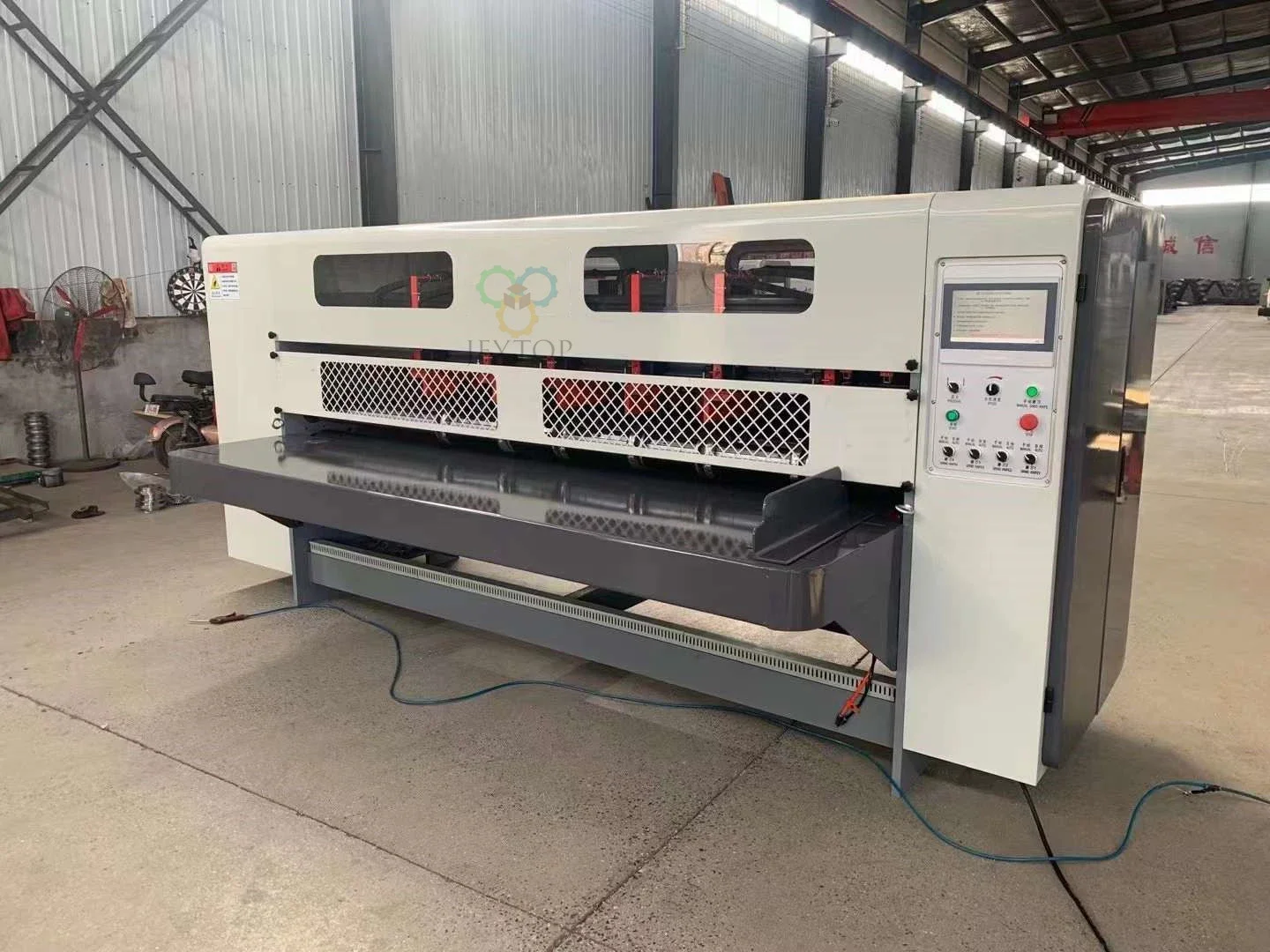

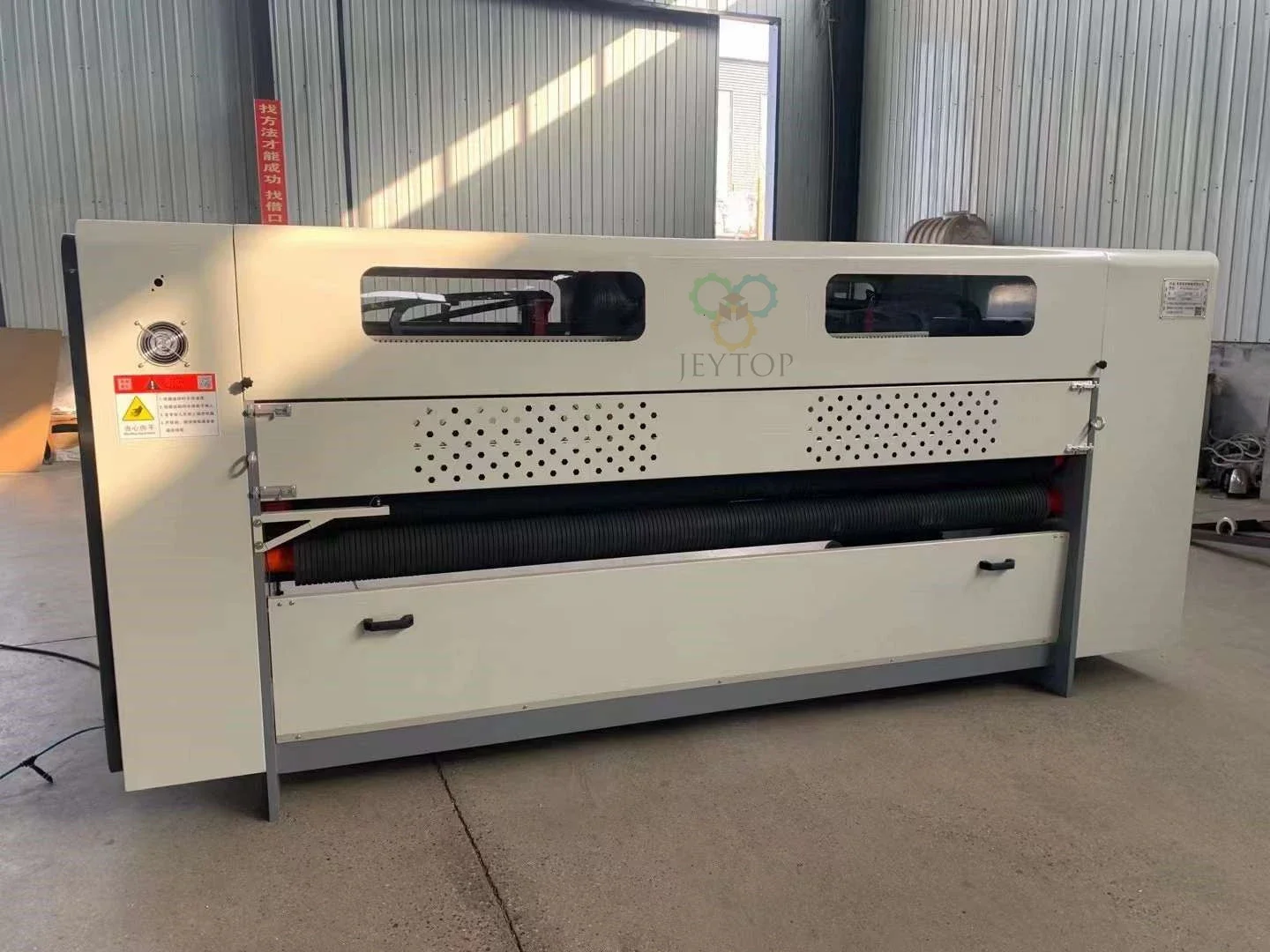

Thin blade slitter scorer machine

The thin blade slitter scorer machine adopts thin blade technology, which overcomes the burrs and flattening caused by traditional thick corner knife slitting.

Description

The thin blade slitter scorer machine adopts thin blade technology, which overcomes the burrs and flattening caused by traditional thick corner knife slitting. The cardboard cut out is not corrugated, no burrs, neat edges, smooth and no flattening, and straightness Good, improve the overall quality and appearance of the cardboard.

Characterics Of the Thin Blade Slitter Scorer Machine:

Paper feeding part:

1) The paperboard size adjustment adopts the screw adjustment mechanism, which is operated by one person, which is simple and rapid.

2) Conveniently adjustable paper table, better adapt to all kinds of cardboard, and paper feeding is stable and accurate.

3) The paper feeding belt adopts rubber seamless belt, which has high friction, long life, low noise and easy maintenance.

4) Double tension control, convenient and reliable.

5) The drive shaft adopts patterned rollers to increase the friction with the paper conveying belt to ensure smooth and high-speed cardboard conveying.

Cutting part:

1) Before and after slitting, Shuangjiaozhou is used to feed the paper at close distances, and the rear pressure line is formed, which is convenient to adjust. It can realize the separate board without pressure line, which overcomes the phenomenon of easy deviation of the back pressure line.

2) The use of electric adjustment of the tool distance, pneumatic automatic locking, improve the degree of automation of the machine, easy to use, accurate adjustment, saving time and labor, and reducing labor intensity.

3) The slitting part adopts tungsten steel alloy blades with sharp blades and long service life. The cardboard cut out by slitting is neat, without indentation and burrs.

4) The creasing part adopts a five-point creasing line, and the creasing gap is adjusted synchronously. The line shape is beautiful, the line does not burst, and it is easy to bend.

5) The knife sharpening device adopts automatic and manual pneumatic sharpening methods, which can work while sharpening the knife to improve work efficiency.

6) The electrical appliances adopt domestic famous brands or imported products with reliable performance.

Technical data of the thin blade slitter scorer machine:

Model 2000 2500 3000
Dimensions 2800*2200*1550 3300*2200*1550 3800*2200*1550
Motor power (kw) 5.5+3.4 5.5+3.4 9.5+5.5
Maximum slitting width (mm) 1800 2300 2500
Maximum paper feed (mm) 2000 2000 2500
Minimum slitting width (mm) 140 140 140
Minimum cutting length (mm) 320 320 435
Minimum crimping width (mm) 55 55 55
Creasing height (mm) 0-10 0-10 0-10
Blade specifications (mm) Φ200*122*1.2 Φ200*122*1.2 Φ200*122*1.2
Creasing wheel (mm) Φ156 Φ156 Φ185
Crimping shaft Φ86 Φ86 Φ110
Slitting line form 4 knives 6 lines / 5 knives 8 lines
