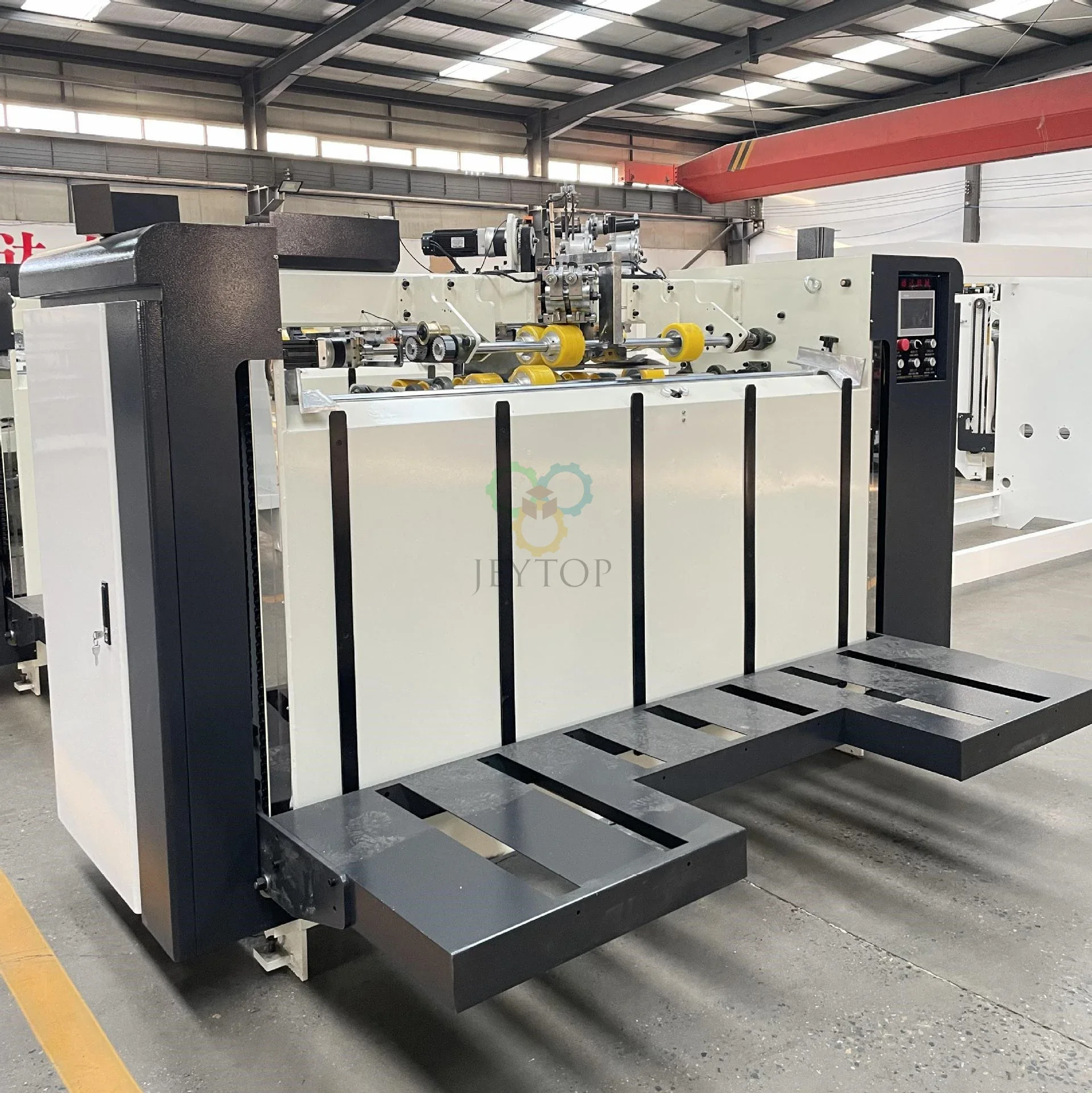

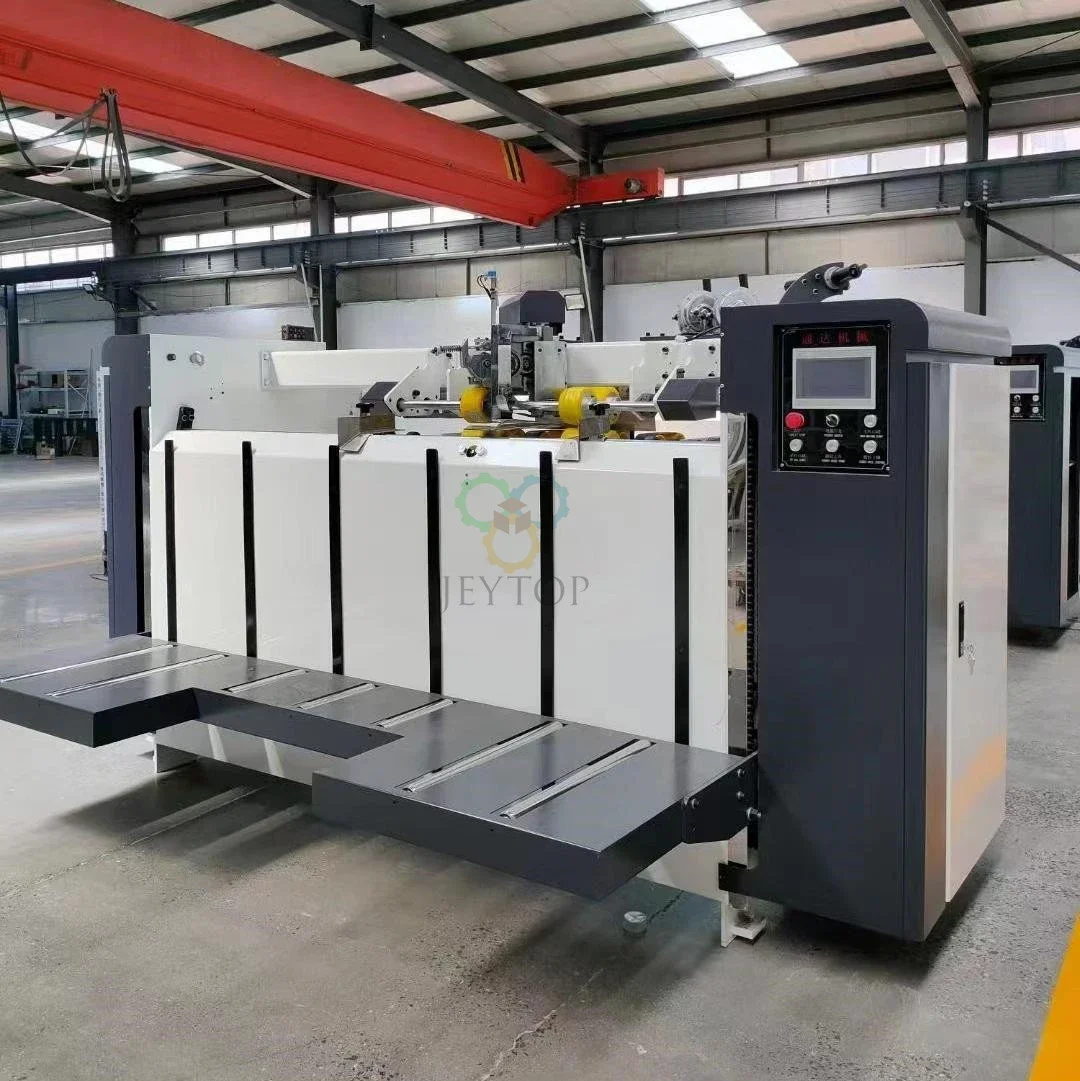

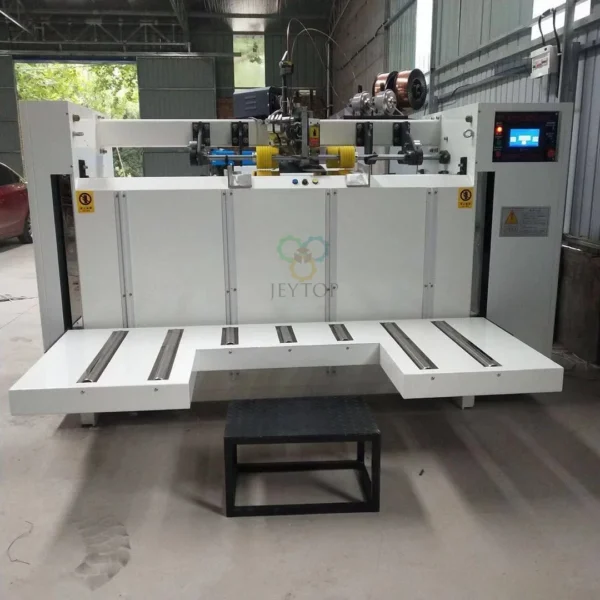

Characteristics of the Semi-auto Carton stitcher machine：
1. A dual-purpose machine for simple forming carton,double forming carton,irregular carton.
2. The size is full electrically controlled and it can be changed the size in 2-3 min.
3. The strengthened,single,double nailing can be finished in a lump.
4. Auto counting,after stacked,it will be auto packing. Available for lagre carton,and nail-feeding is high speed and high efficiency.
5. Nailing distance is free adjustable between 30-120 mm,set by computer.
6. It can make special box without cover.
Technical Parameter:
| Max(L+W)*2 | 2460mm |
| Min(L+W)*2 | 606mm |
| Max(W+H)*2 | 1515mm |
| Min(W+H)*2 | 300mm |
| Height of feeder | 900mm |
| Power | 6HP |
| Size | 2800*2600mm |
| Speed | 450 stitches/min |
| Stitching pitch | 30-100mm |
| Number of stitching | 1-99 stitches |
