Product Overview

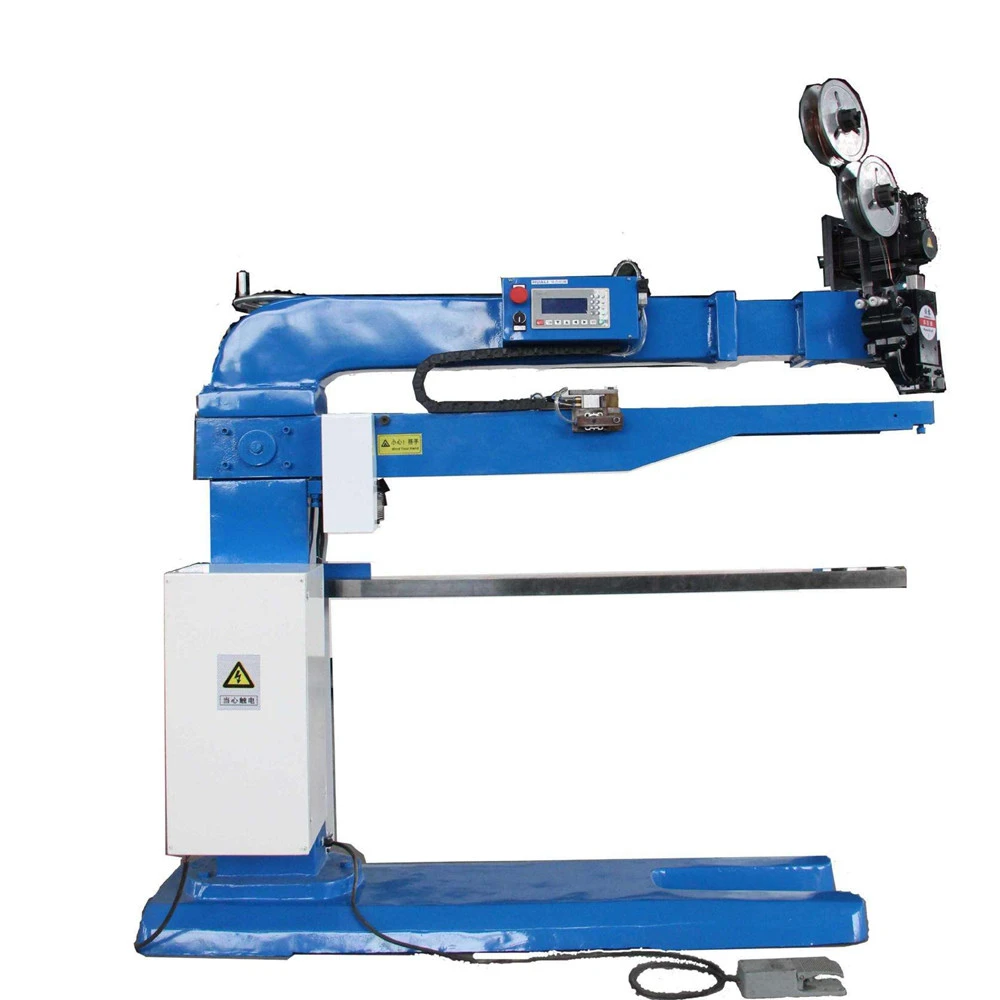

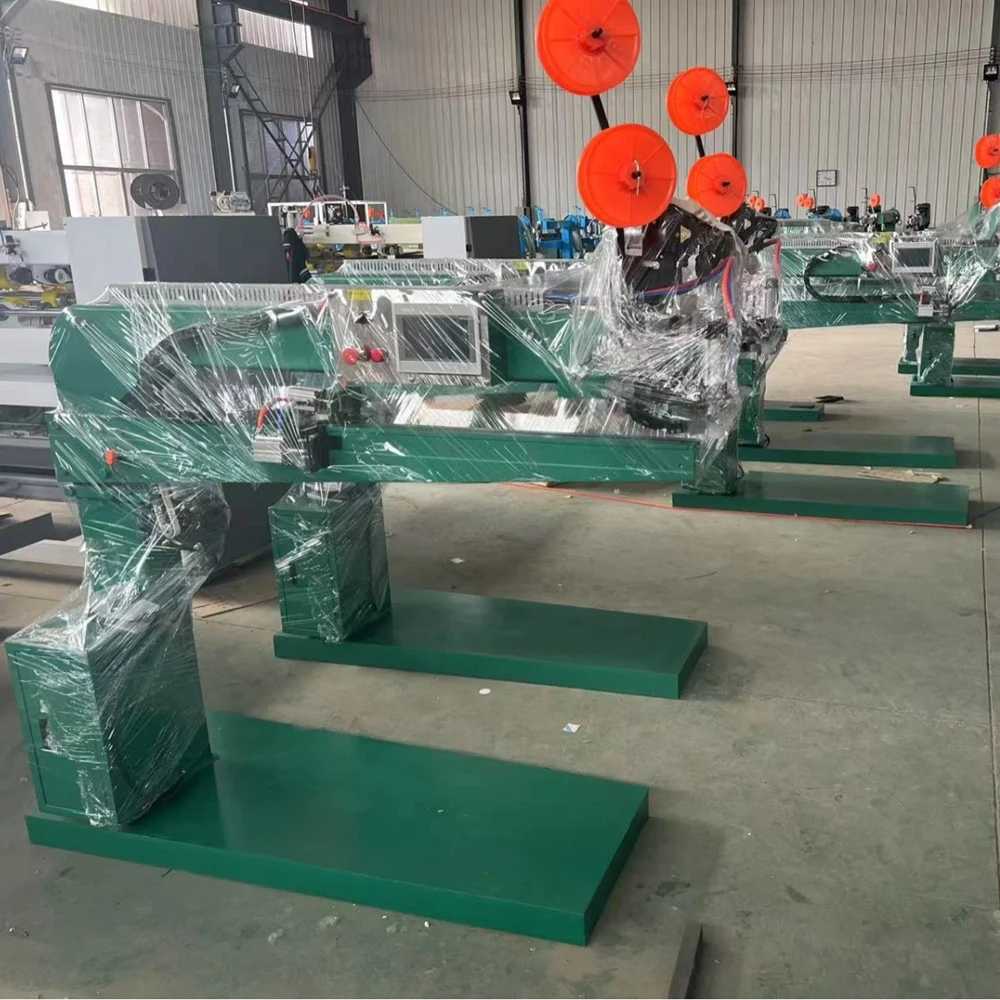

The Double Servo Manual Carton Stitcher Machine is a carton stitching equipment designed for corrugated box production. It uses a dual servo drive system to control the stitching process and provides stable and accurate wire stitching performance.
The machine adopts manual carton feeding with adjustable stitching position, making it suitable for corrugated carton manufacturers requiring flexible production for different carton sizes and small to medium batch orders.
Key Features
- Dual servo drive system controls the stitching process to maintain stable and accurate stitching performance.
- Manual platen pusher design provides flexible operation. The position and size of the stitching head can be adjusted according to different carton specifications.
- Suitable for stitching corrugated cartons with different sizes and structures.

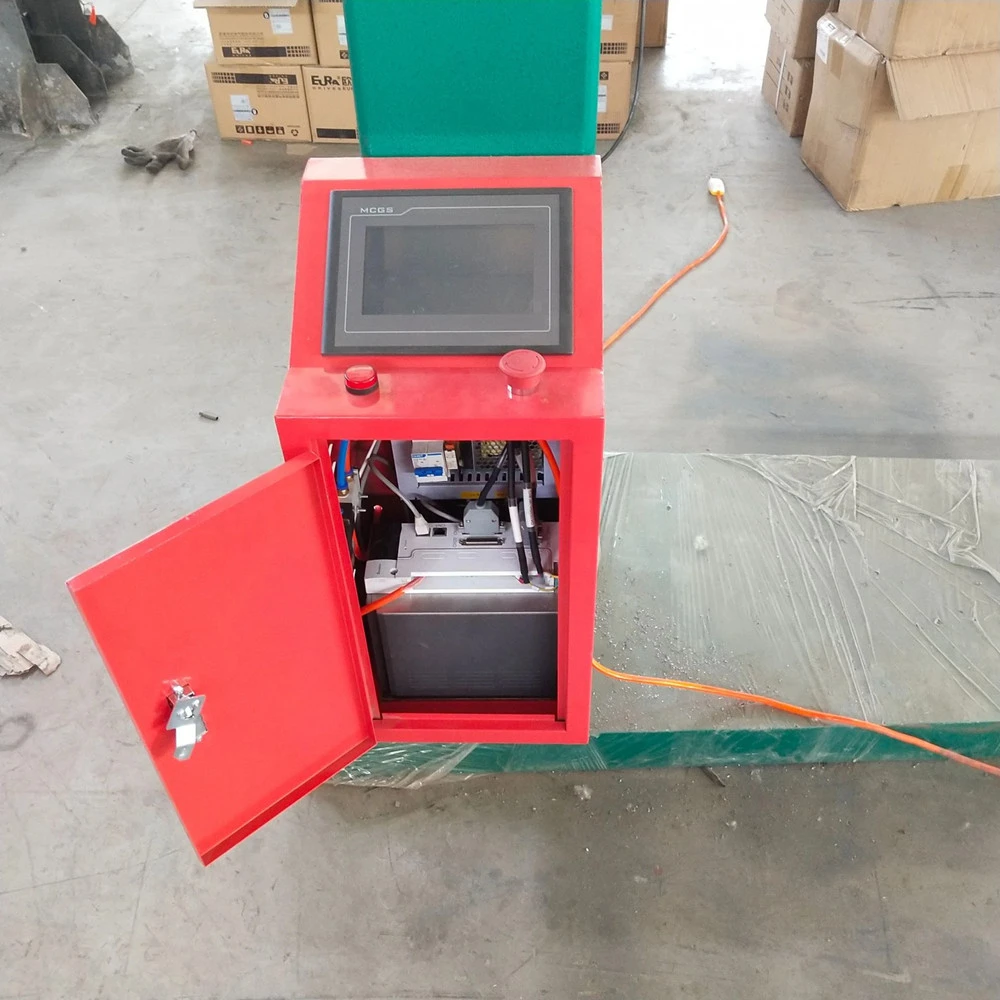

- The multi-function operation panel allows parameter setting and machine operation adjustment.
- Automatic deviation correction system helps adjust carton positioning before stitching to improve stitching accuracy.
- The stitching unit adopts a stable mechanical structure to ensure consistent carton stitching quality.
- The machine is designed with convenient operation and adjustment for different production requirements.

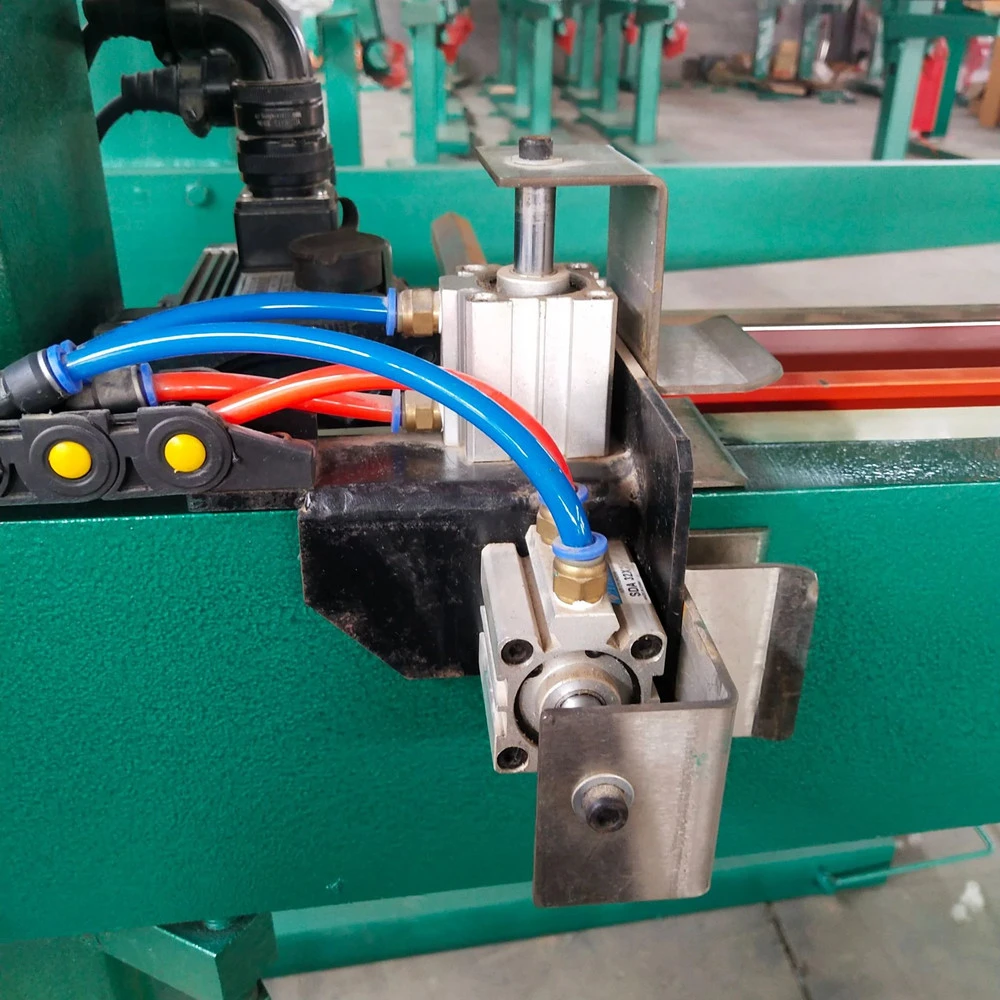

- Pneumatic, electrical and operating components are selected according to machine configuration requirements.
- The stitching result provides firm carton joining with neat and consistent wire placement.
Technical Parameters
| Model | Speed | Thickness | Length of the arm | Machine size | Power (Kw) |
| MJDX-3-1200 | 250/min | 3,5,7-layer board | 1200mm | 1.7*0.7*1.82m | 0.37 |
| MJDX-3-1400 | 250/min | 3,5,7-layer board | 1400mm | 1.9*0.7*1.82m | 0.75 |
| MJDX-3-1600 | 250/min | 3,5,7-layer board | 1600mm | 2.1*0.7*1.82m | 0.75 |
| MJDX-3-1800 | 250/min | 3,5,7-layer board | 1800mm | 2.3*0.7*1.82m | 0.75 |
Suitable Materials
- 3 Ply Corrugated Board
- 5 Ply Corrugated Board
- Other corrugated board specifications according to machine configuration
Applications
Suitable for:
- Corrugated Box Manufacturers
- Carton Factories
- Packaging Companies
Applicable Products:
- Corrugated shipping cartons
- Industrial packaging cartons
- Heavy-duty cartons
- Standard stitched corrugated boxes
Working Process
Corrugated Carton Preparation
↓
Manual Carton Feeding
↓
Carton Position Adjustment
↓
Automatic Deviation Correction
↓
Wire Stitching
↓
Finished Carton Output
Why Choose This Machine
- Dual servo drive provides accurate control of the stitching process.
- Manual feeding design offers flexibility for different carton sizes.
- Adjustable stitching position supports various carton specifications.
- Suitable for factories requiring flexible carton stitching production.
- Simple operation and adjustment help reduce setup difficulty.
Recommended Industries
Suitable for:
- Corrugated Packaging Plants
- Carton Manufacturing Companies
- Industrial Packaging Producers
- General Packaging Suppliers
FAQ
1. What is a double servo manual carton stitcher machine?
It is a corrugated carton stitching machine that uses a dual servo drive system to control the stitching process while requiring manual carton feeding.
2. What types of cartons can this machine stitch?
It is mainly used for corrugated cartons. The suitable carton thickness and structure depend on the machine configuration.
3. What is the advantage of a dual servo drive system?
The dual servo system provides more precise control of stitching movements and helps maintain consistent stitching quality.
4. Is this machine fully automatic?
No. This machine requires manual carton feeding and positioning, while the stitching process is controlled by the machine.
5. Can the stitching position be adjusted?
Yes. The stitching head position and size settings can be adjusted according to different carton specifications.
6. What is the difference between a manual carton stitcher and an automatic carton stitcher?
A manual carton stitcher requires operators to feed and position the cartons manually, while an automatic carton stitcher integrates automatic feeding, folding, stitching, counting and stacking functions. The manual type is more suitable for flexible production with different carton sizes and smaller batch orders.
