Product Overview

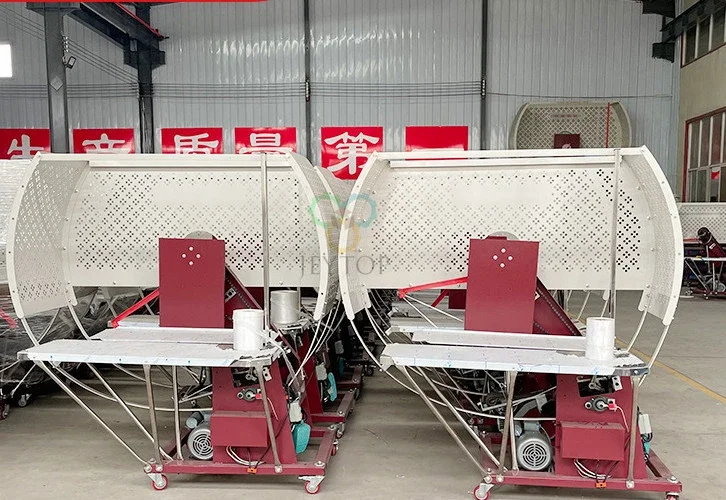

The Manual PE Strapping Machine is designed for bundling corrugated cartons, paper boxes, and other lightweight packaging products using PE strapping rope. The machine adopts a mechanical knotting system, where the PE rope is wrapped around the carton and secured through a mechanical knot instead of heat sealing.
During operation, operators place the carton into the positioning area and activate the machine by foot pedal. The machine automatically completes rope feeding, wrapping, knotting, and cutting, providing a simple and efficient solution for carton bundling operations.
Key Features
Mechanical Knotting System
The machine uses a mechanical bird-mouth knotting mechanism to form a PE rope knot. The connection is created through PE rope knotting rather than heat melting, providing a reliable and easy-to-release bundle.
No Heat Sealing Required
The machine does not require a heating system or hot melt sealing process. The PE rope is secured through mechanical knot formation, reducing the need for heating components.
PE Strapping Rope Application
The machine uses soft PE strapping rope, which is suitable for packaging applications where surface protection is important. The rope helps reduce the risk of scratching or damaging printed carton surfaces.
Foot Pedal Operation
The machine is operated by foot pedal control. After the carton is positioned, the operator can trigger the bundling cycle while keeping both hands available for carton handling.
No Air Supply Required
The machine operates with electric power and does not require an external air compressor.
No Metal Buckles Required
The mechanical knotting method eliminates the need for metal buckles, reducing additional consumable requirements.
Compact Structure
The machine features a compact design and requires limited installation space, making it suitable for small and medium-sized carton factories and packaging workshops.
Technical Parameters
| Machine model | DQ-30 | DQ-60 | DQ-70 | DQ-100 | DQ-120 |
| Max bale size | 300*200mm | 600*350mm | 700*500mm | 1000*600mm | 1200*800mm |
| Min bale size | 100*80mm | 200*100mm | 200*100mm | 200*160mm | 400*200mm |
| Baling speed | 1.2 seconds/knot | 1.2 seconds/knot | 1.2 seconds/knot | 1.2 seconds/knot | 1.2 seconds/knot |
| Tying rope model | PE28# | PE28# | PE28# | PE28# | PE28# |
| Machine size | 1000*800*1300mm | 1000*1000*1500mm | 1300*1060*1550mm | 1550*1160*1620mm | 1750*1200*1700mm |
Technical parameters may vary according to machine configuration.
Suitable Materials
The machine is suitable for:
- Corrugated cartons
- Printed carton boxes
- Paper boxes
- Lightweight packaging products
Applications
The machine is used for:
- Carton bundling
- Finished box packaging
- Paper product bundling
- Transportation package securing
Typical products include:
- Corrugated cartons
- E-commerce packaging boxes
- Food packaging boxes
- Printed cartons
- Books and paper products
Working Process
Carton Positioning
↓
Foot Pedal Activation
↓
PE Rope Feeding and Wrapping
↓
Mechanical Bird-Mouth Knotting
↓
Excess Rope Cutting
↓
Finished Bundle Removal
Why Choose This Machine
- Mechanical knotting without heat sealing
- Uses low-cost PE strapping rope
- No air compressor required
- No metal buckle required
- Foot pedal operation for simple handling
- Suitable for printed cartons requiring surface protection
- Compact structure with small installation space
- Suitable for flexible carton bundling operations
Recommended Industries
Suitable for:
- Corrugated carton manufacturers
- Printing and packaging companies
- E-commerce packaging suppliers
- Food packaging producers
- Paper product manufacturers
- Small and medium packaging workshops
FAQ
1. What is a Manual PE Strapping Machine used for?
A Manual PE Strapping Machine is used for bundling cartons and paper products with PE strapping rope through a mechanical knotting process.
2. How does this machine tie the PE rope?
The machine uses a mechanical bird-mouth knotting mechanism. The PE rope is wrapped around the carton, and the internal cam mechanism drives the knotting parts to form a self-locking rope knot.
3. Does this machine use heat sealing?
No. This machine does not use heat sealing. The PE rope is secured through mechanical knotting instead of melting or welding.
4. Does the machine require an air compressor?
No. The machine does not require compressed air and can operate with standard electrical power supply.
5. Does the machine require metal buckles?
No. The machine uses PE rope knotting and does not require additional metal buckles.
6. Is the knot easy to remove after transportation?
The mechanical knot structure allows the bundle to be opened more conveniently compared with some fixed sealing methods. The actual opening method depends on rope tension and packaging requirements.
7. What types of products can be bundled?
The machine is suitable for corrugated cartons, paper boxes, printed packaging, and other lightweight packaging products.
