Product Overview

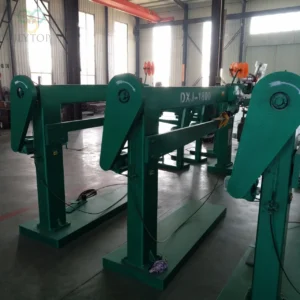

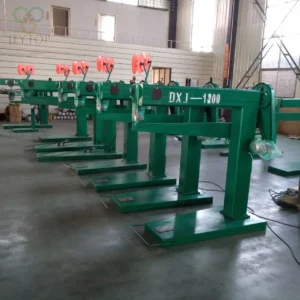

The Double Servo Manual Carton Stitcher Machine is a carton stitching equipment designed for corrugated box production. It uses a dual servo drive system to control the stitching process and provides stable and accurate wire stitching performance.
The machine adopts manual feeding with a platen pusher system. Operators place folded carton blanks onto the pusher, which delivers the cartons to the stitching head for automatic stitching. The stitching head position can be adjusted according to different carton sizes, making the machine suitable for flexible production and small to medium batch orders.
Key Features
- Dual servo drive system controls the stitching process to maintain stable and accurate stitching performance.
- Manual platen pusher design provides flexible operation. The position and size of the stitching head can be adjusted according to different carton specifications.
- Suitable for stitching corrugated cartons with different sizes and structures.
- The multi-function operation panel allows parameter setting and machine operation adjustment.
- Automatic deviation correction helps align the carton during feeding to improve stitching accuracy.
- The stitching unit adopts a stable mechanical structure to ensure consistent carton stitching quality.
- The machine is designed with convenient operation and adjustment for different production requirements.
- Pneumatic, electrical and operating components are selected according to machine configuration requirements.
- The stitching result provides firm carton joining with neat and consistent wire placement.
Technical Parameters
| Model | Speed | Applicable Board | Length of the arm | Machine size | Power (Kw) |
| MJDX-3-1200 | 250/min | 3-ply / 5-ply / 7-ply corrugated board | 1200mm | 1.7*0.7*1.82m | 0.37 |
| MJDX-3-1400 | 250/min | 3-ply / 5-ply / 7-ply corrugated board | 1400mm | 1.9*0.7*1.82m | 0.75 |
| MJDX-3-1600 | 250/min | 3-ply / 5-ply / 7-ply corrugated board | 1600mm | 2.1*0.7*1.82m | 0.75 |
| MJDX-3-1800 | 250/min | 3-ply / 5-ply / 7-ply corrugated board | 1800mm | 2.3*0.7*1.82m | 0.75 |
Suitable Materials
3 Ply Corrugated Board
5 Ply Corrugated Board
7 Ply Corrugated Board
Applications
Suitable for:
- Corrugated Box Manufacturers
- Carton Factories
- Packaging Companies
Applicable Products:
- Corrugated shipping cartons
- Industrial packaging cartons
- Heavy-duty cartons
- Standard stitched corrugated boxes
Working Process
Folded Carton Preparation
↓
Manual Feeding
↓
Platen Pusher Feeding
↓
Automatic Alignment Correction
↓
Wire Stitching
↓
Finished Carton Output
Recommended Industries
Suitable for:
- Corrugated Packaging Plants
- Carton Manufacturing Companies
- Industrial Packaging Producers
- General Packaging Suppliers
FAQ
1. What is a double servo manual carton stitcher machine?
It is a corrugated carton stitching machine that uses a dual servo drive system to control the stitching process while requiring manual carton feeding.
2. What types of cartons can this machine stitch?
It is suitable for stitching 3-ply, 5-ply and 7-ply corrugated cartons. The maximum carton size depends on the selected model.
3. What is the advantage of a dual servo drive system?
The dual servo system provides more precise control of stitching movements and helps maintain consistent stitching quality.
4. Is this machine fully automatic?
No. This machine requires manual carton feeding and positioning, while the stitching process is controlled by the machine.
5. Can the stitching position be adjusted?
Yes. The stitching head position and size settings can be adjusted according to different carton specifications.
6. What is the difference between a manual carton stitcher and an automatic carton stitcher?
A manual carton stitcher requires operators to feed and position the cartons manually, while an automatic carton stitcher integrates automatic feeding, folding, stitching, counting and stacking functions. The manual type is more suitable for flexible production with different carton sizes and smaller batch orders.
