Product Overview

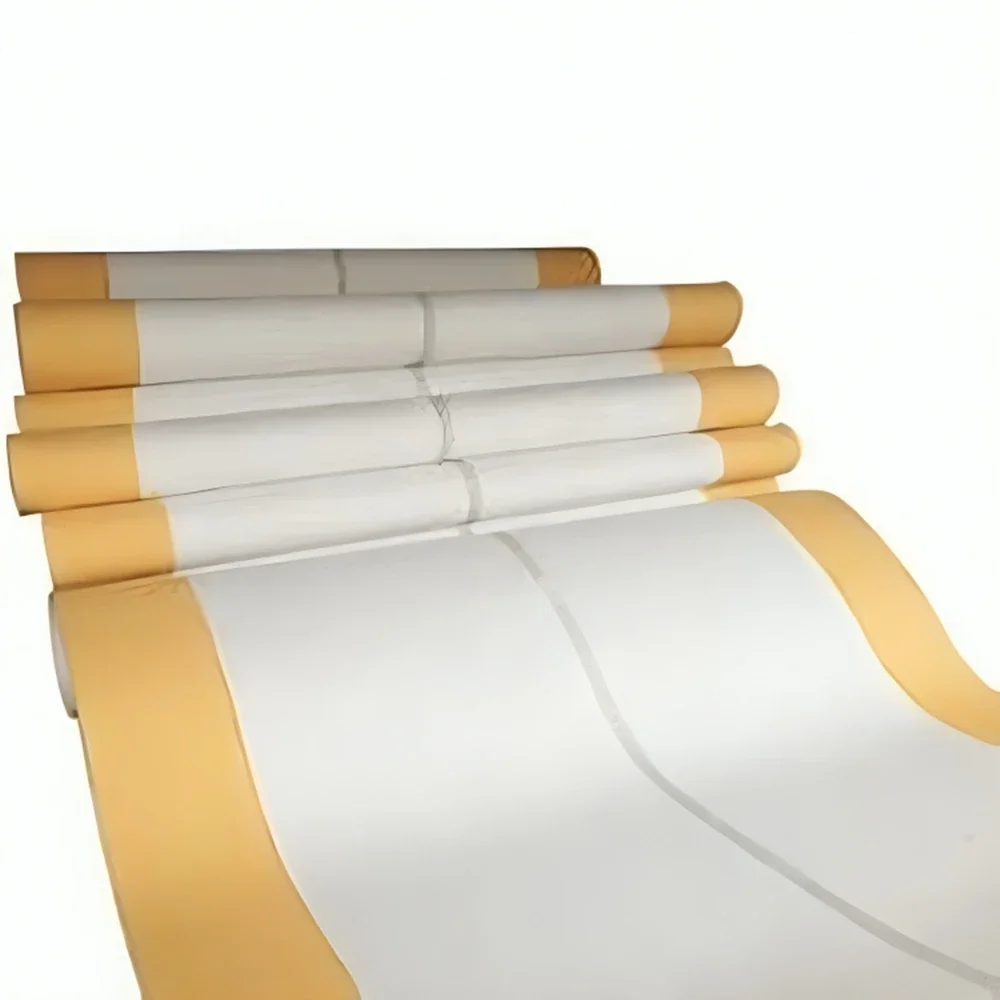

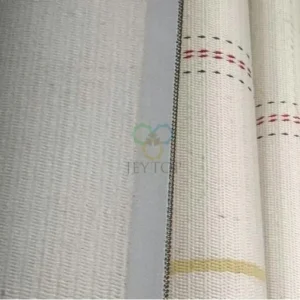

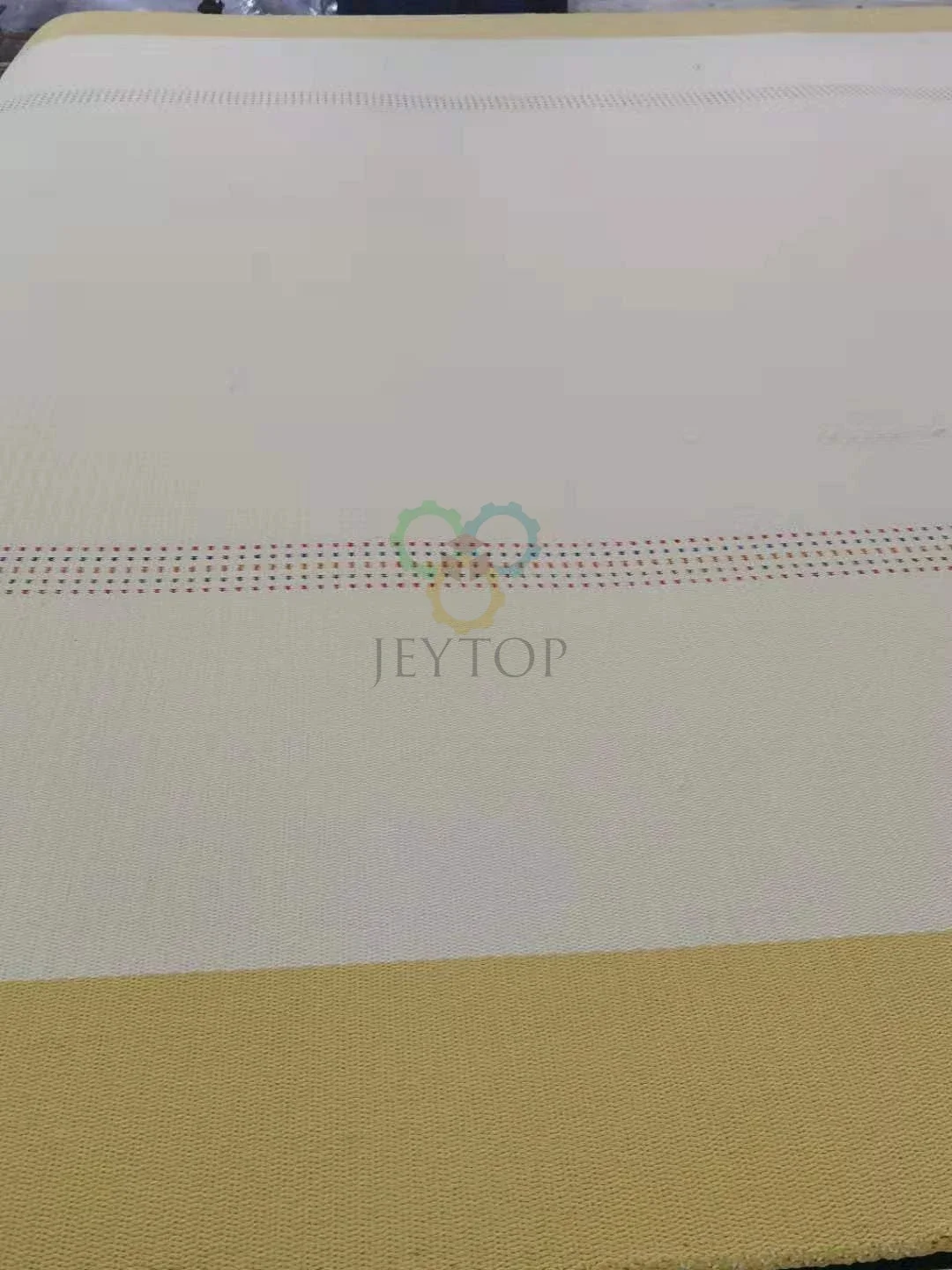

The Kevlar Edge Corrugator Belt 200mm is a specialized corrugator belt designed with Kevlar® aramid fiber reinforced edges on both sides. The reinforced edge structure provides improved resistance to edge wear and fraying during continuous operation.
The belt combines a high-strength woven base, heat-resistant inner layer, and air-permeable structure to meet the operating requirements of high-temperature and high-speed corrugator lines. Width, length, splice type, and other specifications can be customized according to different machine requirements.
Key Features

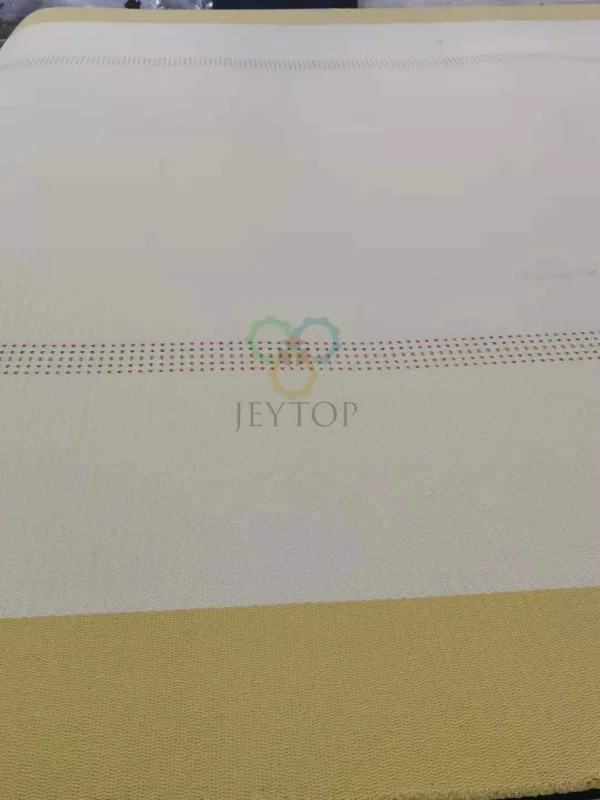

- Kevlar Reinforced Edge: Both belt edges are reinforced with Kevlar® aramid fiber, providing excellent abrasion resistance and improved edge durability in demanding operating environments.
- High Heat Resistance: The inner layer of the belt can withstand temperatures up to 350℃, making it suitable for high-temperature sections of corrugator double facer machines.
- DuPont® Aramid Material: The Kevlar® material used is sourced from DuPont® (USA), providing consistent quality and high-performance thermal and mechanical properties.
- Stable Operation: Kevlar® edge reinforcement improves tracking stability, reduces edge fraying, and supports reliable operation in high-speed and high-load corrugation lines.
- Air Permeable Base: The woven base structure maintains suitable air permeability for vacuum suction systems used in corrugator hot plate sections.
- Customized Specifications: Belt width, length, thickness, splice type, and edge structure can be customized according to machine requirements.
Technical Parameters
| Parameter | Value |
| Thickness | 8 – 9 mm |
| Width | 1400 – 3200 mm |
| Length | Customized as per machine requirement |
| Weight | Approx. 7.5 – 8.5 kg/m² |
| Temperature Resistance | Inner Layer: ≤350℃ |
| Edge Type | Kevlar® Edge, 200mm width (each side) |
| Edge Material Origin | DuPont® (USA) Aramid Fiber |
| Splice Type | Clipper (metal fastener) |
| Air Permeability | 20 – 40 m³/m²·h (typical range) |
| Suitable Speed | ≤250 m/min |
Compatible Machines

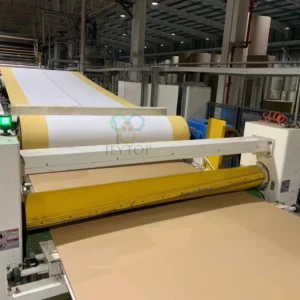

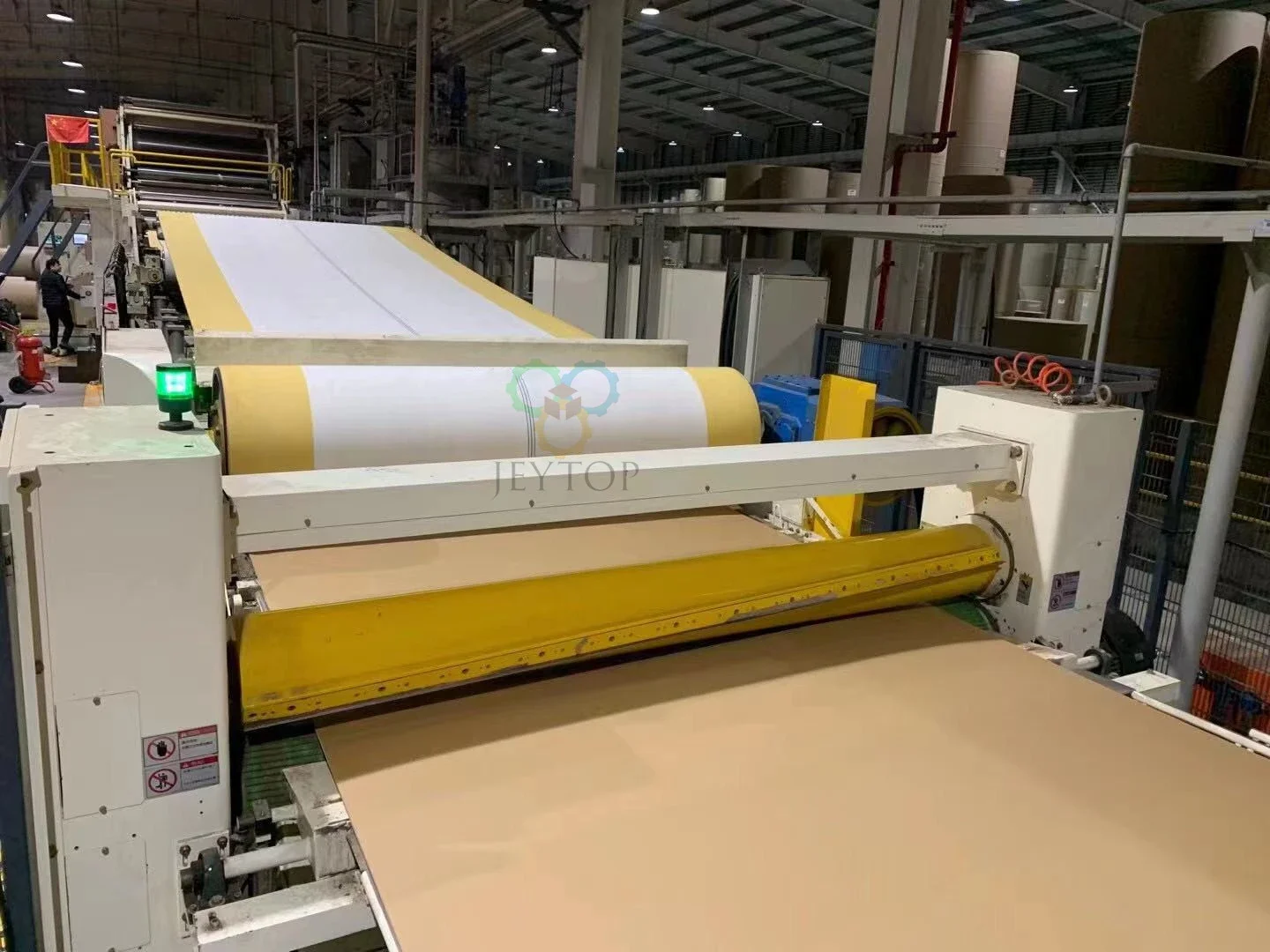

The Kevlar Edge Corrugator Belt is designed for double facer sections of corrugated board production lines and is suitable for corrugator machines requiring reinforced belt edges.
Compatible with:
- BHS Corrugator Lines
- TCY Corrugator Lines
- Champion Corrugator Lines
- JS Corrugator Lines
- Hsieh Hsu Corrugator Lines
- Other corrugator machines with matching belt specifications
Customized belts are available according to:
- Machine model
- Working width
- Belt length
- Belt thickness
- Edge structure
- Splice requirements
Applications
The Kevlar Edge Corrugator Belt is suitable for corrugator lines operating under demanding conditions where stronger edge reinforcement is required.
Typical applications include:
- Replacement of standard corrugator belts requiring improved edge wear resistance
- Double facer sections operating at higher speeds and temperatures
- Wide-width corrugator lines requiring reinforced belt edges
- Continuous production environments where belt edge stability is important
FAQ
What is a Kevlar edge corrugator belt used for?
A Kevlar edge corrugator belt is used in the double facer section of corrugated board production lines. It transports corrugated board through the hot plate section while operating under high temperature and continuous working conditions.
What is the advantage of Kevlar reinforced edges?
Kevlar® reinforced edges provide higher resistance against abrasion and edge fraying compared with standard belt edges. This structure is suitable for applications where the belt edges experience greater wear during operation.
What temperature can this corrugator belt withstand?
The inner layer of the belt can withstand temperatures up to 350℃. Actual working temperature depends on the corrugator machine design and operating conditions.
How is this belt different from a common edge corrugator belt?
A common edge corrugator belt uses a standard edge structure for general applications, while the Kevlar edge belt adds aramid fiber reinforcement on both sides. It is designed for corrugator lines requiring stronger edge protection and more demanding operating conditions.
Can the Kevlar Edge Corrugator Belt be customized?
Yes. The belt width, length, thickness, splice type, and edge structure can be customized according to customer machine specifications.
Q6: How do I confirm whether this belt fits my machine?
Please provide your corrugator machine model, existing belt dimensions, technical drawing, or belt specifications. We will check the suitable belt structure according to your equipment requirements.
