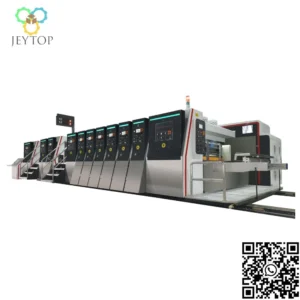

This high definition flexo printer slotter die cutter is a fully automated carton machinery production equipment integrating multiple functions such as paper feeding, printing, drying, slotting, and die-cutting. It is mainly used for high-definition printing of corrugated cardboard. From paper feeding, printing, drying, slotting to die-cutting, it can be formed in one go, with high register accuracy and efficiency. This equipment not only saves labor but also embodies the working concepts of high definition, high speed, high efficiency, and low consumption. All electrical appliances and equipment accessories adopt internationally renowned brands, with stable and reliable quality. It uses a human-machine interface, which is simple, efficient, economical, and easy to operate.
Characteristics of the high definition flexo printer：
- Designed in accordance with European concepts, it is more reliable in functionality and safety, and has passed the European CE safety certification.
- This machine is mainly designed for high-definition printing of corrugated cardboard to replace part of offset printing. It can realize printing, glazing, drying, transverse cutting, and one-time forming, with high register accuracy and efficiency.
- Fully automatic production control system: Just input the size information of the order in the touch screen of the operation console, and the paper feeding part, printing part, and die-cutting part will automatically adjust all gaps, axial, circumferential, and other parameters. It is accurate and reliable, without manual intervention, improving the production efficiency of enterprises.
- The fully automatic production control system can store production orders and automatically change orders, making order changing faster and operation more convenient.
- Each unit is driven by an independent servo motor, and paper is fed by full vacuum adsorption to ensure a high precision register accuracy of ±0.25mm.
- The glazing, drying, and transverse cutting unit is driven by an independent servo motor (all from Rexroth servo motors in Germany), and paper is fed by full vacuum adsorption to ensure a high precision register accuracy of ±0.4mm.
- Network management: Remote maintenance function can be optionally configured as needed (Internet access is required).
- Dust removal system: Installed behind the paper feeding part. It is combined with an electrostatic elimination device, 5 rows of brush dust removal, and strong air suction, making the dust removal effect of this machine better.
- All main transmission gears have high-precision transmission. They are made of high-quality alloy steel, undergo carburizing and quenching treatment, and grinding processing. The gears have high precision, good wear resistance, and stable operation.
- It is suitable for high-dot printing of coated paper, with a maximum printing screen of 133LPI.
- The vacuum adsorption box adopts the most advanced technology. The supporting bearings of the conveying roller shafts are all equipped with oil injection cups and adopt a centralized oil supply method to ensure the high-speed operation of the machine.
- In order to ensure printing clarity, this machine is equipped with a glazing part to perform synchronous glazing for the products of the printing part, making the printed products more exquisite and comparable to offset printing effects.
- In order to ensure the quality of printed products in the printing part and improve the printing speed, this machine specially adds an infrared drying system to ensure high-quality printing during high-speed printing of the equipment.
Technical Parameter of High Definition Flexo Printer：
| NO | Parameter name | Unit | Specifications |
| 1 | Model | | 920 | 1224 | 1628 |
| 2 | Max speed | pcs/min | 300 | 200 | 200 |
| 3 | Economic speed | pcs/min | 200-250 | 150-180 | 150 |
| 4 | Max feeder paper size | mm | 900×2100 | 1200×2500 | 1600×2500 |
| 5 | Min paper | mm | 260×550 | 320×550 | 350×600 |
| 6 | Max printing size | mm | 900×2000 | 1200×2400 | 1600×2400 |
| 7 | Interval one paperboard feeder size | mm | 1100×2100 | 1400×2500 | 1800×2500 |
| 8 | Color accuracy | mm | ±0.5 | +0.5 | +0.5 |
| 9 | Standard plate thickness | mm | 6-7.2 | 6-7.2 | 6-7.2 |
| 10 | Thickness of the board | mm | 2–11 | 2–11 | 2–11 |
| 11 | Minimum slotting spacing | mm | 280×80×280×80 | 280x80x280x80 | 300x100x300x100 |
| 12 | Maximum depth of slotting | mm | 225 | 300 | 400 |
