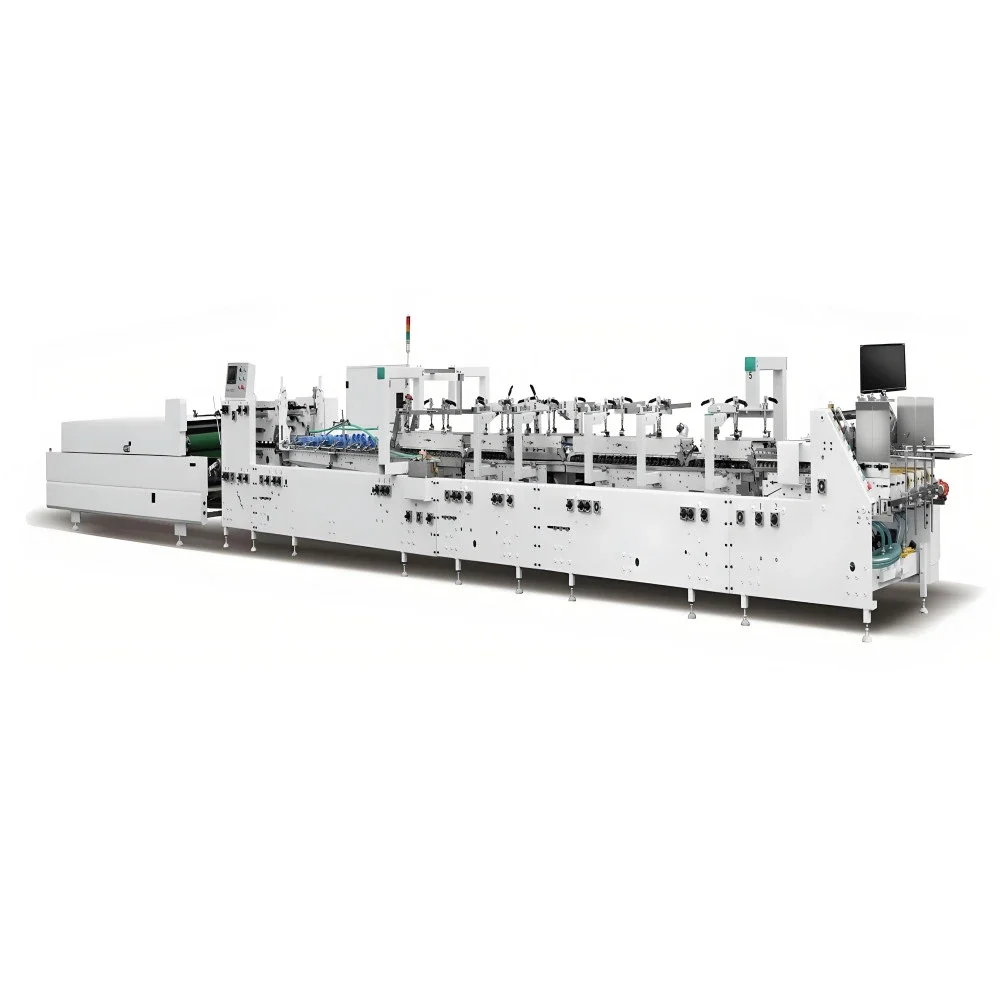

Automatic Box Pasting Machine

Product Overview

The automatic box pasting machine is a post-printing converting machine designed for automatic forming of folding cartons and micro corrugated cartons. It completes feeding, pre-folding, glue application, folding, pressing and collection processes to convert die-cut carton blanks into finished boxes.

According to different carton structures, the machine can be configured for straight line boxes, crash lock bottom boxes and other folding carton styles. It is widely used for pharmaceutical boxes, cosmetic cartons, food packaging boxes, daily product packaging and micro corrugated carton production.

Important Difference:
The automatic box pasting machine is mainly designed for folding cartons and micro corrugated cartons.
For three-layer and five-layer corrugated shipping cartons, customers should select an automatic folder gluer (corrugated box gluer), which is designed for corrugated carton production.

Key Features

• Automatic processing integrates carton feeding, pre-folding, gluing, folding, pressing and collection.
• The machine can produce standard four-fold crash lock bottom boxes in one continuous process.

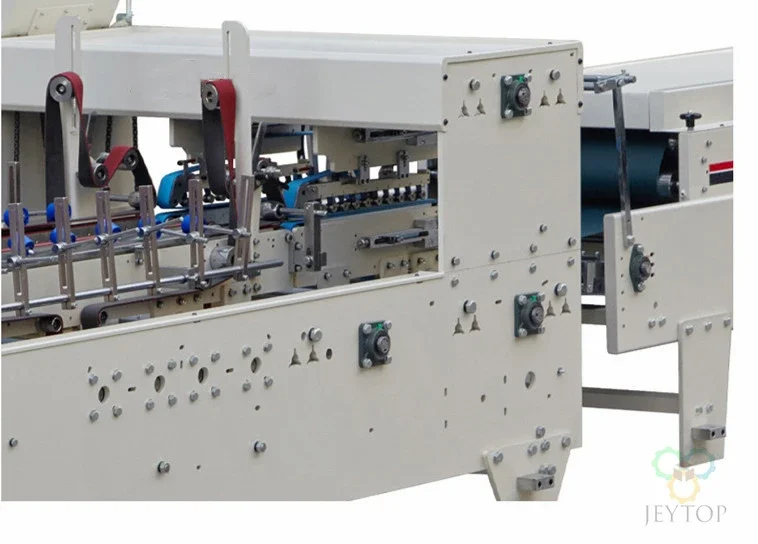

• The pre-folding section completes 180° folding and third-line 135° pre-folding according to carton structure, helping finished cartons open easily and making them suitable for automatic packing lines.

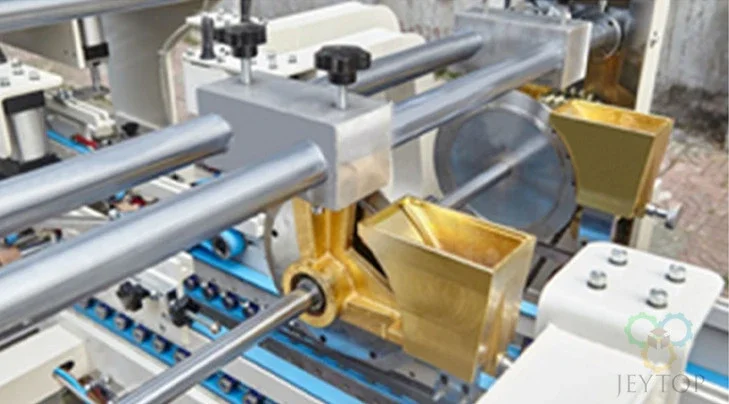

• The gluing unit provides adjustable glue application according to carton requirements.

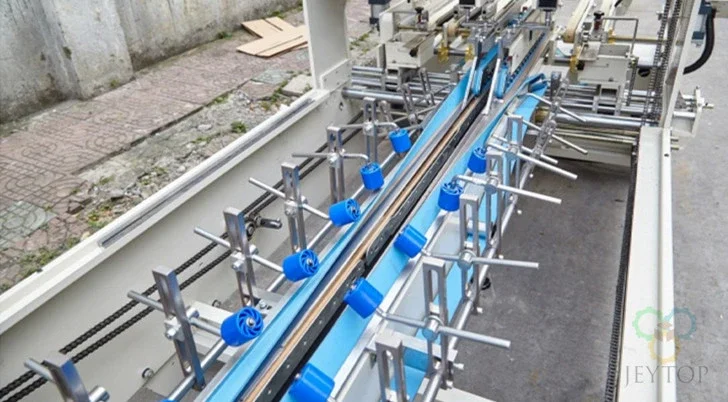

• The folding section adopts controlled conveying structures to maintain carton forming accuracy during folding.

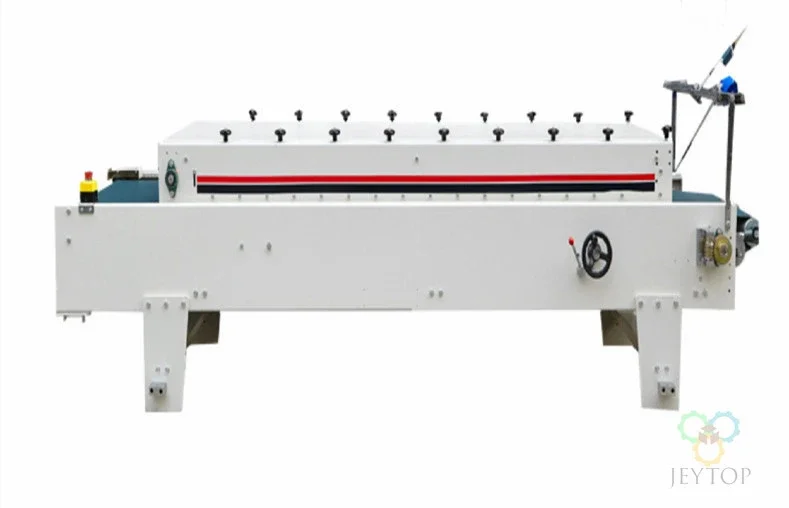

• The pressing section applies continuous pressure after folding to improve bonding stability.
• PLC and HMI control system allows operators to adjust machine parameters according to production requirements.
• Different machine configurations are available according to carton structure, material and production requirements.

Technical Parameters

Technical specifications can be customized according to carton size and production requirements.

Machine Types According to Carton Structure

1. Two-Fold Crash Lock Bottom Box Pasting Machine

Suitable Materials

• 250–800g paperboard
• E/F flute micro corrugated board

Applicable Boxes

• Straight line boxes
• Two-fold crash lock bottom boxes
• Double side glued boxes

2. Four-Fold Straight Line Box Pasting Machine

Suitable Materials

• Paperboard above 250g
• E/F flute micro corrugated board

Applicable Boxes

• Standard four-fold straight line cartons
• Double side glued cartons

3. Four-Fold Crash Lock Bottom Box Pasting Machine

Suitable Materials

• 250–750g paperboard
• E/F flute micro corrugated board

Applicable Boxes

• Four-fold straight line boxes
• Automatic crash lock bottom boxes

This type is commonly used for food packaging, cosmetic packaging, daily product packaging and micro corrugated carton production.

Suitable Materials

The automatic box pasting machine is suitable for:

• Paperboard
• Cardboard
• E flute micro corrugated board
• F flute micro corrugated board

Material suitability should be confirmed according to carton structure, thickness and machine configuration.

Applications

Suitable for:

• Folding carton manufacturers
• Printing and packaging companies
• Paper converting factories

Applicable Products:

• Pharmaceutical boxes
• Cosmetic cartons
• Food packaging cartons
• Electronic product boxes
• Gift boxes
• Micro corrugated packaging boxes

Working Process

Die-cut Carton Blank Feeding
↓
Pre-folding
↓
Glue Application
↓
Folding Forming
↓
Pressure Holding
↓
Finished Carton Collection

Automatic Box Pasting Machine vs Automatic Folder Gluer

The two machines serve different packaging markets and should be selected according to carton material and product structure.

Why Choose This Machine

• Automatic feeding, gluing, folding and pressing reduce manual carton forming operations.
• Pre-folding functions improve carton opening performance for downstream packaging processes.
• Adjustable gluing system helps maintain consistent adhesive application.
• Suitable for standardized production of folding cartons and micro corrugated cartons.
• Different configurations allow selection according to carton structure requirements.

Recommended Industries

Suitable for:

• Food Packaging Industry
• Pharmaceutical Packaging Industry
• Cosmetic Packaging Industry
• Consumer Product Packaging Industry
• Printing and Folding Carton Industry

FAQ

1. What is an automatic box pasting machine used for?

It is used to automatically form folding cartons and micro corrugated cartons after die cutting through feeding, gluing, folding and pressing processes.

2. What is the difference between a box pasting machine and a folder gluer?

A box pasting machine is mainly used for folding cartons and micro corrugated cartons, while a folder gluer is mainly used for corrugated shipping cartons made from multi-layer corrugated board.

3. Can this machine produce crash lock bottom boxes?

Yes. The four-fold crash lock bottom configuration is designed for automatic production of standard crash lock bottom cartons.

4. Why does the machine have pre-folding functions?

The 180° and 135° pre-folding processes reduce carton folding resistance and help finished cartons open more easily for automatic packing operations.

5. What materials can be processed by this machine?

It is mainly designed for paperboard and E/F flute micro corrugated board. Material suitability depends on carton structure and machine configuration.

6. Can it process laminated or coated cartons?

The suitability depends on the surface condition of the material, adhesive type and machine configuration. Customers should confirm material samples before production.

7. What information is required for machine selection?

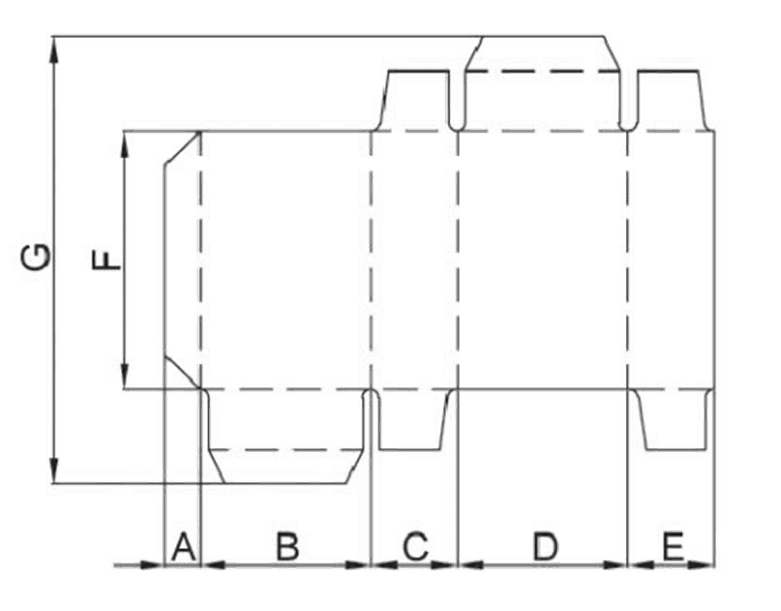

Customers should provide carton samples, unfolded carton dimensions, material type, carton structure and production requirements.
