Product Overview

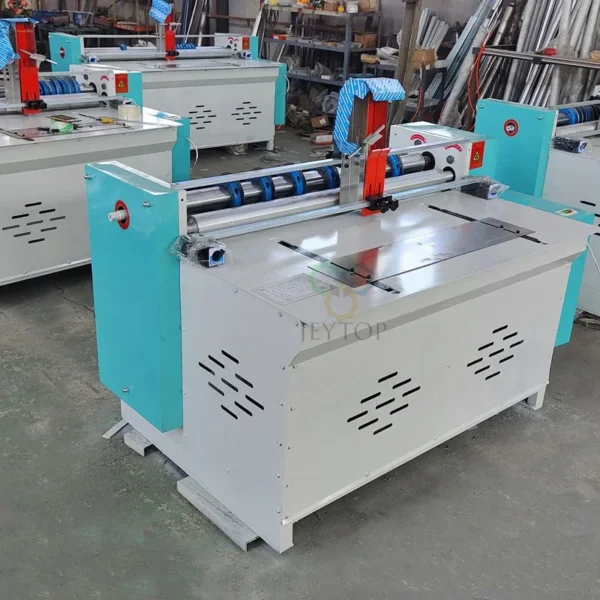

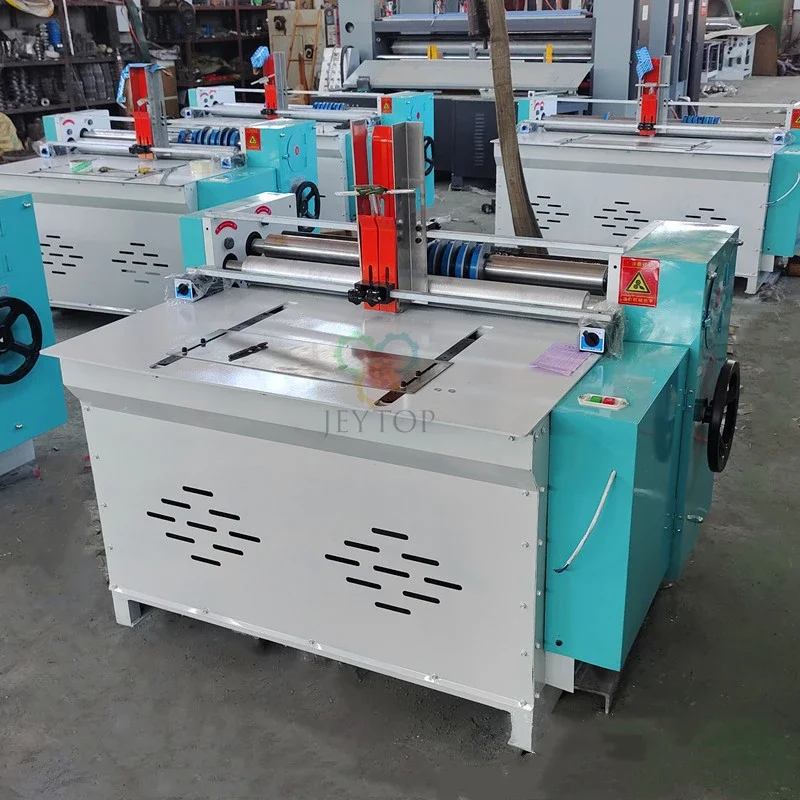

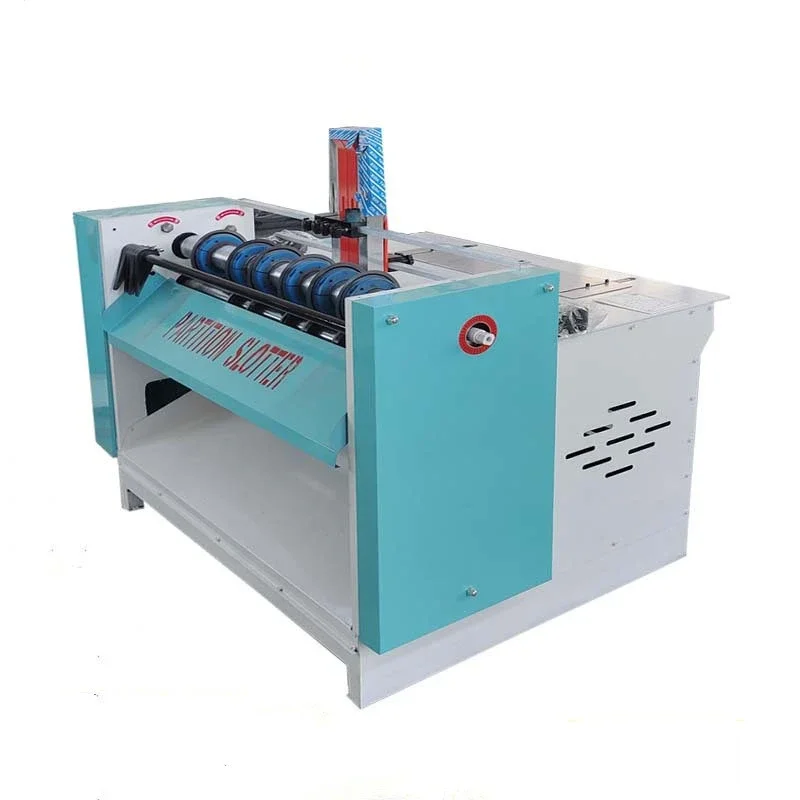

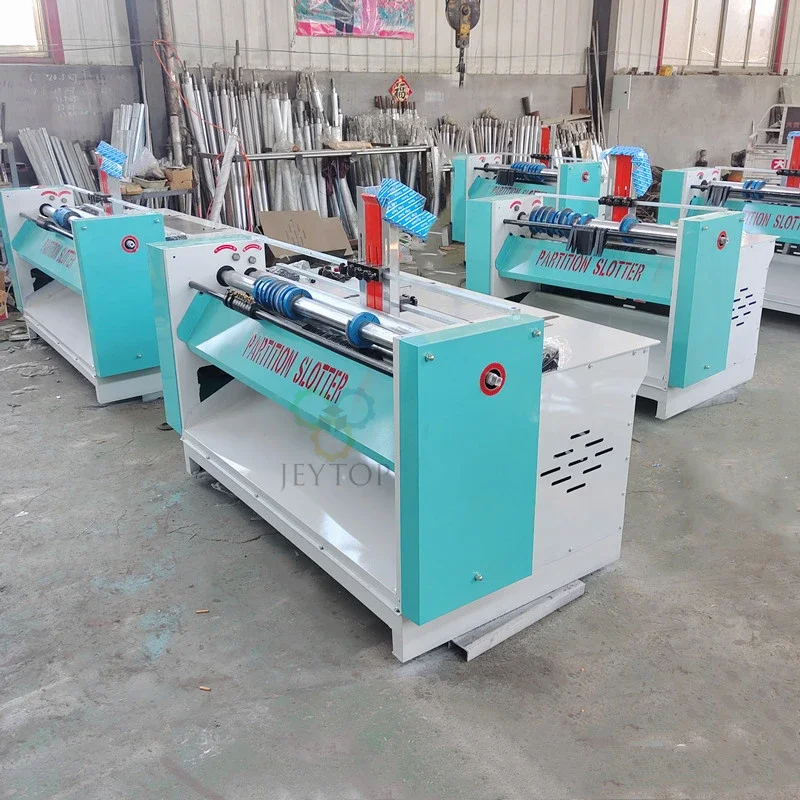

The Partition Slotter Machine is designed for slotting corrugated sheets used in the production of carton partitions and dividers. It creates accurate and consistent slots on corrugated board, preparing sheets for the subsequent partition assembling process.
The machine can be combined with an Automatic Partition Assembling Machine to form a complete corrugated partition production process. It is suitable for manufacturers producing protective dividers for wine, beverage, glassware, fruit, and other packaging applications.
Key Features
- Easy to operate, with simple operation procedures.
- Stable and smooth operation during the slotting process.
- Working speed range: 100–120 times/min.
- Provides accurate and clear slotting results with clean slot edges.
- Designed for efficient slotting operations compared with manual processing methods.
- Elegant appearance and durable machine structure.
- Frequency control speed adjustment is available as an option.
- Vacuum suction feeding system is available as an option.
Technical Parameters
1. Motor: 1. 1KW
2. Maximum size of processed cardboard: 300 mm-800 mm
3. Minimum size of processed cardboard: 80 mm-100 mm
4. The minimum spacing of grooving: 40 mm
5. Cutting width: 3 mm- 5 mm
6. Maximum depth of groove: 150 mm
7. The maximum working speed is 100 sheets/min
8. Machine weight: 350 kg
9. Machine shape length: length x width x height: 1500*1300*1000 mm
10. Thickness of processed cardboard: 2mm-5mm
Suitable Materials
The machine is suitable for processing:
- Corrugated board
- Corrugated sheets for partition production
Applications
The Partition Slotter Machine is used for:
- Corrugated partition production
- Divider sheet processing
- Protective packaging component manufacturing
Typical applications include:
- Wine box dividers
- Beverage carton partitions
- Glassware protection inserts
- Fruit packaging partitions
- Customized protective packaging
Working Process
Corrugated Sheet Feeding
↓
Sheet Positioning
↓
Slotting Processing
↓
Finished Slotted Sheets Output
Recommended Industries
Suitable for:
- Corrugated carton manufacturers
- Protective packaging manufacturers
- Partition production companies
- Beverage packaging suppliers
- Wine packaging manufacturers
FAQ
1. What is a Partition Slotter Machine used for?
The machine is used to create slots on corrugated sheets, preparing them for assembly into carton partitions and dividers.
2. Can this machine produce finished carton partitions?
No. The machine performs the slotting process only. The slotted sheets need to be assembled by a partition assembling machine to form finished partitions.
3. What type of material can the machine process?
The machine is mainly designed for corrugated sheets used in carton partition and protective packaging production.
4. What is the working speed of this slotting machine?
The working speed range is approximately 100–120 times per minute, depending on the machine configuration and operating conditions.
5. Can the feeding system be customized?
Yes. A vacuum suction feeding system is available as an optional configuration according to production requirements.
6. Can this machine be integrated with a partition production line?
Yes. It can be combined with an Automatic Partition Assembling Machine to create a complete partition manufacturing process.
