Product Overview

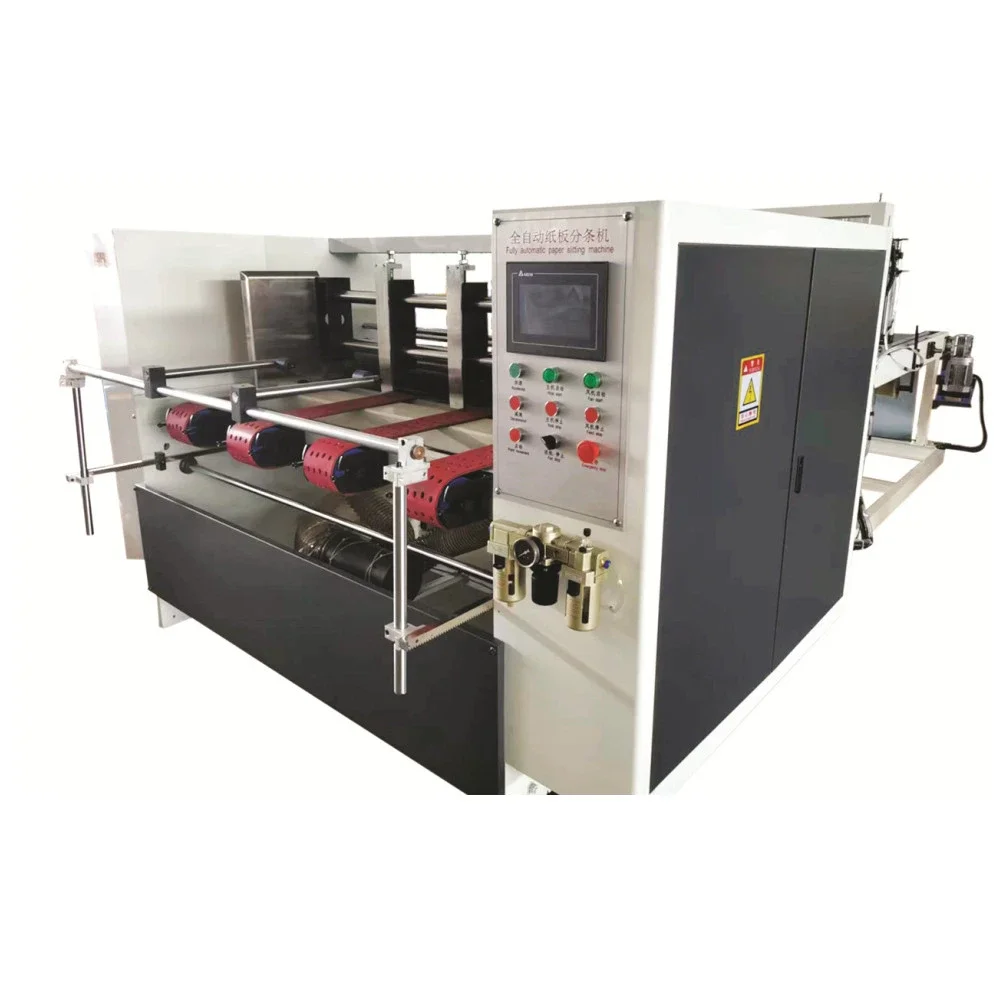

The Automatic Corrugated Board Slitting Machine is designed to cut wide corrugated sheets into narrow strips with accurate dimensions for further processing. It is an essential step in the production of corrugated partitions, preparing properly sized boards for subsequent slotting and assembling processes.
When combined with a Partition Slotting Machine and Automatic Partition Assembling Machine, it can be integrated into a complete partition production process. The machine is suitable for producing corrugated partitions used in wine, fruit, glassware, beverage, and other protective packaging applications.
Key Features
- This machine adopts an automatic paper feeding system with photoelectric tracking, stacking, and counting functions.
- The touch screen PLC control system provides a simple and quick interface for machine operation.
- It features automatic zero reset and sheet-separated feeding functions for convenient operation.
- The gantry-type stacking system ensures neat material collection and reduces manual handling requirements.
- The machine uses traditional semicircular knives, providing accurate cutting performance, clean cutting results, and convenient knife replacement.
- The frequency converter control system allows convenient speed adjustment according to production requirements.
- The gantry can be moved as a whole, making it convenient to adjust according to different cardboard sizes.
Technical Parameters
| Model | 2000 |
| Power | 6KW |
| Weight | 1.6 Ton |
| Size | 3300×2750×1500mm |
| The min cutting width | Disc Cutter 20mm/Semi-Circular Cutter40mm/Thin Cutter 110mm |
| The max cutting specification | 2000×1500mm |
| The min cutting specification | 400×150mm |
| Board thickness range | 2-7mm |
| Machine Footprint | Length*width 5m×3m=15㎡ |
| Required personnel | 1-3 workers |
Technical specifications can be customized according to customer requirements.
Suitable Materials
The machine is suitable for processing:
- Corrugated board
- Single wall corrugated sheets
- Double wall corrugated sheets
Applications
The Automatic Corrugated Board Slitting Machine is used for preparing corrugated sheets for:
- Partition production
- Corrugated divider manufacturing
- Carton component processing
- Customized packaging production
Typical packaging applications include:
- Wine packaging
- Fruit packaging
- Glassware packaging
- Beverage packaging
- Protective packaging
Working Process
Wide Corrugated Sheet Feeding
↓
Automatic Sheet Positioning
↓
Longitudinal Slitting
↓
Sheet Counting
↓
Automatic Stacking
↓
Transfer to Next Processing Step
Recommended Industries
Suitable for:
- Corrugated carton manufacturers
- Packaging factories
- Partition production companies
- Protective packaging manufacturers
- Paper product processing companies
FAQ
1. What is an Automatic Corrugated Board Slitting Machine used for?
The machine is used to cut wide corrugated sheets into narrow strips with required widths, preparing materials for further processes such as partition slotting and assembly.
2. Can this machine produce finished partitions?
No. The machine performs the corrugated board slitting process only. The cut sheets need to be processed by partition slotting and assembling equipment to make finished partitions.
3.Can this machine process different sizes of corrugated sheets?
Yes. The machine is designed to cut wide corrugated sheets into narrower strips according to different production requirements. The gantry stacking system can also be adjusted according to different cardboard sizes.
4. How does the machine control cutting operation?
The machine uses PLC touch screen control, photoelectric tracking, and a semicircular knife cutting system to assist stable operation.
5. Does the machine include an automatic stacking function?
Yes. The machine is equipped with a gantry-type stacking system for neat collection of processed sheets.
6. Can the machine process different cardboard sizes?
Yes. The gantry structure can be adjusted according to different cardboard sizes.
