Product Overview

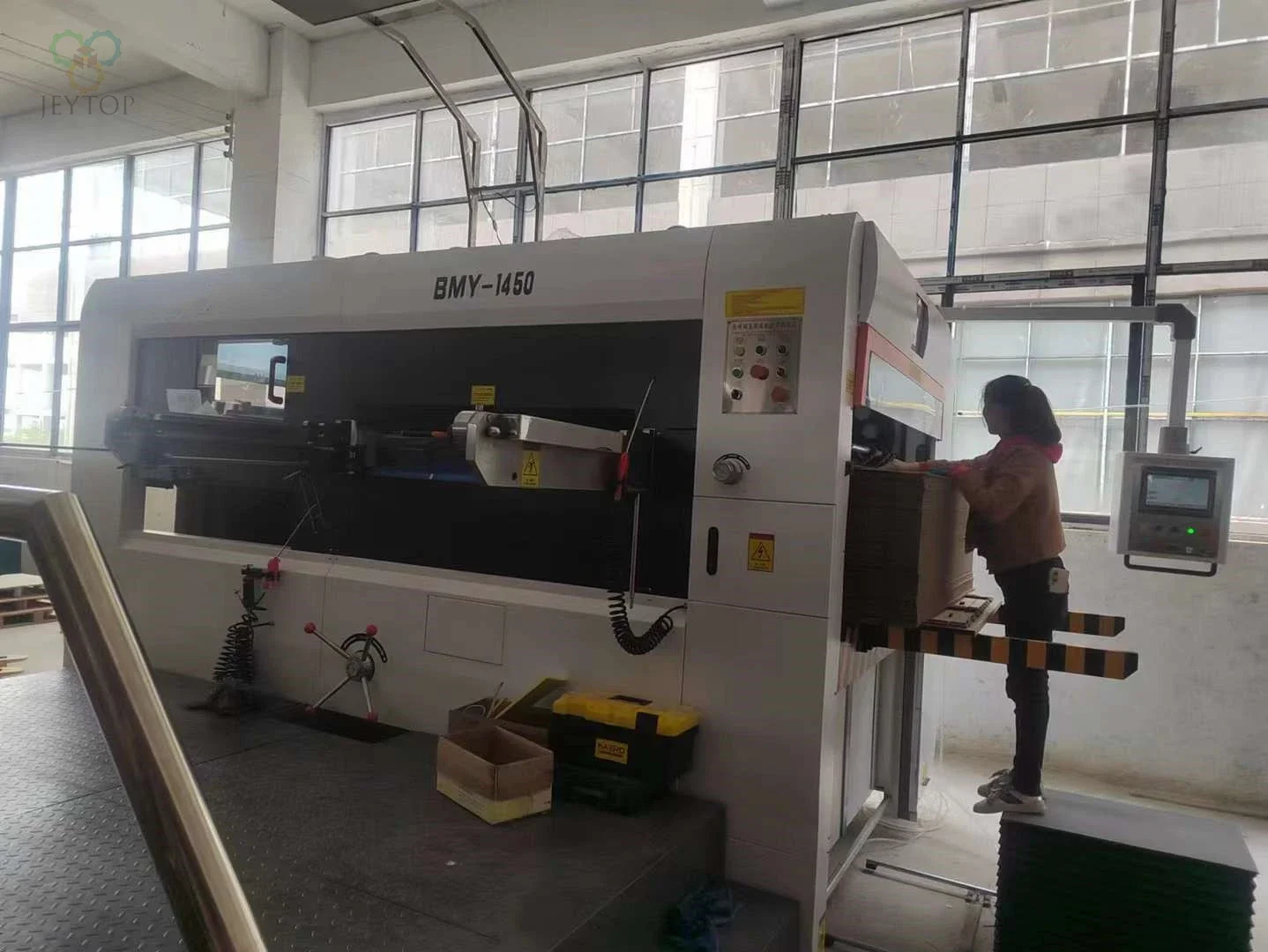

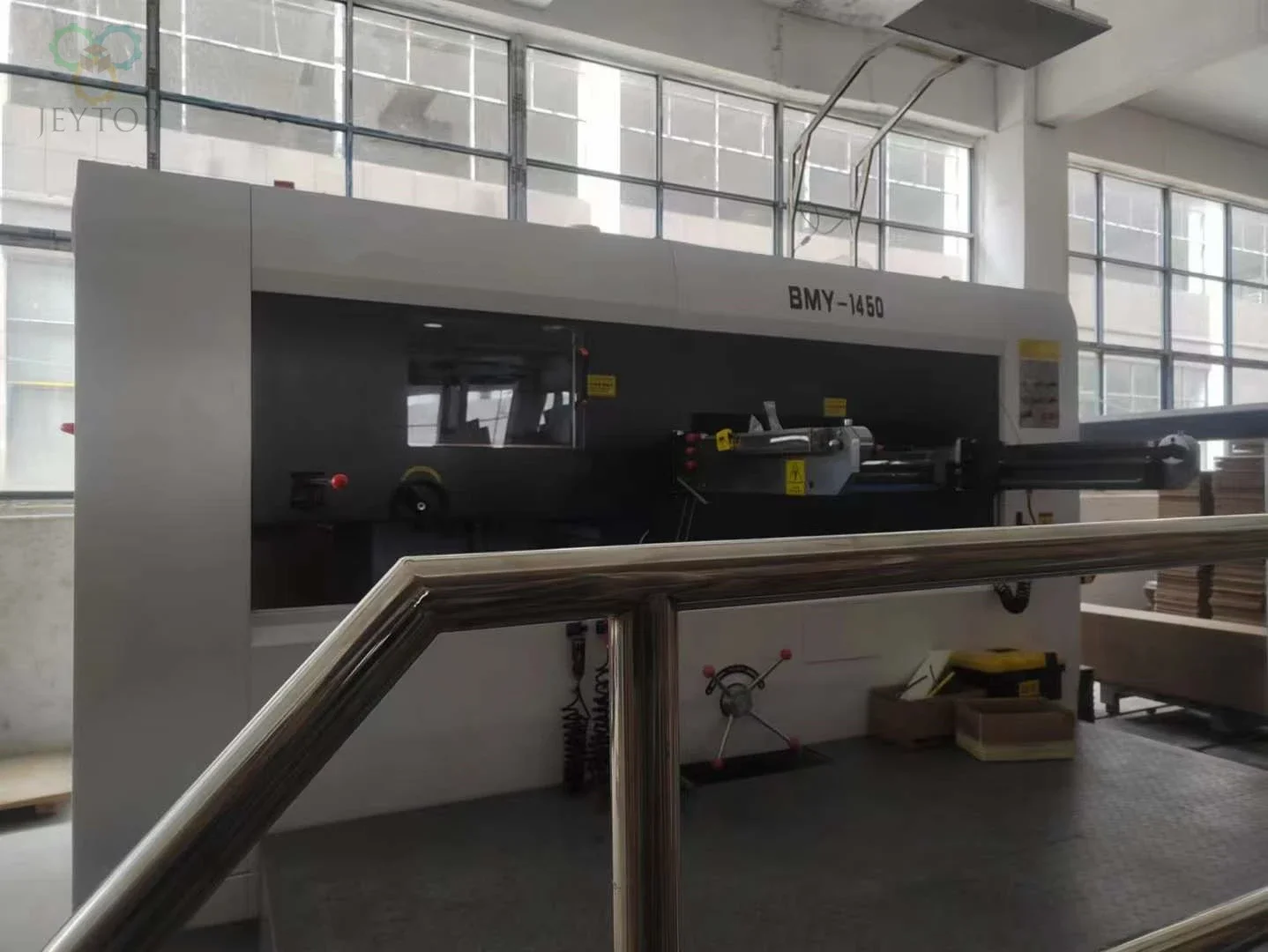

The Semi-Automatic Creasing and Die Cutting Machine is designed for creasing and die cutting cardboard and corrugated board. It combines manual sheet feeding with automatic creasing and die cutting functions.
It is suitable for carton manufacturers and packaging converters producing corrugated boxes, folding cartons and other die-cut packaging products.
Key Features
- This semi-automatic creasing and die cutting machine uses high-strength paper grippers. The advanced gripper mechanism can accommodate various types of cardboard and corrugated board.
- The front, rear, and side positioning mechanisms ensure die cutting accuracy during sheet positioning.
- Equipped with a high-precision intermittent mechanism.
- Features a quick-response pneumatic clutch and a pneumatic locking system.
- Uses a programmable controller and a human-machine interface (HMI) to display the machine operating speed, processed sheet quantity, and total running time digitally.
- The machine is equipped with a fault display system, making troubleshooting more convenient.
- The main motor is controlled by a frequency inverter, providing stepless speed regulation and stable operation.
- Sensors and safety protection devices are installed at multiple locations to help ensure normal machine operation and operator safety.
- The die-cutting pressure at the front and rear can be adjusted independently. The hand wheel for manual jogging is easy and labor-saving to operate, and the machine also supports die cutting without gripper feeding.
Technical Parameter:
| Model | MY-1200 | MY-1300 | MY-1500 | MY-1650 |
| Max Paper Size/mm | 1230*850mm | 1320*940mm | 1510*1120mm | 1670*1250mm |
| Min Paper Size/mm | 350*450mm | 400*500mm | 450*550mm | 500*550mm |
| Max die cutting size/mm | 1210*830mm | 1300*920mm | 1490*1100mm | 1650*1200mm |
| The Min Size in mouth/mm | 8 | 8 | 8 | 8 |
| Max die cutting pressure/ton | 300 | 300 | 320 | 350 |
| White cardboard/mm | 200-2000g/m² | 200-2000g/m² | 200-2000g/m² | 200-2000g/m² |
| Corrugated board/mm | 8mm（Max thickness） | 8mm（Max thickness） | 8mm（Max thickness） | 8mm（Max thickness） |
| Die cutting precision/mm | ±0.1 | ±0.1 | ±0.1 | ±0.1 |
| Max die cutting speed/ sheet/hour | 4500 | 4500 | 4500 | 4000 |
| Max feeding pile height/mm | 1400mm（Above the level) | 1400mm（Above the level) | 1400mm（Above the level) | 1400mm（Above the level) |
| Max collecting pile height/mm | 1200mm（Above the level) | 1250mm（Above the level) | 1250mm（Above the level) | 1300mm（Above the level) |
| Total power/KW | 11 | 13.5 | 13.5 | 20 |
| Weight/Ton | 13 | 14.5 | 17.5 | 21 |
| Dimensions/mm | 4200*2200*2250mm | 4200*2250*2250mm | 4200*2300*2250mm | 5200*2450*2250mm |
Suitable Materials
- Corrugated Board
- Cardboard
Applications
The machine is suitable for producing:
- Standard corrugated cartons
- Folding cartons
- Packaging boxes
- Carton blanks
- Custom die-cut paper packaging products
Working Process

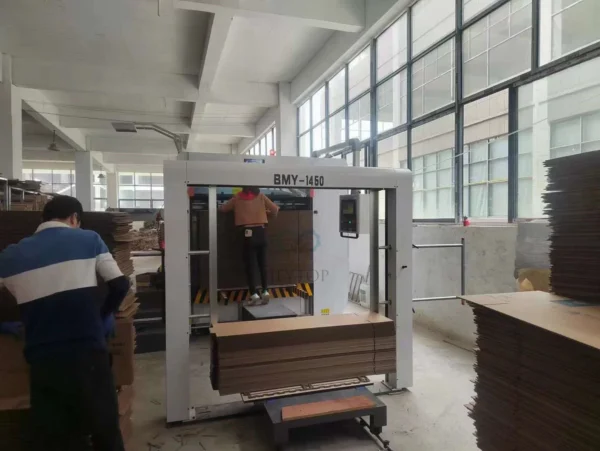

Manual Sheet Feeding
↓
Sheet Positioning
↓
Paper Gripping
↓
Creasing and Die Cutting
↓
Finished Product Collection
Why Choose This Machine
- High-strength paper gripper mechanism
- Front, rear, and side positioning system
- High-precision intermittent mechanism
- Pneumatic clutch and locking system
- Programmable controller with HMI
- Frequency inverter speed control
- Digital operating information display
- Adjustable die cutting pressure
- Multiple safety protection devices
FAQ
1. What materials can this machine process?
The machine is designed for corrugated board and cardboard.
2. How is sheet positioning achieved?
The machine uses front, rear, and side positioning mechanisms to position the sheets before die cutting.
3. Can the operating speed be adjusted?
Yes. The main motor is controlled by a frequency inverter, allowing stepless speed regulation.
4. What production information is displayed on the machine?
The human-machine interface displays the operating speed, processed sheet quantity, and total running time.
5. What safety features does the machine have?
The machine is equipped with multiple sensors, safety protection devices and a fault display system to help monitor machine operation and assist troubleshooting during production.
6. Can the die cutting pressure be adjusted?
Yes. The die cutting pressure can be adjusted independently at the front and rear according to production requirements.
