Product Overview

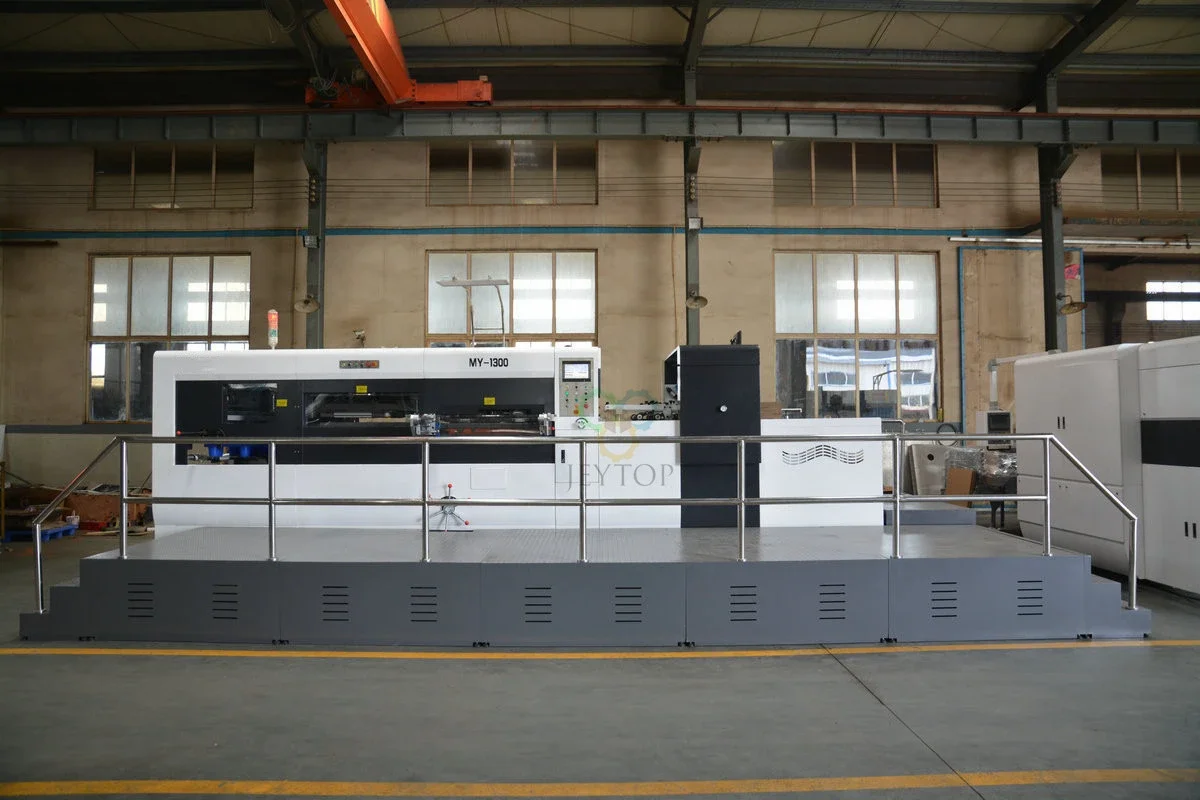

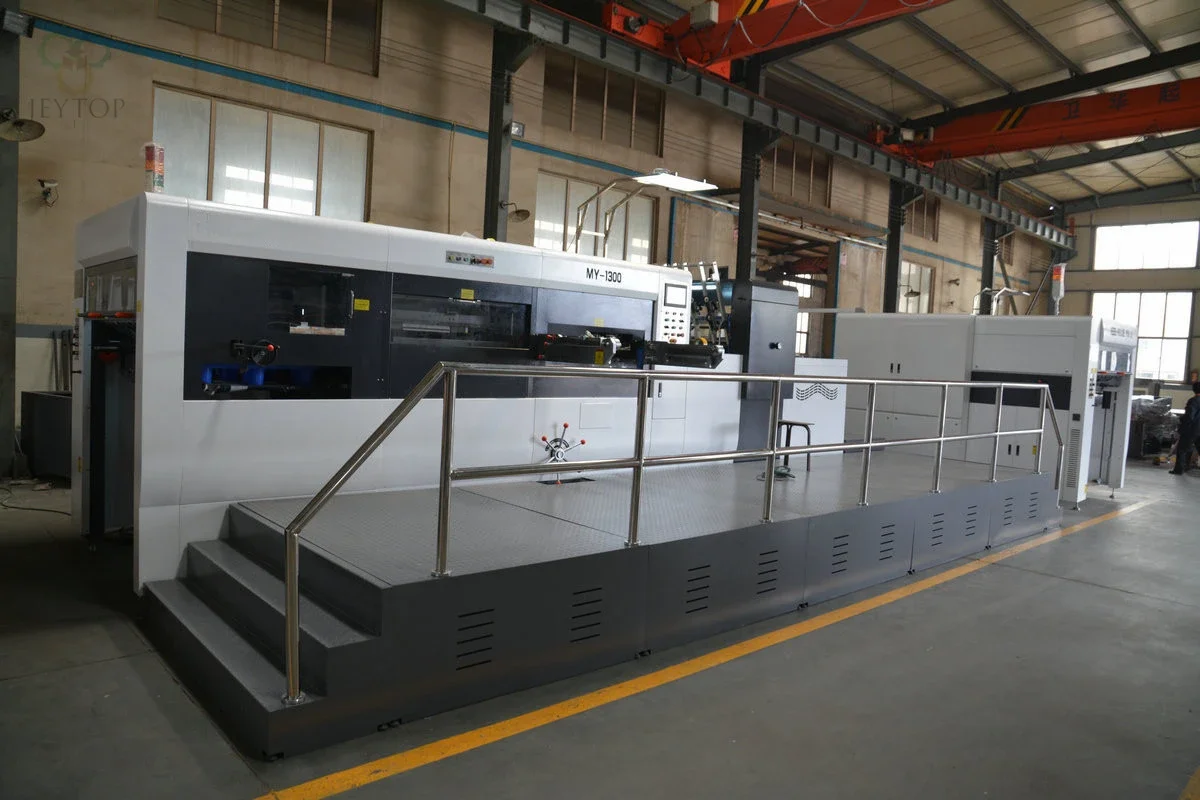

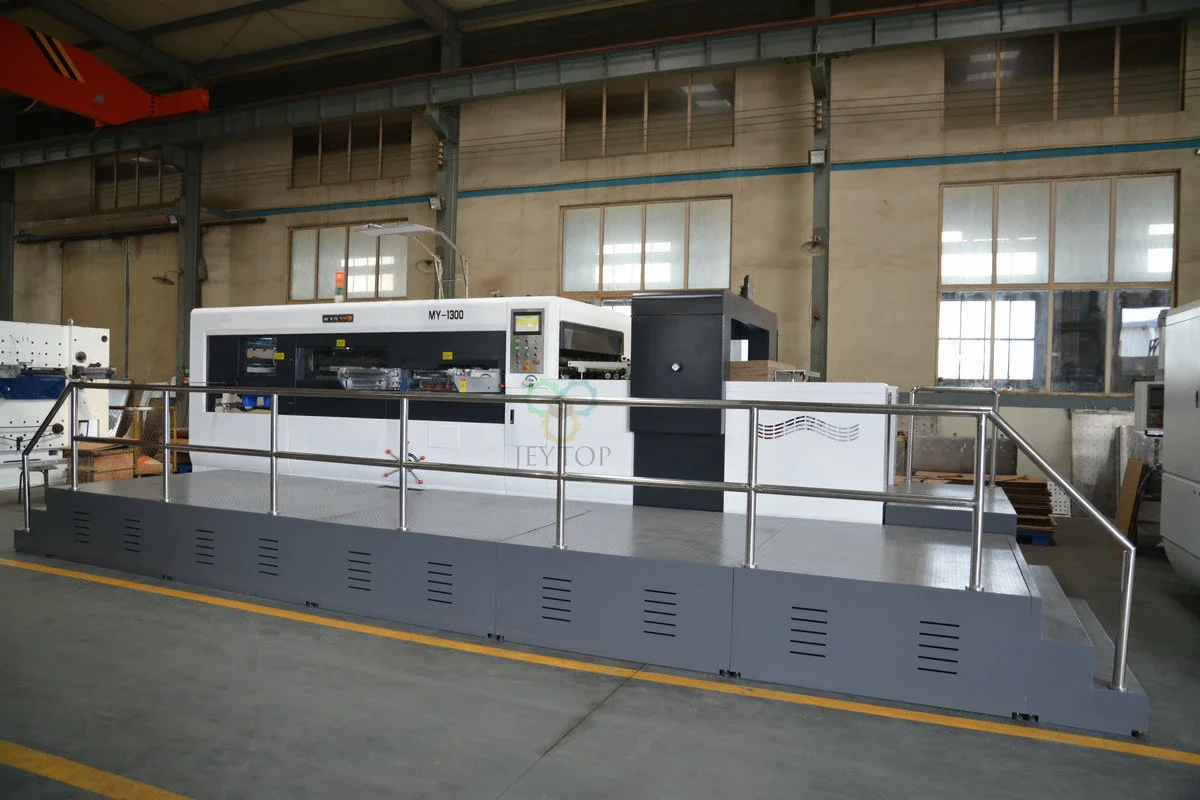

The Automatic Creasing and Die Cutting Machine is designed for die cutting and creasing printed corrugated sheets. It combines automatic paper feeding, die cutting, creasing, counting, and sheet delivery functions for corrugated box production.
The machine is mainly used by carton manufacturers and corrugated packaging companies to process corrugated sheets into die-cut and creased carton blanks through customized die plates. It is suitable for production processes requiring accurate creasing and die cutting after corrugated sheet printing.
Key Features
- The machine adopts PLC control and touch screen operation. Main adjustments can be completed through the control interface, and production parameters can be adjusted according to different cardboard specifications.
- The optical fiber detection system monitors abnormal conditions during operation and helps protect the machine from damage. When loose plates or abnormal conditions occur, the machine can stop automatically and display the corresponding information on the touch screen.
- The servo-type leading edge paper feeding system allows adjustment of the paper feeding length according to production requirements, reducing damage to corrugated board strength during feeding.
- Left and right paper feeding baffles can be electrically adjusted. A high-pressure blower system assists the feeding of warped cardboard, and the air volume can be adjusted according to cardboard conditions.
- The machine base is manufactured with high-strength ductile iron to provide stable support during die cutting operations.
- The stripping section adopts a central positioning plate structure, helping remove waste paper efficiently and improve production efficiency.
- Automatic counting and paper delivery functions are integrated with the hydraulic lifting paper feeding system, allowing convenient loading and continuous operation.
Technical Parameters
| Model | MY1100 | MY1300 | MY1500 | MY1650 | |
| Max paper feeding size/mm | 1100*780 | 1320*980 | 1510*1120 | 1670*1200 | |
| Min paper feeding size/mm | 360*360 | 360*360 | 450*400 | 550*500 | |
| Max die cutting size/mm | 1070*760 | 1300*960 | 1490*1100 | 1650*1180 | |
| Max gripper edge size/mm | 5 | 5-8 | 5-8 | 5-8 | |
| Max die cutting pressure | 350 | 350 | 380 | 400 | |
| Processable paper types | White cardboard/ g/㎡ | 400-2000 | 400-2000 | 400-2000 | 400-2000 |
| Corrugated cardboard/mm | ≤5 | ≤10 | ≤10 | ≤10 | |
| Max die cutting speed/ Sheets/hour | 7000 | 7000 | 6000 | 5500 | |
| Max height of paper feeding/mm | 1100（Above the level） | 1400（Above the level） | 1400（Above the level） | 1400（Above the level） | |
| Max height of paper stacking/mm | 1100（Above the level） | 1250（Above the level） | 1250（Above the level） | 1300（Above the level） | |
| Total power/kw | 17 | 24.5 | 26.5 | 32 | |
| Total weight of the machine/Ton | 16 | 18 | 21 | 25 | |
| Total weight with the Waste paper cleaning part/Ton | 17.5 | 20 | 26 | 40 | |
| Whole size of the machine/mm | 5943*3950*2215 | 7286*4198*2345 | 7900*4320*2356 | 9000*2476*2460 | |
| Whole size with the waste paper cleaning part/mm | 7000*3950*2215 | 8545*4300*2345 | 10200*4560*2356 | 11700*5700*2560 |
Suitable Materials
- 3-ply corrugated board
- 5-ply corrugated board
- 7-ply corrugated board (according to thickness and configuration)
- Printed corrugated sheets
- Paperboard
Applications
Suitable for:
- Corrugated Board Plants
- Carton Manufacturing Companies
- Printing and Packaging Companies
Applicable Products:
- Shipping Boxes
- E-commerce Packaging Boxes
- Industrial Packaging Boxes
- Other Die-cut Corrugated Packaging Products
Working Process
Printed Corrugated Sheet Feeding
↓
Automatic Conveying
↓
Die Plate Positioning
↓
Creasing and Die Cutting
↓
Waste Stripping
↓
Counting
↓
Sheet Delivery
Why Choose This Machine
- High-speed automatic die cutting and creasing for carton blank production
- Suitable for printed corrugated sheets after flexo printing
- Servo leading-edge feeding improves feeding stability
- High die-cutting pressure for different corrugated board requirements
- Optional stripping system improves production efficiency
- Suitable for manufacturers requiring accurate carton converting processes
Recommended Industries
Suitable for:
- Carton Manufacturers
- Packaging Companies
- Printing Factories
- Corrugated Packaging Plants
FAQ
1. What materials can be processed by this automatic creasing and die cutting machine?
The machine is designed for processing corrugated cardboard, including 3 ply and 5 ply corrugated sheets.
2. What is the main function of an automatic creasing and die cutting machine?
It is used to cut and crease printed corrugated sheets according to the designed die shape, preparing cardboard for further box forming processes.
3. Can this machine replace a flexo printer slotter die cutter?
No. A printer slotter die cutter integrates printing, slotting, and die cutting processes. This machine focuses on creasing and die cutting operations.
4. What affects the die cutting quality?
Die plate quality, cardboard condition, flute type, and machine adjustment all affect the final die cutting result.
5. Is the stripping section necessary for production?
The stripping section helps remove waste around the die-cutting area. Whether it is required depends on the product structure and production requirements.
