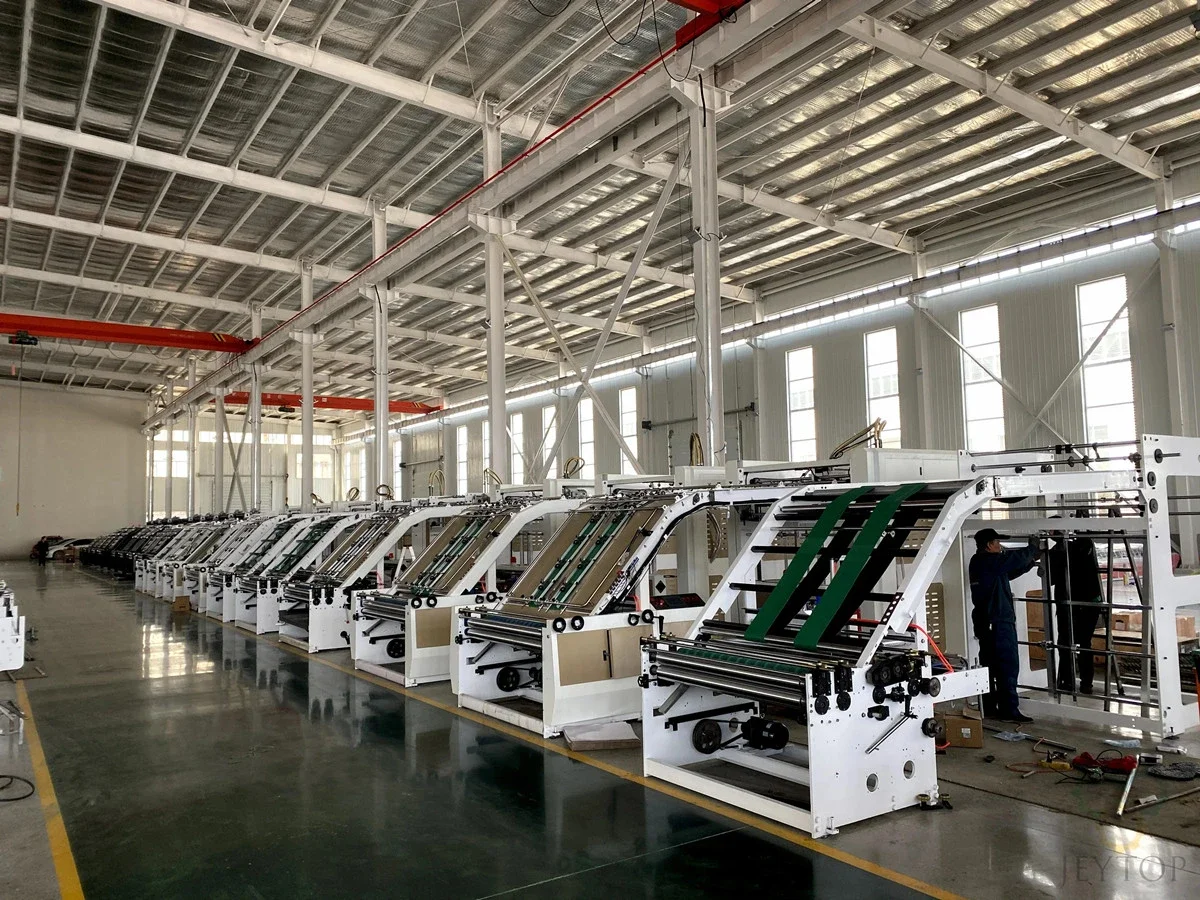

Product Overview
The Automatic Carton Flute Laminator Machine is designed for laminating printed paper sheets with corrugated board or cardboard to produce laminated packaging materials. It combines automatic feeding, precise positioning, gluing, laminating, and sheet delivery functions into one machine.
The machine is suitable for carton manufacturers and packaging converters requiring accurate sheet lamination for producing corrugated packaging, color boxes, and other laminated paper products. It is designed for continuous production where stable feeding and alignment accuracy are required.
Key Features
- Advanced automatic tracking technology automatically adjusts relevant parameters according to paper size, helping maintain stable machine operation.
- The unique front gauge positioning system provides accurate positioning. The bottom paper does not exceed the set position, while the top paper overhang can be adjusted according to requirements.
- Equipped with a high-precision, high-speed automatic feeder and reinforced paper feeding device to ensure smooth paper feeding.
- Uses the side gauge positioning principle of offset printing machines to correct positioning errors during top paper stacking and feeding processes.
- The bottom paper uses suction automatic feeding. Air volume can be adjusted through the touch screen, and the system is equipped with a belt humidifying function.
- The standby stack table allows paper preparation during continuous operation and can move into the elevator along the rail to improve working convenience.
- Imported electrical components are used to improve the stability of the electrical system. PLC tracking technology provides automatic fault alarm functions.
- The fully automatic glue replenishment system can automatically compensate for glue consumption and works together with the glue recycling system.
- Independent water tank circulation control helps keep the bottom paper dry while cleaning the roller, glue receiving tank, and glue return tank.
- The roller pressure can be adjusted independently on one side. Equipped with a dial gauge, it allows convenient adjustment when replacing bottom paper.
Technical Parameter
| Model | YB-1300E | YB-1450E | YB-1650E |
| Max Sheet size | 1300*1250MM | 1450*1250MM | 1650*1450MM |
| Min Sheet size | 400*400MM | 400*400MM | 400*400MM |
| Top sheet thickness | 150-600GSM | 150-600GSM | 175-700GSM |
| Bottom sheet thickness | A.B.C.E.F corrugated paper, industrial cardboard | ||
| Machine speed | 7000sheets/Hour | 7000sheets/Hour | 7000sheets/Hour |
| Fitting precision | ±1mm | ±1mm | ±1mm |
| Measurement | 11.5x2x2.4M | 11.5×2.2×2.4M | 11.5×2.4×2.4M |
| Machine weight | 5000KG | 5500KG | 6000KG |
| Machine Power | 10KW/380V | 11KW/380V | 12KW/380V |
Technical parameters may vary according to different machine configurations and customer requirements.
Suitable Materials
The Automatic Carton Flute Laminator Machine is suitable for processing:
- Printed paper sheets
- Corrugated board
- Cardboard
- Kraft paperboard
- Coated paper sheets
Material compatibility depends on machine configuration.
Applications
The machine is used for:
- Laminating printed sheets with corrugated board
- Producing laminated carton sheets
- Preparing materials for carton forming processes
- Manufacturing packaging sheets requiring surface printing and corrugated structure combination
Typical products include:
- Corrugated color boxes
- Packaging cartons
- Display cartons
- Retail packaging boxes
- Customized paper packaging products
Working Process
Printed Sheet Feeding
↓
Corrugated Board Feeding
↓
Position Alignment
↓
Glue Application
↓
Sheet Lamination
↓
Pressing and Delivery
↓
Finished Laminated Sheet Output
Recommended Industries
Suitable for:
- Corrugated Packaging Manufacturers
- Carton Production Companies
- Printing and Packaging Companies
- Paper Product Manufacturers
- Packaging Converters
FAQ
1. What is an Automatic Carton Flute Laminator Machine used for?
An Automatic Carton Flute Laminator Machine is used to laminate printed paper sheets with corrugated board or cardboard to produce laminated packaging materials.
2. What materials can this machine laminate?
The machine can laminate printed paper sheets with corrugated board, cardboard, and other compatible paper-based materials according to machine configuration.
3. How does the machine ensure paper positioning accuracy?
The machine uses a front gauge positioning system and side gauge positioning principle to help maintain accurate alignment between the top paper and bottom paper during feeding and laminating.
4. Does the machine use automatic glue supply?
Yes. The machine is equipped with an automatic glue replenishment system that compensates for glue consumption during operation.
5. Can the machine adjust according to different paper sizes?
Yes. The automatic tracking technology can adjust relevant parameters according to paper size to support different production requirements.
6. What is the function of the suction feeding system?
The suction feeding system helps feed the bottom paper smoothly. The air volume can be adjusted according to operating requirements.
7. Is this machine suitable for continuous production?
Yes. The machine is designed with automatic feeding, positioning, laminating, and monitoring functions for continuous production environments.
8. What factors affect lamination quality?
Lamination quality depends on paper alignment, glue application, material condition, machine adjustment, and production parameters.
