Product Overview

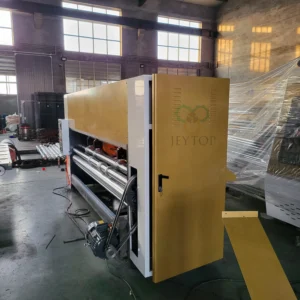

The Chain Feed Rotary Slotter Creaser Machine is a semi-automatic corrugated box forming machine designed for creasing, slotting, corner cutting, and edge trimming of corrugated sheets. It uses a double-row chain feeding system to transport cardboard through the machine, where rotary tooling completes multiple converting processes in one pass.
Unlike vacuum leading-edge feeders, this machine adopts a mechanical chain positioning structure, providing stable feeding for various corrugated board specifications, including 3 ply, 5 ply, and 7 ply sheets. It is widely used by small and medium-sized carton manufacturers for flexible production of different box sizes, especially for small-batch orders and thick corrugated board applications.
Key Features
- The Rotary Slotter Machine RS4 is an all-in-one machine that integrates edge trimming, creasing, slotting, and corner cutting into one process. Ventilation holes and portable hole punching devices can also be added if required.
- The worktable adopts chain feeding, which provides fast and stable sheet transportation with high working efficiency.
- The tooth profile of the slotting knife is ground, and the cutting edge is sharp.
- The slotting knife holder can be adjusted according to the thickness of the cardboard (3-ply, 5-ply, and 7-ply corrugated board).
- The rear slotting knife (box height) can be adjusted simultaneously with four knives, making operation convenient, flexible, and reliable.
- The main gear adopts a keyless connecting structure, which helps maintain precise slotting performance during long-term operation.
- A punching device can be equipped according to production requirements.
- This Rotary Slotter Machine is commonly used together with chain feeding printing machines.
Technical Parameter
| Model | 1425 | 1632 | |
| Max. speed | 80pcs/min | 80pcs/min | |
| Max. Paper feeding size | 1450*2500mm | 1600*3200mm | |
| Min paper feeding size | 400*650mm | 450*850mm | |
| Cardboard thickness | 2-11mm | 2-11mm | |
| Phase adjustment | Electric 360° | Electric 360° | |
| Slotting Accuracy | ±1.5 | ±1.5 | |
| Machine outer dimensions | 3300×3700*1500mm | 3600×4400*1650mm | |
| Small carton (length*width) size | Formal(C=D） | 160×160mm | 160×160mm |
| Reverse(C×D） | 260x70mm | 300x80mm |
Suitable Materials
The Rotary Slotter Machine RS4 is suitable for processing:
- Single wall corrugated board
- Double wall corrugated board
- Triple wall corrugated board
Applications
The machine is used for:
- Corrugated carton blank processing
- Carton slotting and creasing
- Corner cutting of corrugated sheets
- Edge trimming before carton forming
Typical products include:
- Shipping cartons
- Transportation boxes
- Industrial corrugated boxes
- Customized corrugated packaging boxes
Working Process
The Rotary Slotter Machine RS4 processes corrugated sheets through the following steps:
1. Sheet Feeding
Operators manually place corrugated sheets into the chain feeding section. The double-row chains hold and transport the cardboard through the machine.
↓
2. Chain Feeding and Positioning
The chains move the cardboard at a stable speed while maintaining the sheet position during processing.
↓

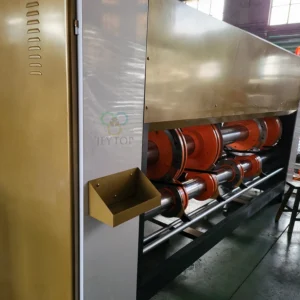

3. Rotary Creasing
The creasing wheels press folding lines onto the cardboard surface for later carton forming.
↓
4. Rotary Slotting
The rotary slotting knives cut slots at preset positions to create the required carton flap gaps.
↓
5. Corner Cutting and Edge Trimming
Rotary cutting tools remove unnecessary corners and trim edges according to carton design requirements.
↓
6. Finished Sheet Output
The processed carton blanks are discharged for subsequent folding, stitching, or gluing processes.
Recommended Industries
Suitable for:
- Corrugated carton manufacturers
- Packaging converting companies
- Printing and packaging factories
- Logistics packaging suppliers
- Industrial packaging producers
FAQ
1. What is a Rotary Slotter Machine used for?
A Rotary Slotter Machine is used for processing corrugated sheets by performing creasing, slotting, corner cutting, and edge trimming operations required for carton production.
2. What feeding system does the RS4 use?
The RS4 uses a chain feeding system. Operators manually feed corrugated sheets into the machine, and the chains transport the sheets through the processing section.
3. What thickness of corrugated cardboard can the machine process?
The machine can be adjusted according to different cardboard thicknesses, including 3-ply, 5-ply, and 7-ply corrugated board.
4. Can the machine perform multiple processes at the same time?
Yes. The machine integrates creasing, slotting, corner cutting, and edge trimming in one rotary processing operation.
5. Can punching holes be added to the machine?
Yes. Punching devices and ventilation hole processing functions can be added according to production requirements.
6. What equipment is usually used with the Rotary Slotter Machine?
The machine is commonly used together with chain feeding printing machines for corrugated carton production.
