High-Performance Corrugated Mill Roll stand

Electric/Hydraulic & Servo-Driven Solutions
3-8Min Roll Change,CE-Certified, 40% Space Saving
Solutions for the Mill Roll stand of Corrugated Cardboard Production Line

Why Choose Us:Dual-Drive Technology

Servo-Driven (High-End)：±1.5% tension control for 24/7 high-speed lines (300-400m/min, 3-5min roll change).
Electric/Hydraulic (Mid-Range)：Stable ±3% tension for multi-variety production (60-300m/min, 5-8min roll change).
Global Compliance：ISO/CE certified, 1200-2800mm width adaptability, 3-5 tons load capacity.

Tailored for Your Scale:

Servo-Driven：Ideal for e-commerce packaging (24/7 operation, 99.9% feeding stability).
Hydraulic/Electric：Cost-effective for food/retail packaging (mixed paper types, 40% space saving).

Get Customized Quote for Your Production →

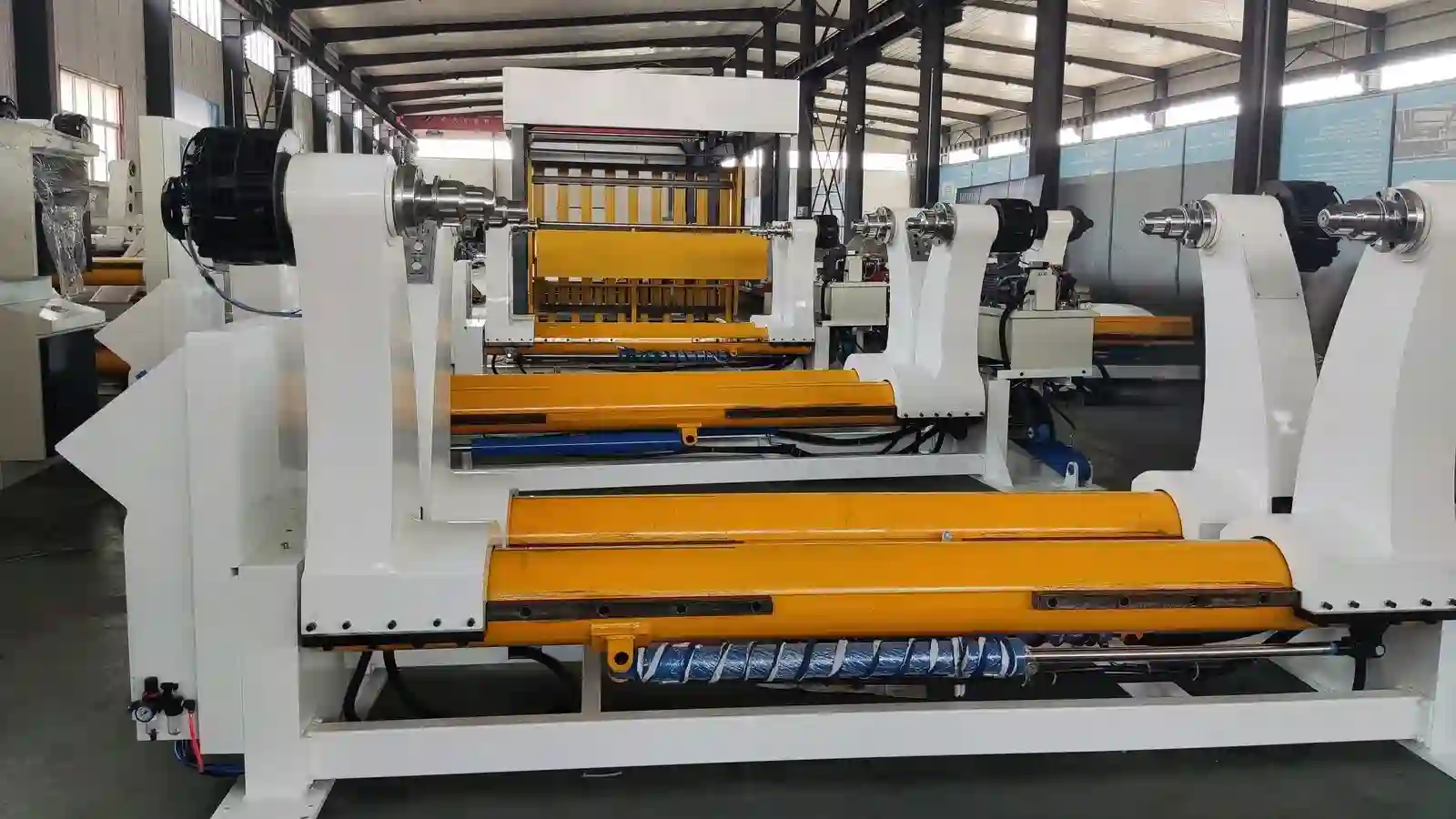

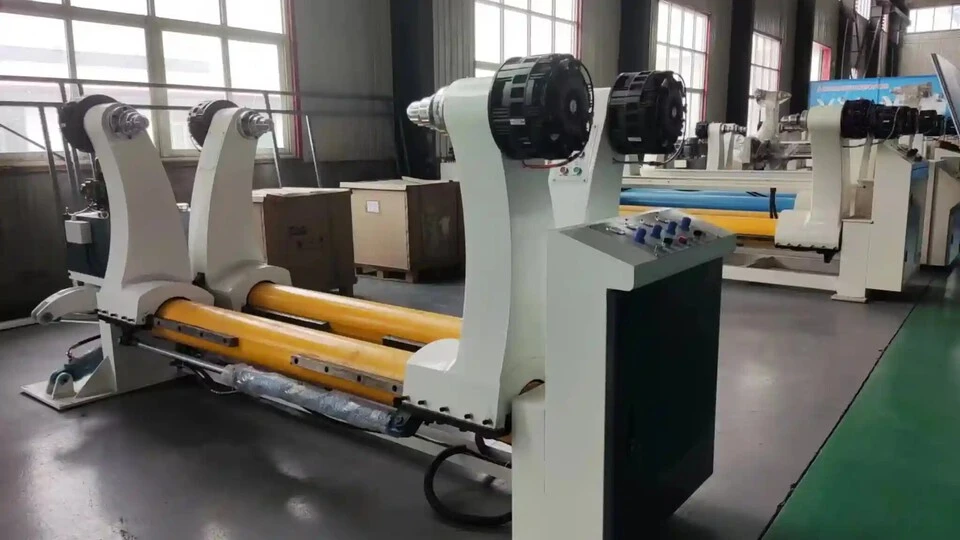

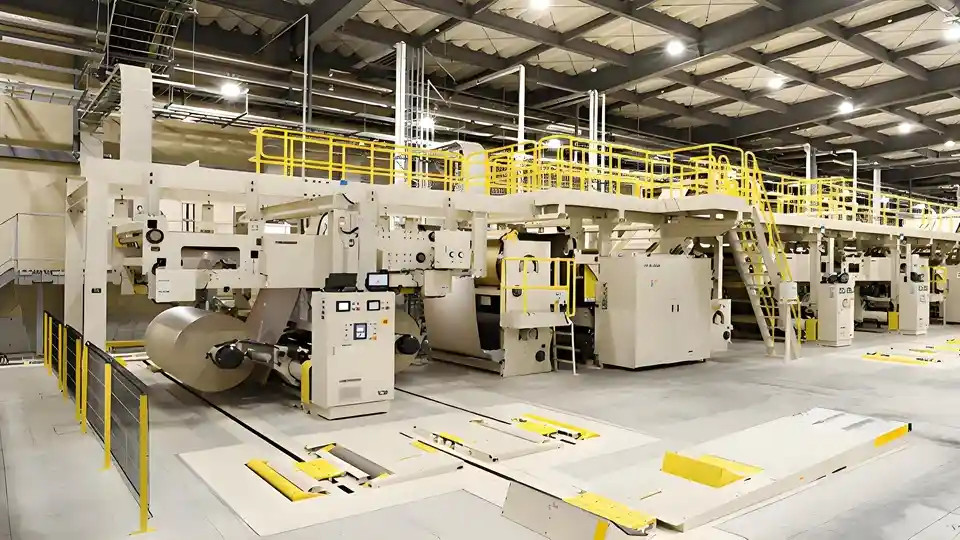

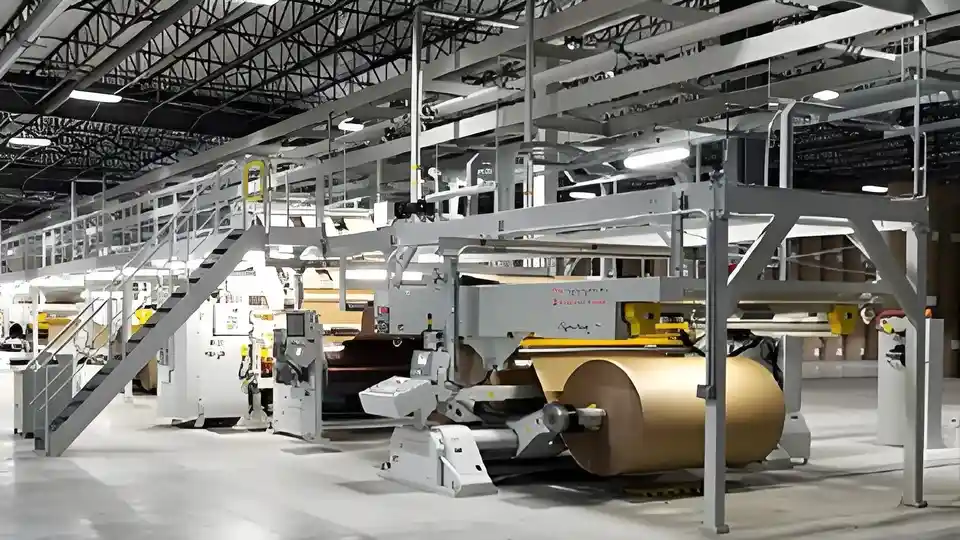

Mill Roll Stand Corrugated Cardboard Production Line

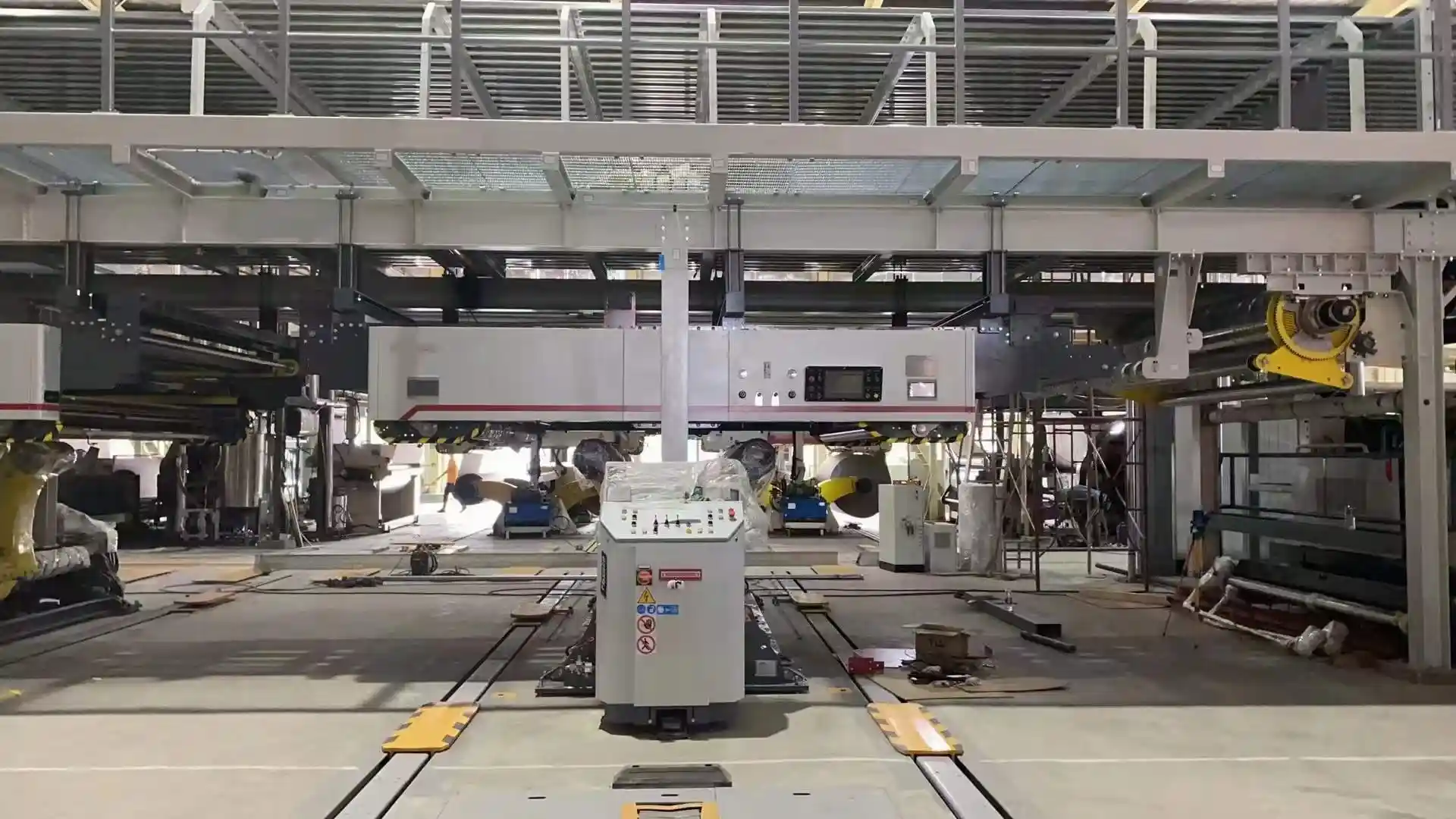

Mill Roll Stand auto splicer Corrugated Cardboard Production Line

Corrugated Cardboard Production Line Mill Roll Stand

Servo-Driven Mill Roll stand：

60-500gsm Ultra-Precision：Real-time tension adjustment via servo motor + PLC (22% less recycled paper breakage, 0.15% tolerance).
Dynamic Diameter Compensation：Seamless φ350-1800mm roll transition (3-5min roll change, no production stop).

Electric/Hydraulic Mill Roll stand：

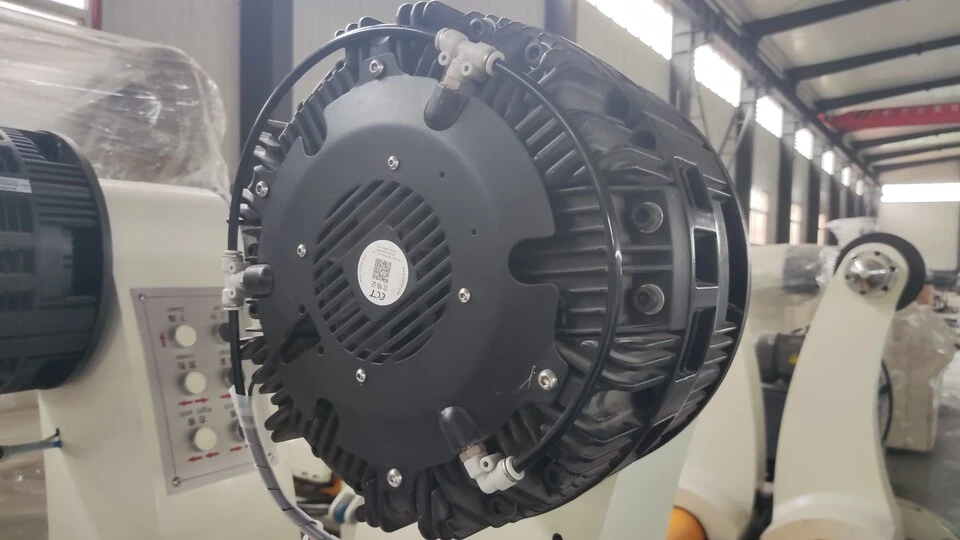

80-450gsm Versatility：Pneumatic brake tension control (±3% accuracy, 5-8min roll change, 80-300m/min speed).
Heavy-Duty Structure：Q345 steel frame, 50,000-hour SKF bearings (3-5 tons load).

Full-Line Automation：

Connects with auto splicers (15s parameter memory) and paper conveying systems (dual-station continuous feeding), reducing downtime by 50%.
Supports 3/5/7-layer corrugators (1200-2800mm width, PLC seamless communication for food/e-commerce packaging lines).

Servo-Driven Mill Roll Stand(High-End)

Precision Control：±1.5% tension (servo motor + PLC), 300-400m/min speed, 3-5min roll change.

Intelligent Features：IoT-enabled HMI (multi-language), auto-centering (±1mm), 99.9% feeding stability for 24/7 high-speed lines.

Load Capacity：3-5T (dual-station), φ350-1800mm diameter, 1200-2800mm width.

Hydraulic Shaftless Mill Roll stand(Heavy-Duty)

Robust Performance：5T single-station load, hydraulic lifting + electric drive, ±3% tension for 100-300m/min medium or high-speed lines.

Durability：Q345 steel frame, SKF bearings (50,000-hour life), 5-8min roll change.

Ideal For：Heavy paper rolls (450gsm+), industrial packaging, 24/7 continuous production.

Electric Shaftless Mill Roll stand(Light-Duty)

Compact & Efficient：2.5 T single-station load, direct-drive motor, ±3% tension for 60-100m/min small-scale lines.

Energy Saving：30% lower power consumption, high quality material frame, 6-10min roll change.

Ideal For：Common corrugated paper (weight 80 – 300g/m²), Small and Medium Enterprises

Technical Parameters

Drive Type	Technical Parameters	Application Scenarios	Advantage Description
*Servo-Driven* *Shaftless Mill Roll Stand*	– Tension：≤±1.5% (0.15% tolerance) – Speed：300-400m/min (stepless) – Load：3-5T (dual-station) – Roll Change：3-5 mins	– High-speed e-commerce/medical (24/7, 100+ rolls/day) – Heavy-duty 5T+ reels (φ350-1800mm, 450gsm+ paper)	– Precision & Speed：0.15% tension control, 50% faster than hydraulic,ideal for 24/7 high-speed lines. – Intelligence：IoT HMI (multi-language), predictive maintenance (12-month cycle).
*Hydraulic-Driven* *Shaftless Mill Roll Stand*	– Tension：±3% – Speed：100-300m/min – Load：5T (single-station) – Roll Change：5-8 mins	Medium-speed food/retail (mixed paper types, 40-80 rolls/day) – 450gsm+ heavy paper (stable feeding, 24/7 operation)	– Stability & Durability：Q345 steel frame, SKF bearings (50,000-hour life), CE-certified for global markets. – Cost-Efficiency：40% space saving, 15% lower power than electric, ROI in 12 months.
*Electric-Driven* *Shaftless Mill Roll Stand*	– Tension：±3% – Speed：60-100m/min – Load：2.5 T (single-station) – Roll Change：6-10 mins	– Small-scale local workshops (20-40 rolls/day, 300gsm- paper) – Occasional production (budget-friendly, low maintenance)	– Lightweight & Efficiency：2.5 T load, 30% energy saving (direct-drive motor), 30,000-hour NSK bearings (12-month maintenance). – Cost-Effective：50% lower investment than servo, ideal for startups/small batches.

Global Case Studies

European medium-sized packaging enterprises (daily production capacity of 500,000 ㎡)

Pain points :

Mid-speed production bottleneck：Traditional equipment took 8 minutes for roll change, causing 6.7 hours of downtime daily (50 changes/day), limiting capacity.
Tension inconsistency：±5% tension fluctuation led to 3% recycled paper (40% of use) breakage, costing $2,000 daily.
Space constraints：Only 60% space utilization in a 2,000㎡ factory, with cluttered layouts.

Solution :

Hydraulic Shaftless Mill Roll stand：3 sets of dual-station semi-auto Hydraulic Shaftless Mill Roll Stand (200-300m/min, ±3% tension, φ350-1500mm), optimizing space to 80% (saving 400㎡ for new lines).
Tension optimization：Dynamic tension balance for 40% recycled paper, reducing breakage.

Achievements :

Efficiency：Roll change time 5-8 minutes, downtime halved (3.3 hours/day), daily capacity +20% (600,000㎡).
Cost：Recycled paper breakage to 1%, daily savings $1,500 (annual $547,500).
Space：New line added, overall capacity +30%, ROI in 12 months.

Quote Now

Small Packaging Factory in Africa (Daily production capacity: 100,000㎡, Limited budget)

Pain points :

Budget limits：High upfront cost of premium systems, needing entry-level solutions.
Manual inefficiency：12-minute manual roll change (20/day), 4 hours downtime, 20% undercapacity (80,000㎡ daily).
Alignment errors：±2mm manual centering, 5% paper skew, increasing waste.

Solution :

Electric Shaftless Mill Roll stand：2 sets of single-station manual stands (≤200m/min, ±5% tension, φ350-1200mm), budget-friendly.
Training：Local training to reduce centering error to ±1mm, cutting skew to 2%.

Achievements :

Cost：40% lower initial investment, operational in 3 months.
Productivity：Downtime -30% (2.8 hours/day), daily capacity meets 100,000㎡ target.
Future：Upgrade-ready for semi-auto, avoiding re-investment for 2x capacity growth (2-year plan).

Quote Now

Large E-commerce Packaging Group in the Middle East (Daily production capacity of 1.5 million ㎡, operating 24/7)

Pain points :

Speed mismatch：Traditional ≤300m/min vs 400m/min line, 30% capacity loss.
Heavy-duty needs：φ2000mm (10 tons) reels vs 5-ton capacity, frequent roll changes (2/hour), high downtime.
Global compliance：Need CE/IP54 for 24/7 operation (≤10 hours annual downtime).

Solution :

High-end Servo Mill Roll stand：4 sets of four-station servo stands (300-400m/min, ±1.5% tension, 10 tons, IoT monitoring), IP54/FAG bearings (80,000 hours, 12-month maintenance).
Custom tension：Optimized for 400m/min and 10-ton loads, 30% recycled paper (0.5% breakage).

Achievements :

Speed：400m/min, daily capacity +20% (180,000㎡), meeting peak e-commerce demand.
Uptime：Annual downtime ≤8 hours, maintenance cost -60%, recycled paper loss -$250,000/year.
Compliance：CE-certified for global markets, IoT enables remote 24/7 monitoring, fitting Middle East operations.

Quote Now

What Sets Us Apart

Manufacturing Heritage

mill roll stand Packaging Machineryorrugated Cardboard Production Line

15 years of industrial accumulation

A 45,000㎡ factory with an annual output of over 800 units/sets.
Over 15 types of corrugated carton equipment, available for single machines / complete corrugated cardboard production lines

Technological Edge

R & D team

15 patents, ISO & CE-certified equipment. 20% lower energy consumption, customization supported

Source advantages

Cluster-based direct supply, competitive prices

With integrated supply chains and economies of scale in the cluster, we eliminate intermediate costs and pass savings directly to you.

Global Services

24-hour response

20+ specialized agents enable expedited spare parts delivery within 48 hours, augmented by remote diagnostics and lifelong technical assistance.

Quote Now

Full Lifecycle Service

g4f4f39fc9fed58915d50cfdbbc07458b1e9183d0f785eb3e709ff7eacf16ae0a36c8a516be73f786b184a14d0253c653 640 4922774

Solution Planning

Full-Process Diagnostic

20+ years experienced engineers for 1-on-1 consultation.
Free full-line equipment configuration plans (including energy consumption optimization calculations).

Quote Now

Flexible Manufacturing

Full-Parameter Customization

R&D team supports multi-scenario adaptation.
Load capacity/paper type/control interface customized on demand (backed by 15 patented technologies).

Quote Now

gb87c44d6ddafdb5007cc2e38c636377f7033369e4af76b8a0e2fd225368eaaf5d1c4c73f1eeaf3570faa37ed0918dca2 640 5382501

Rapid Global Delivery

Globalized Fulfillment

Direct supply from 45,000㎡ intelligent factory (800+ units annual capacity).
7-day delivery for standard models, 45-day delivery for customized equipment (including CE certification customs documents).

Quote Now

Long-Term Maintenance

24/7 Response Network

Multilingual after-sales team (CN/EN/ES) with 5-minute quick response.
20+ specialized agents enable expedited spare parts delivery within 48 hours, augmented by remote diagnostics and lifelong technical assistance.

Quote Now

Where It Works

Application Scenarios of Paper Mill Roll stand

Large-Scale Continuous Production

24/7 Non-Stop Operation

Dual-station servo Mill Roll Stand (300-400m/min, 3-5min roll change, φ350-2000mm, 5-8 tons) ensure 24/7 output for large carton factories (e.g., 1M+ ㎡ daily).
±1.5% tension control for 60-500gsm paper, 99.9% stability, 20% higher recycled paper yield (92% vs 85% industry avg).

E-Commerce Rapid Roll Switch

Peak Demand Efficiency

Hydraulic Shaftless Mill Roll stand (200-300m/min, 5-8min roll change, φ350-1500mm) handle 500+ roll changes daily (15s parameter memory for 80-450gsm paper, 30s thin-thick switch).
Reduces downtime by 50% (vs manual), matching e-commerce packaging peaks (e.g., 11.11, Black Friday).

Recycled Paper Stability

Low-Tension Recycled Paper Feeding

Dynamic tension balance (15% breakage reduction, ±1.5% tension) for 40-500gsm recycled paper (60% use), 0.9% breakage (vs 4% traditional, saving $350k/year as in SE Asia case).
IoT monitoring for real-time adjustment, ideal for 3/5-layer green packaging lines.

Mid-Scale Multi-Variety

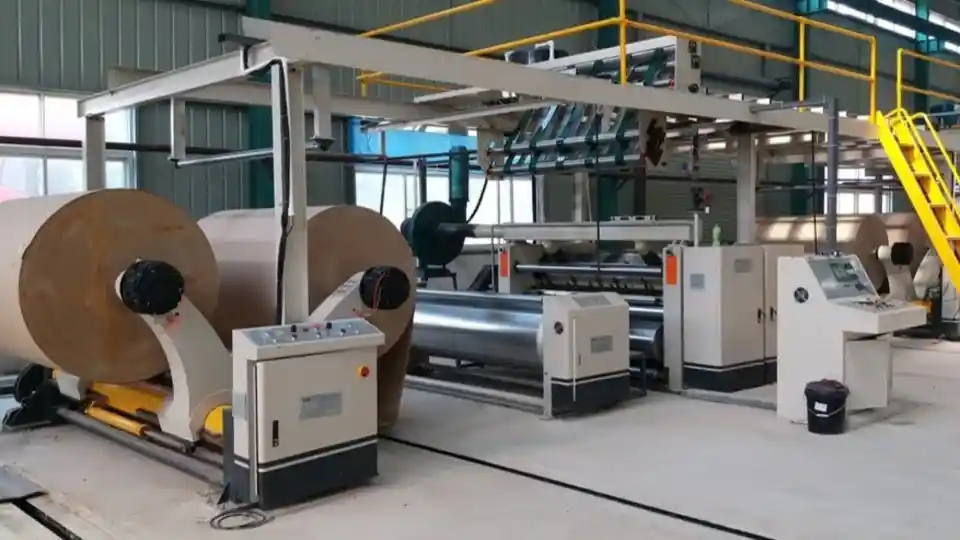

orrugated Cardboard Production Line mill-roll-stand

Flexible Medium-Scale Production

Hydraulic Shaftless Mill Roll Stand (200-300m/min, ±3% tension, φ350-1500mm) support 100-400gsm mixed production (food, retail), 40% space saving (compact design, fits 2k-5k ㎡ factories).
6-8min roll change, CE-certified, 12-month maintenance (2x longer than entry-level, reducing downtime by 30%).

Small-Scale Budget-Friendly

Entry-Level for Small Workshops

Hydraulic/Electric Mill Roll stand (≤200m/min, ±5% tension, φ350-1200mm, 3-5 tons) offer 30% lower cost, 8-12min roll change, 3-month maintenance (ideal for 50k-100k ㎡ daily, e.g., local African workshops).
CE-certified, budget-friendly, ROI in 12 months (proven by 20% capacity boost in small factories).

Quote Now

Our Certificates

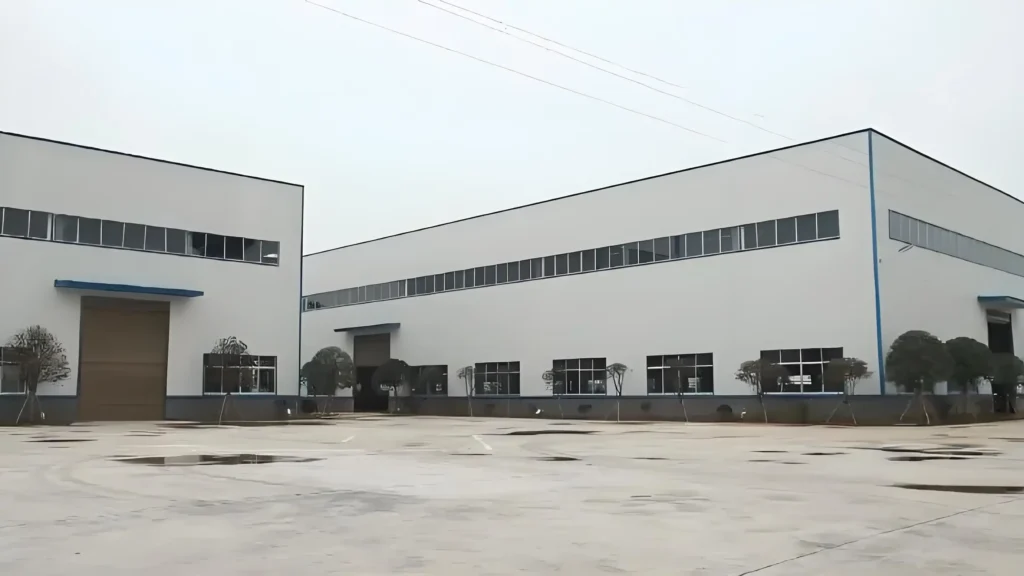

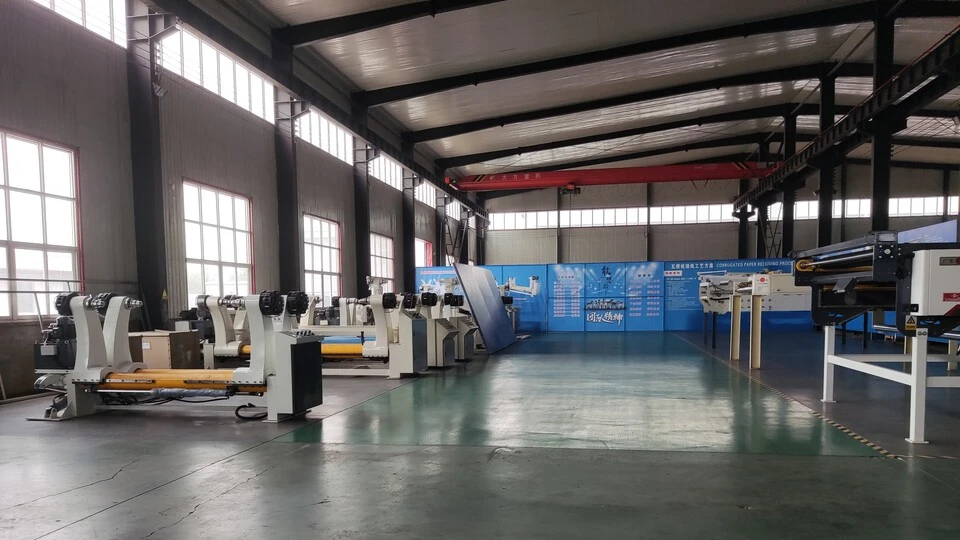

Our Factory Insight

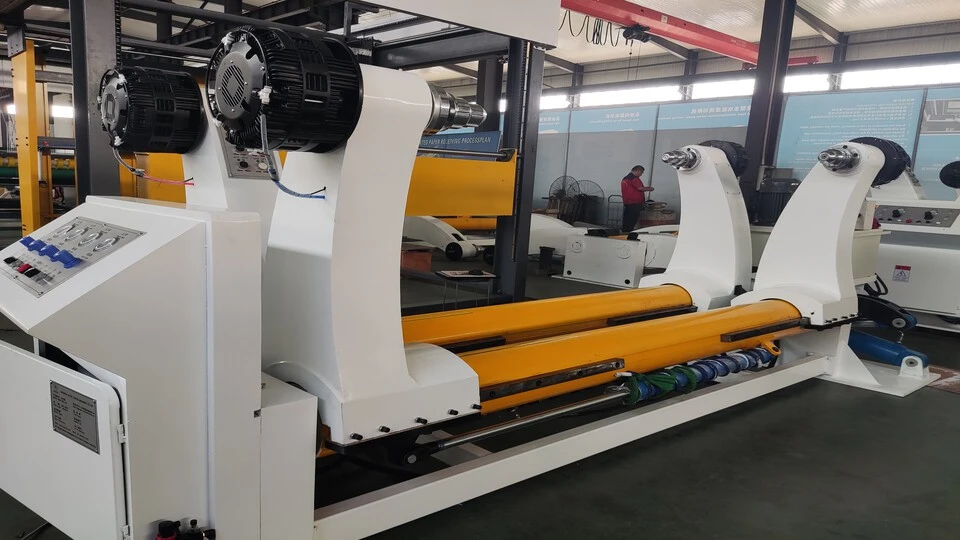

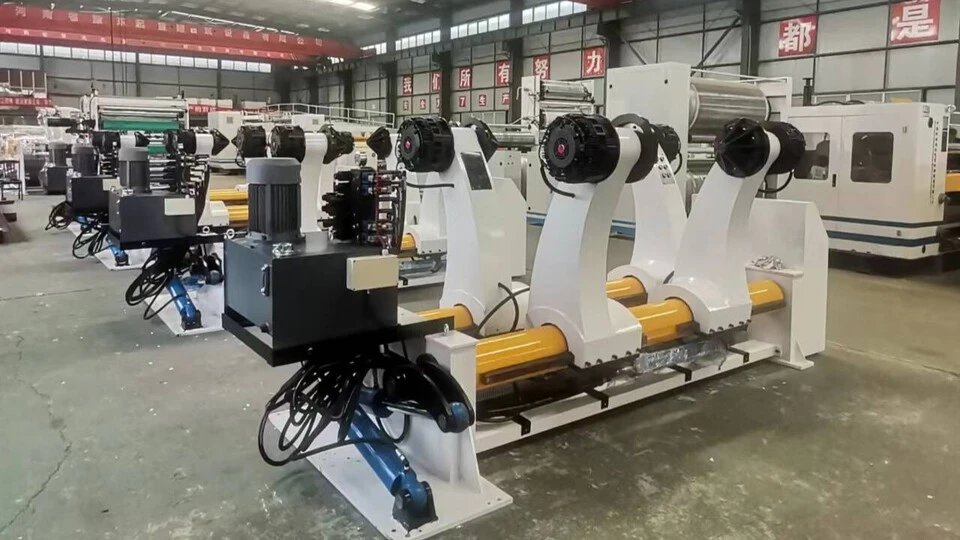

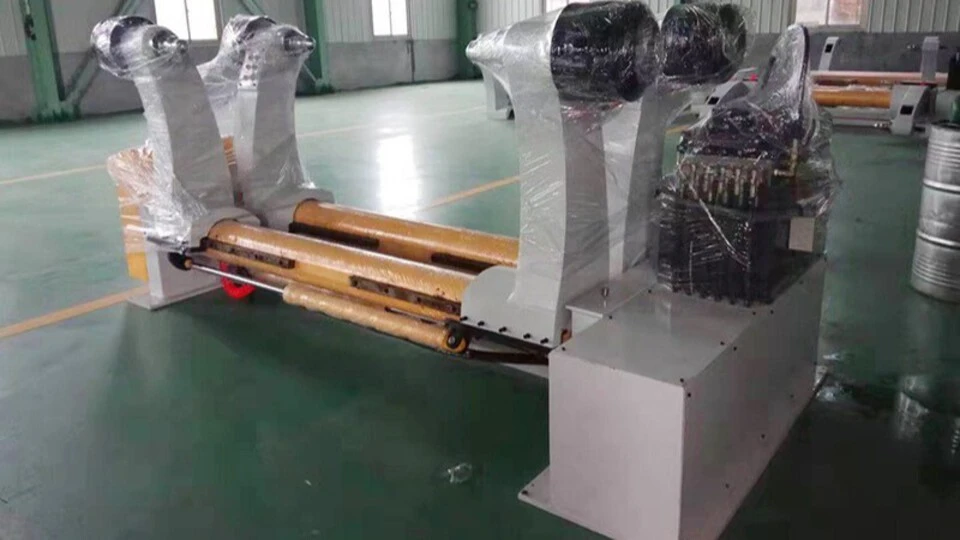

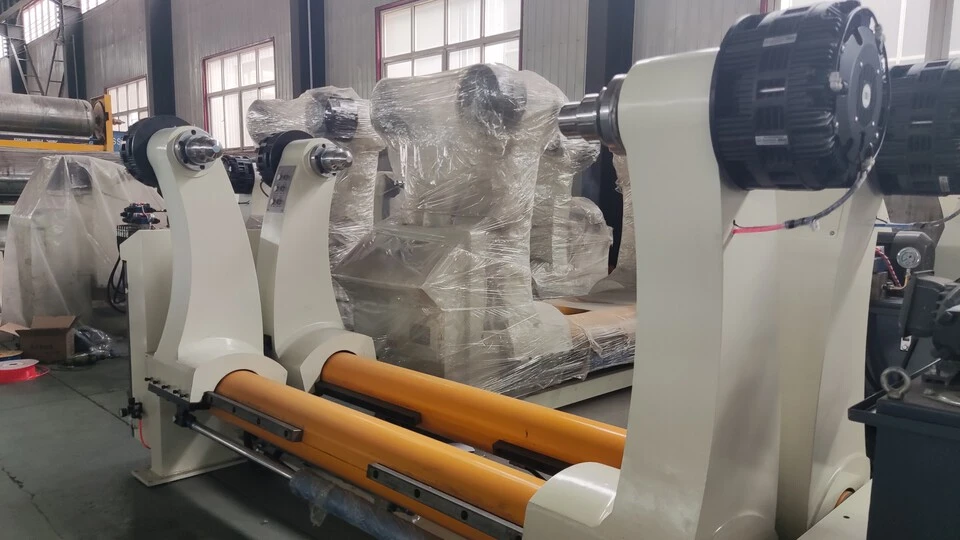

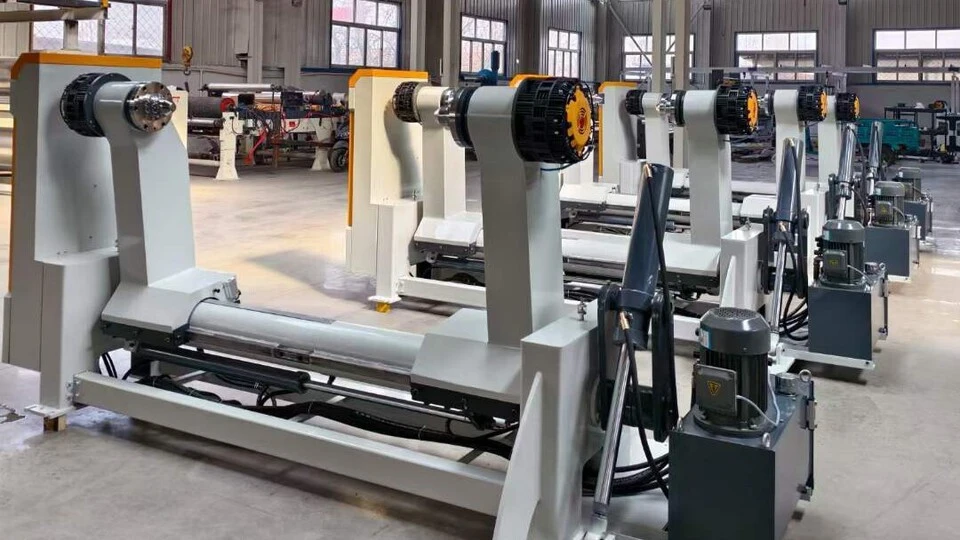

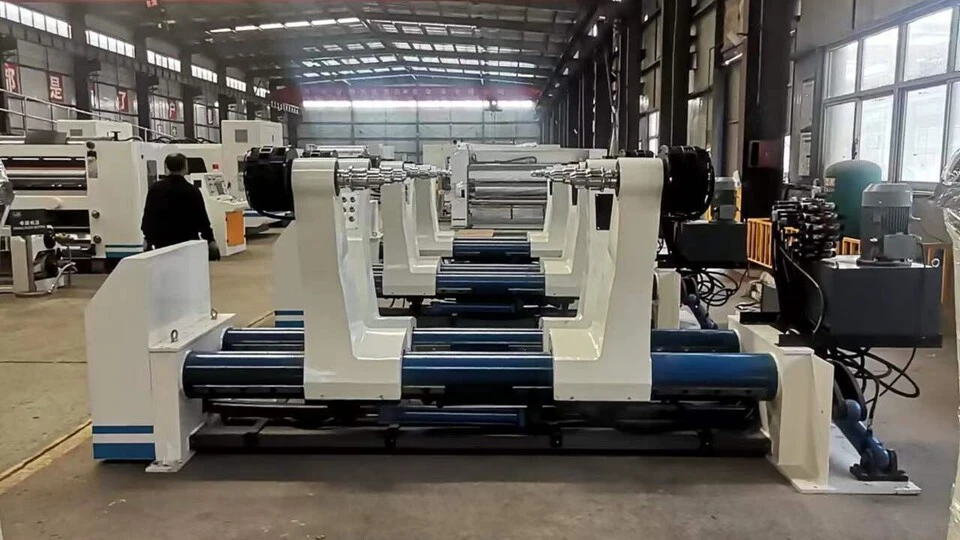

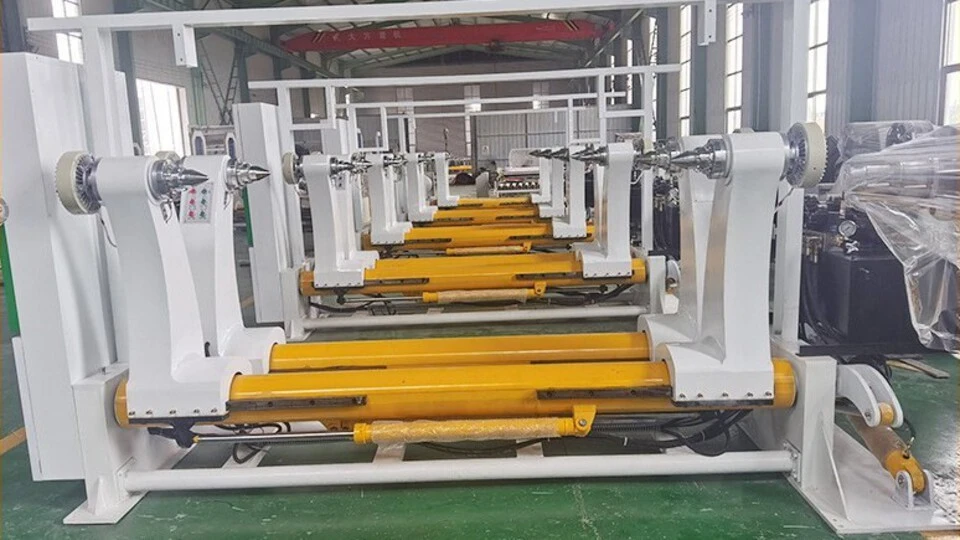

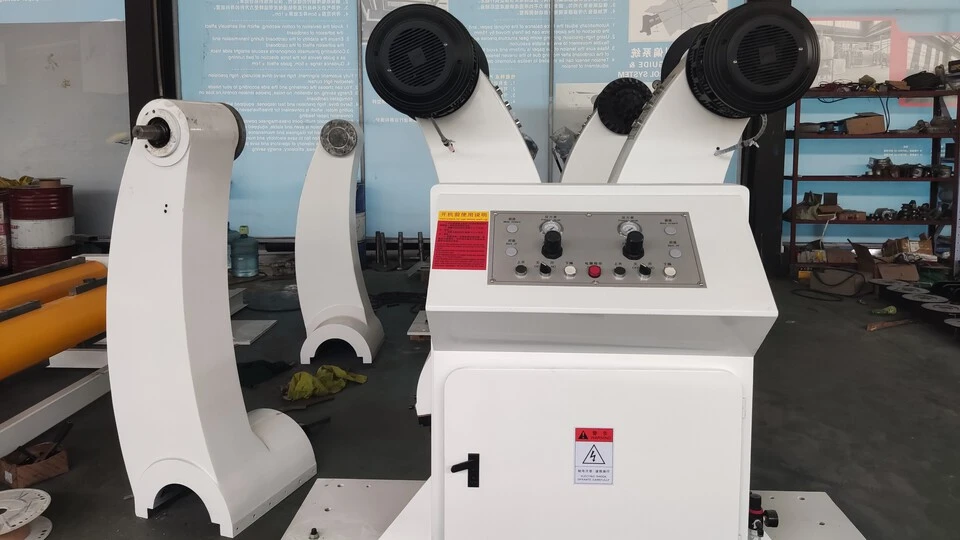

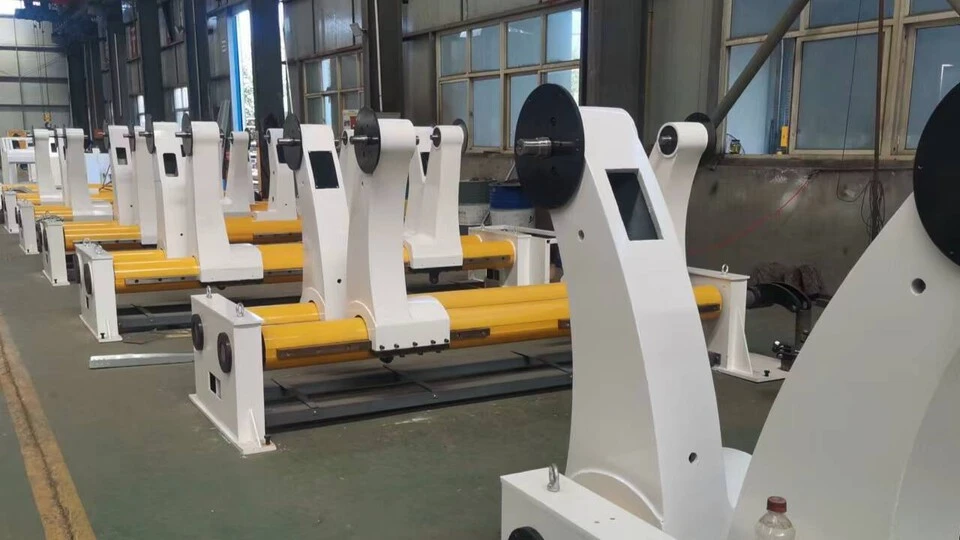

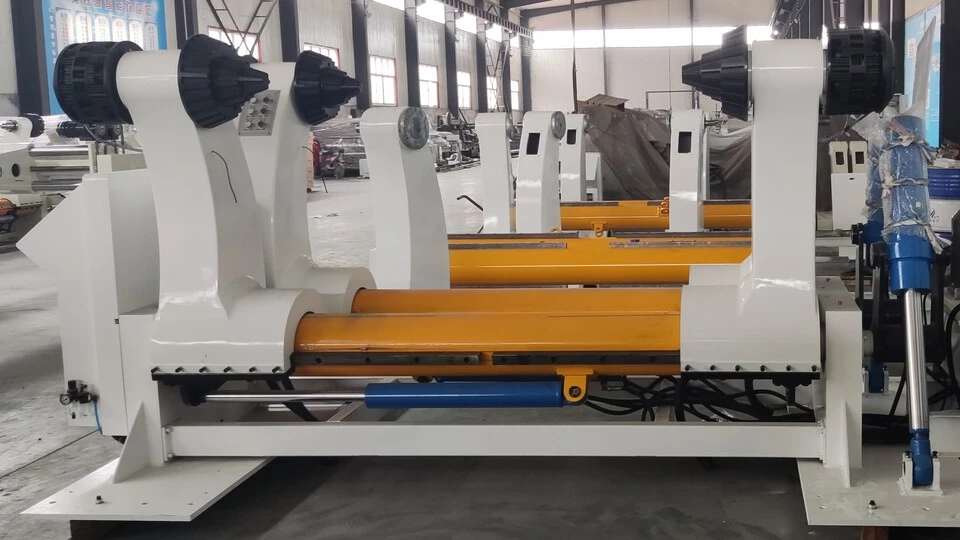

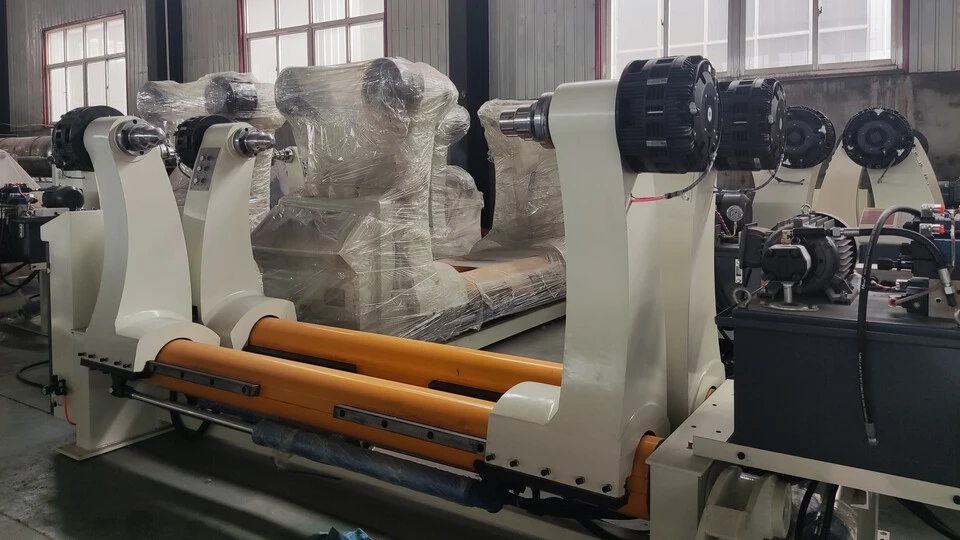

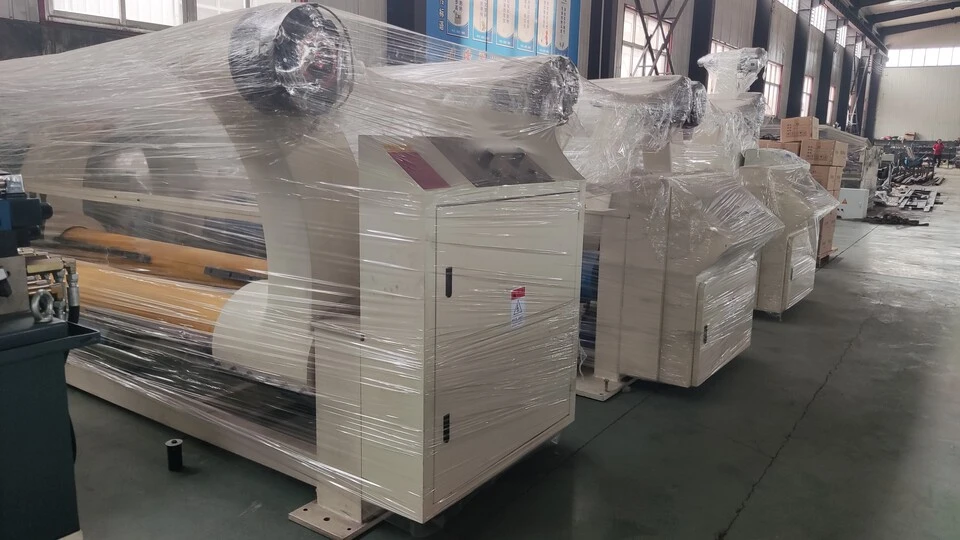

Electric Shaftless Mill Roll stand

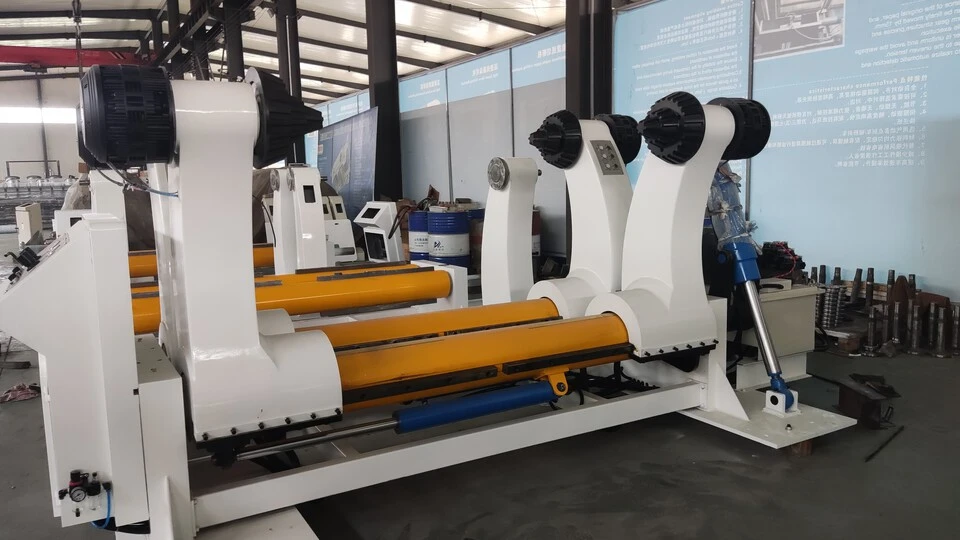

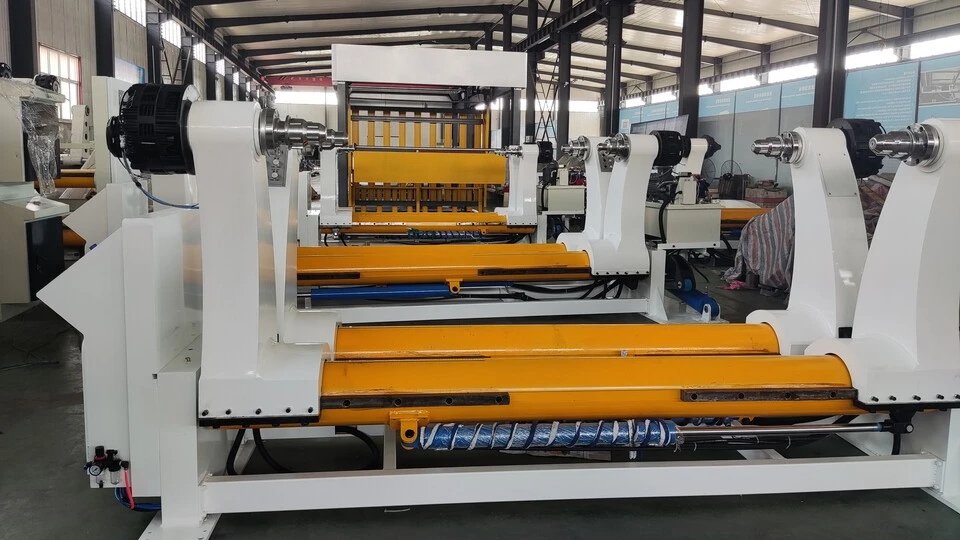

Hydraulic Shaftless Mill Roll stand

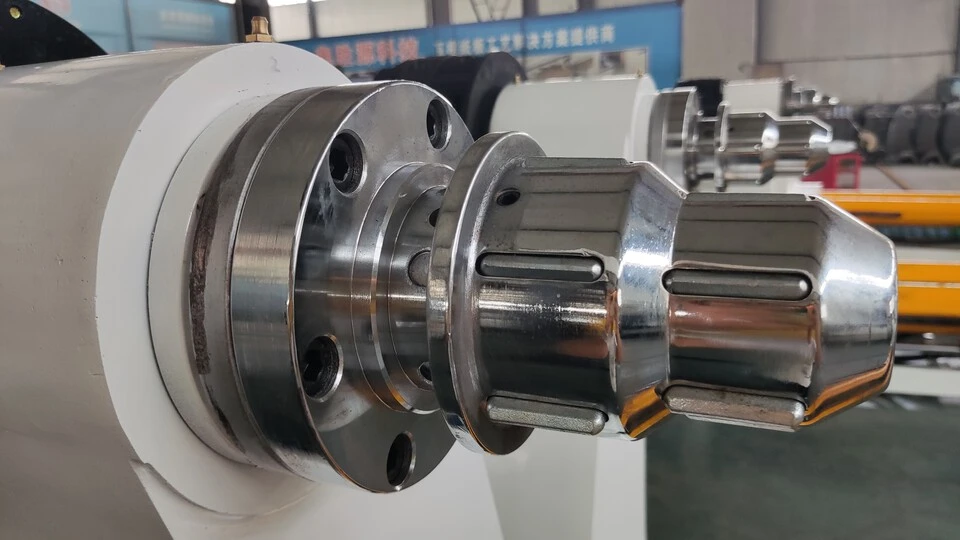

Corrugated Cardboard Production Line Mill Roll Stand
Hydraulic/Electric Mill Roll stand
Hydraulic Mill Roll stand
Electric Mill Roll stand

Quote Now
